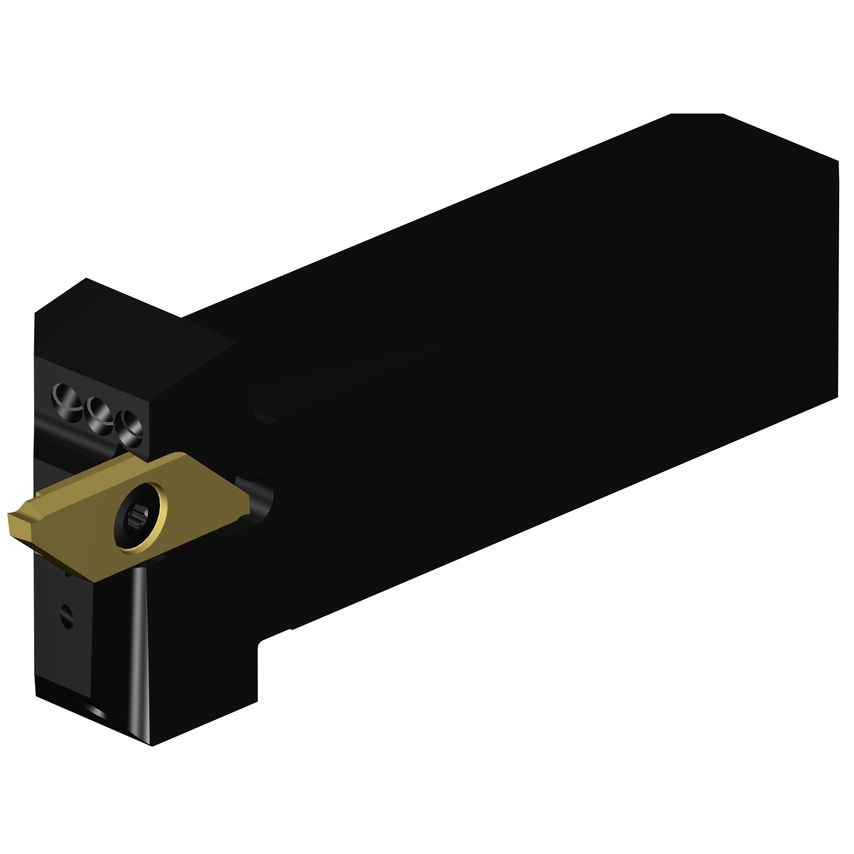

CoroCut XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, backturning and threading applications. The extremely sharp cutting edges perform best at low feeds.Features & Benefits- External turning, small diameters- Turning, threading, parting and grooving- Close tolerances- All inserts fit into the same tool holder- Internal grooving at very small diameters- Designed to maintain the tool holder intact in case of insert breakage.Application- Parting-off in sliding head machines- Precision grooving at low speeds and feeds
| Coolant Exit Style | 7 |
| Workpiece Side Body Angle | 0\u00b0 |
| Coolant Entry Style | 3 |
| Functional Length | 55mm |
| Weight | 0.27kg |
| Shank Width | 19.05mm |
| Maximum Overhang | 44.05mm |
| CoroPak | 115 |
| Maximum Cutting Depth | 7.25mm |
| MFR Part No. | 7048263 |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
