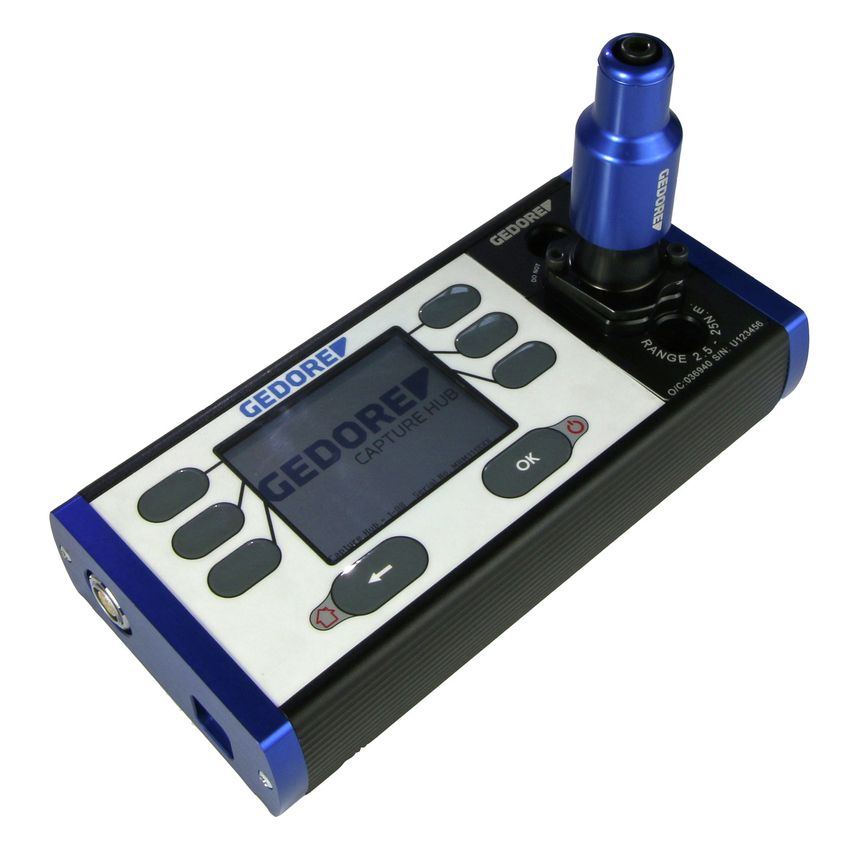

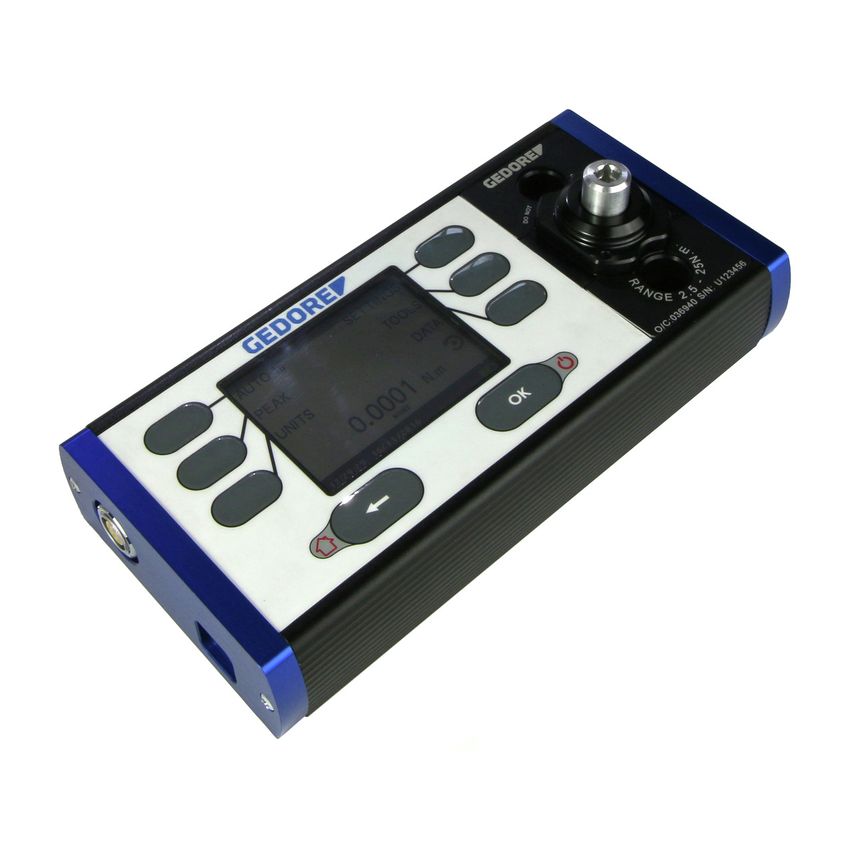

Electronic torsion test device 0.2-2 Nm 036920

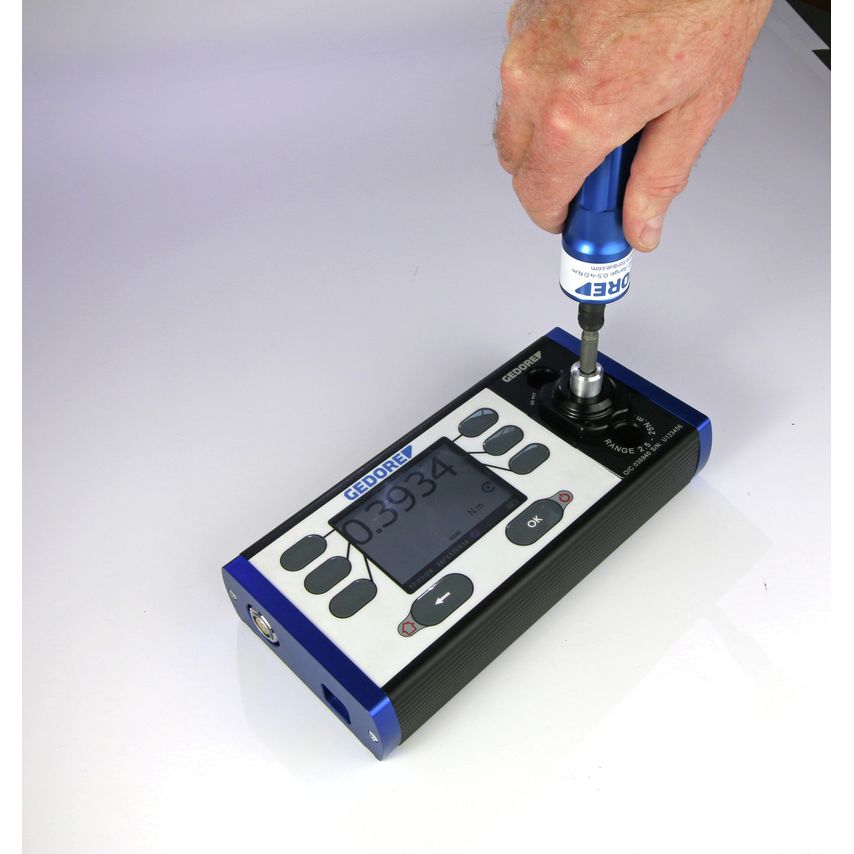

Digital torque tester for testing torque wrenches and torque screwdrivers Light and robust thanks to the aluminum basic housing, horizontal and vertical mounting possible 4 models in the range of 0.1-25 Nm With 1/4 "square socket (CH25 with 3/8") Measuring tolerance +/- 1 % for all readings 4 measurement modes: sliding value display (track), breakpoint detection (first peak), peak value measurement (peak), screwdriver test Including screw joint simulator attachment for testing screwdrivers Switchable units N m, cN m, lbf ft, lbf in, ozf in 50 test sequences can be programmed 2000 measured values can be saved Clear and high-contrast TFT display Expandable by an additional capture sensor (connection socket available) Powerful lithium-ion battery for Line Side mains-independent work Data output and mains operation via USB connection Optional: PC evaluation software "Capture Manager" (2908778) Scope of delivery: Capture Hub Screw joint simulator USB cable Power supply unit with Euro plug Operating instructions Test certificate Stable plastic case with inlay

Torque Measurement Range	0.2 - 2Nm
Product Type	Torque Testing Appliances
Maximum Torque	2 N\u00b7mNm
Width	110mm
Length	200mm
Height	50mm
Material	Aluminium Housing
Operating Direction	Right
Interface	USB
Minimum Torque	0.2 N\u00b7mNm
Accuracy	+/- 1 %
