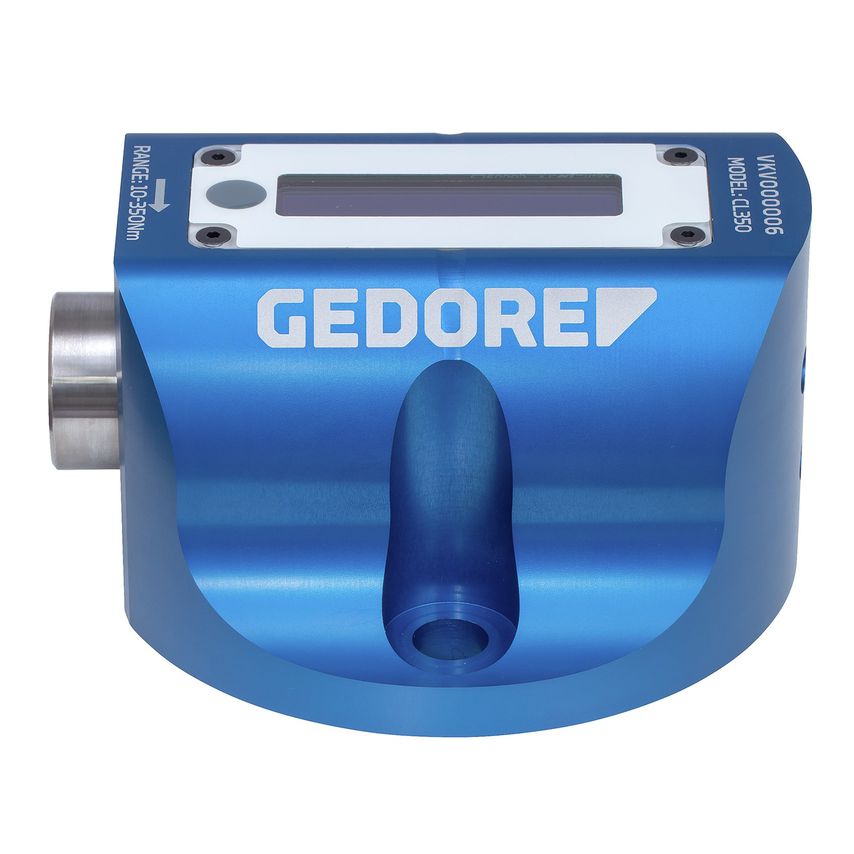

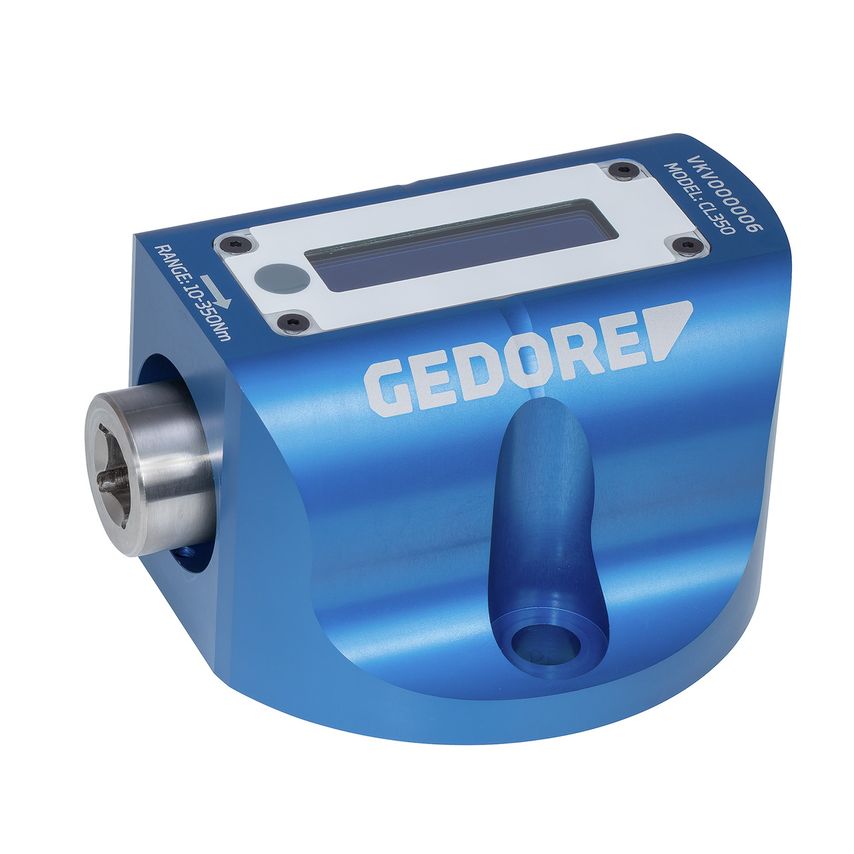

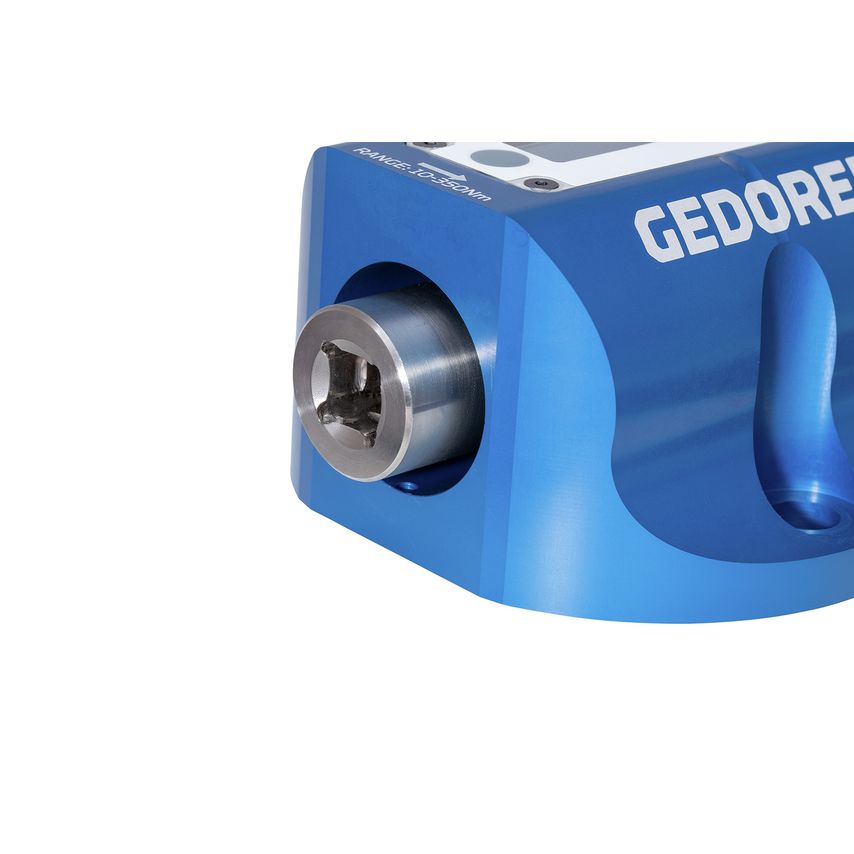

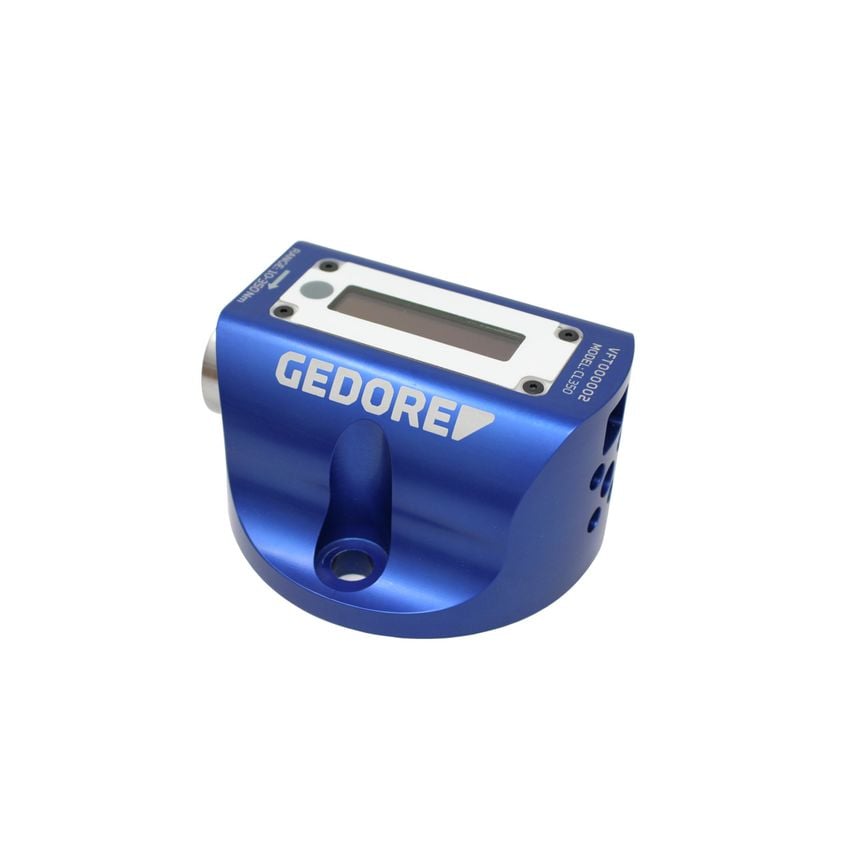

Capture Lite 1 NM 038110

Digital torque tester for testing torque wrenches and torque screwdrivers Light and robust due to aluminium basic housing 5 models in the range from 0.02 Nm to 350 Nm With 1/4", 3/8", 1/2" square mount (CL1 and CL10H with 1/4" hexagonal shaft) Measuring tolerance +/- 1 % for all readings 3 measuring modes: floating value display (track), kink point detection (first peak), peak value measurement (peak) Easy handling due to 1-button operation (measuring mode, unit) Switchable between Nm, lbf-ft and lbf-in Optimal readability due to single-line well illuminated OLED display Autostart function when a torque tool is inserted Auto-sleep mode when not in use Easy mounting on the table or on the wall Power supply and data output via USB connection Scope of delivery: Capture Lite tester USB connection cable Adapter (depending on model) Operating instructions Test certificate Stable plastic case with inlay

Measurement Accuracy	+/- 1 %
Height	70mm
Torque Range	0.02 - 1Nm
Operating Direction	Right
Torque Measurement Range	0.02 N\u00b7m - 1 N\u00b7m
Length	135mm
Minimum Torque	0.02 N\u00b7mNm
Product Type	Torque Testing Appliances
Material	Aluminium Housing
Width	120mm
Interface	USB
Maximum Torque	1 N\u00b7mNm
