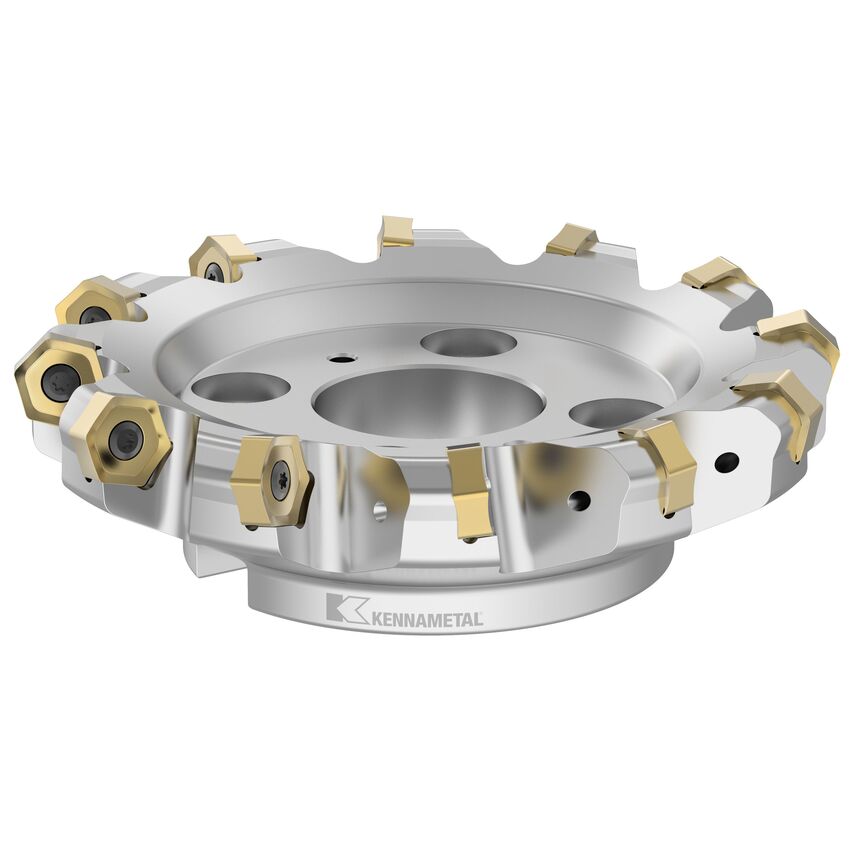

Shell MillsDodeka MAX 45
| Milling Application | Face Mill |
| Insert Shape | H-Hexagon 120 |
| MFR Part No. | 4057579 |
| Adapter Type Machine Side | Shell Mill |
| Clamp Type | Screw Clamping |
| Body Material | Steel |
| Body Diameter Max | 113.854mm |
| Unit Measured | Imperial |
| Maximum Cutting Diameter | 118.93mm |
| Hub Diameter | 73.02mm | 73.0200mm |
| Max. Depth of Cut | 8.0000mm |
| Center Cutting Tool | No Center Cutting |
| Number of Flutes | 5 |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Number of Inserts | 5 |
