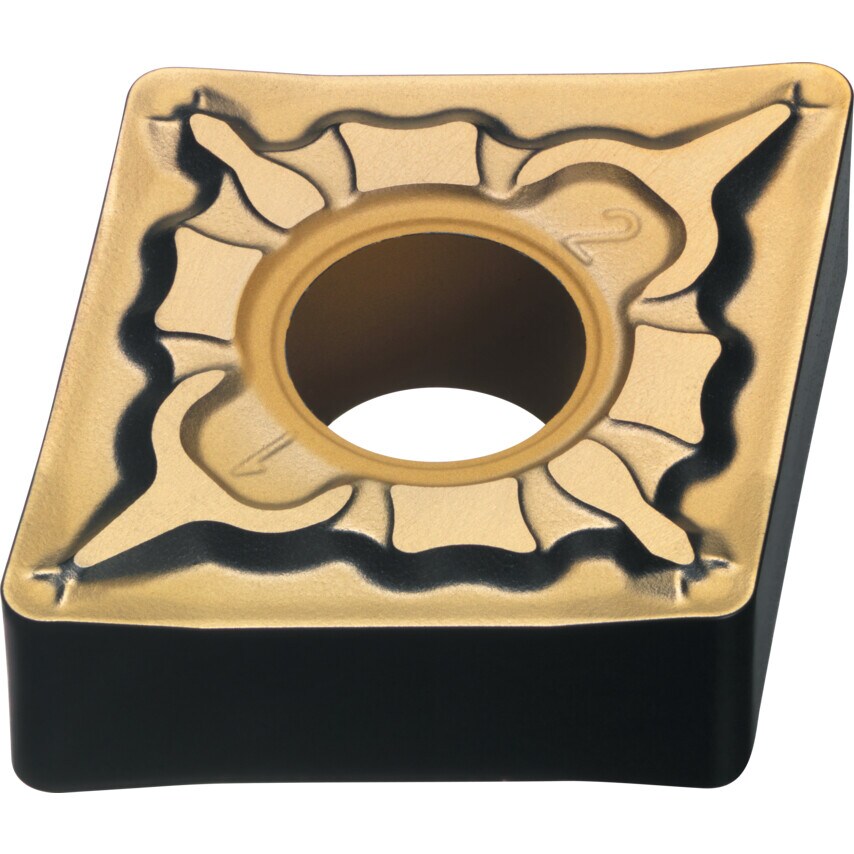

CNMG Turning Inserts
80 Rhombic Insert
MC6025 - ISO P15 - P25 2-in-1 technology provides excellent heat and wear resistancewhich helps prevent crater wear. The smooth coating layer combined with microscopic TiCN coating ensures better surface finish and long, consistent tool life. Suitable for high speed and high ffficiency machining.
| Clearance Angle | 0\u00b0 |
| Material | Carbide |
| Pack Quantity | 1 |
| Cutting Edge Length | 12mm |
| Inscribed Circle | 12.7mm |
| ISO Designation | CNMG 120404-LP |
| Insert Size | 120404 |
| ISO Cut | P15 to P25 |
| Insert Style | CNMG |
| ISO Category | P |
| Chipbreaker | LP |
| Thickness | 4.76mm |
| Manufacturer Grade | MC6025 |
| Shape | 80\u00b0 Rhombic |
| ISO Category Grade | P |
| Product Type | Inserts |
| Material Application | Steels |
| Finish/Coating | Al2O3+TiCN |
| Cutting Direction | Neutral |
| Corner Radius | 0.4 |
| MFR Part No. | 90030845 |
