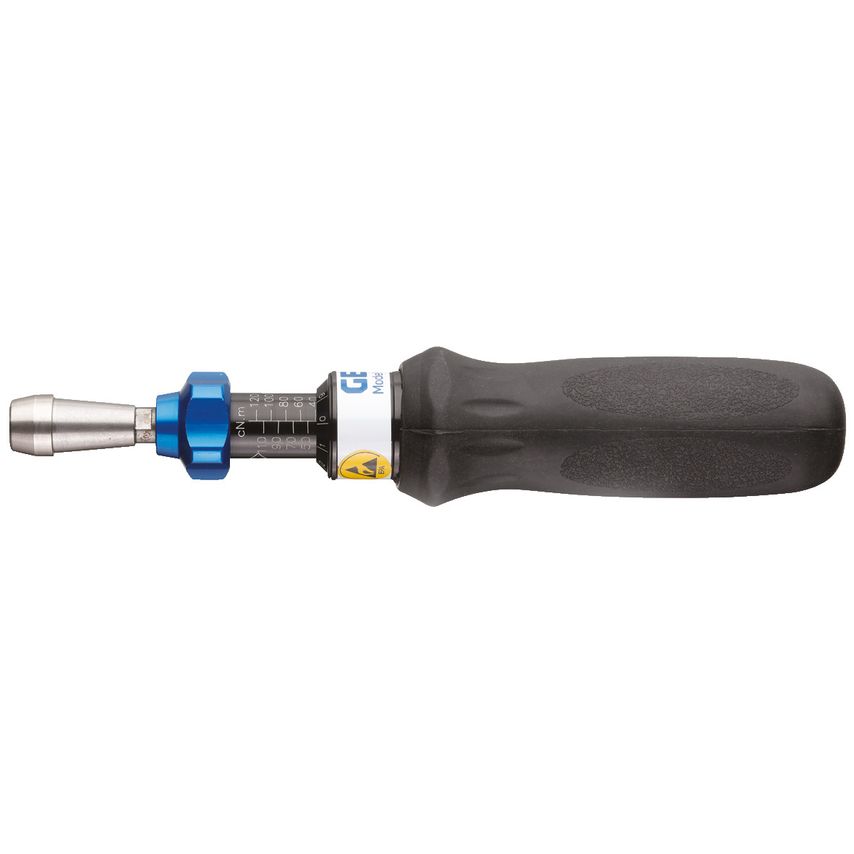

Torque screwdriver S 1/4" 1.2-6 Nm

Use: Controlled screw tightening in the range of 1.2 - 6 N m High-speed, controlled tightening enables serial production Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control Features: Adjustable torque screwdriver - with scale With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3 With adaptor also suitable for 1/4" square drive sockets as per DIN 3124 Working accuracy: +/- 6 % tolerance of set torque Acc. to DIN EN ISO 6789, traceable to national standards Precision radial ball clutch and cam design for controlled bi-directional tightening Precision mechanism slips very noticeably when the pre-set value is achieved Automatic resetting to the starting position "Positive-Lock" system automatically fixes the set value preventing it from wrong setting 4 models in the range 0,08 Nm to 9 Nm Micrometre scale graduation: 1 cNm resp. 0,1 Nm EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery: Torque wrench type QSN 1/4" square/hexagon drive adaptor (No. 757-20) Model No. QSN 600 FH / QSN 900 FH with additional T-handle for easier work Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging

Height	38mm
Maximum Torque	6 N\u00b7mNm
Trigger Mechanism	Friction clutch
Product Type	Torque Screwdrivers
Tightening Direction	Left and right
VDE certified	No
Drive Type	Bitholder
Minimum Torque	1 N\u00b7mNm
Standards Met	DIN EN ISO 6789-2
Torque Range	1 - 6Nm
Precision	+/- 6 %
Length	196mm
