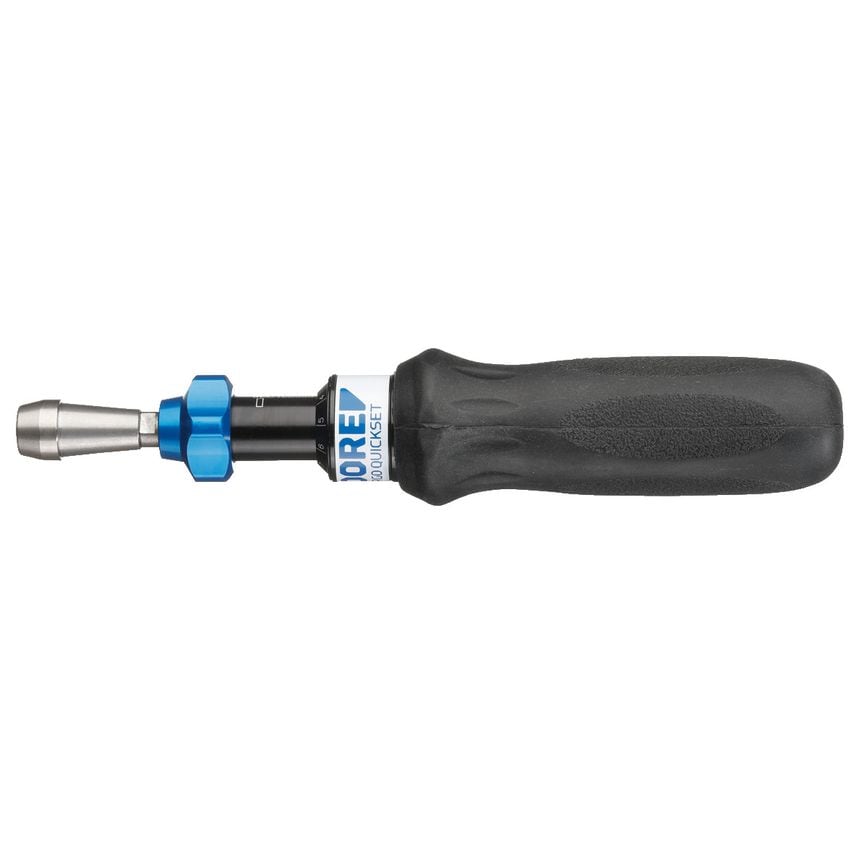

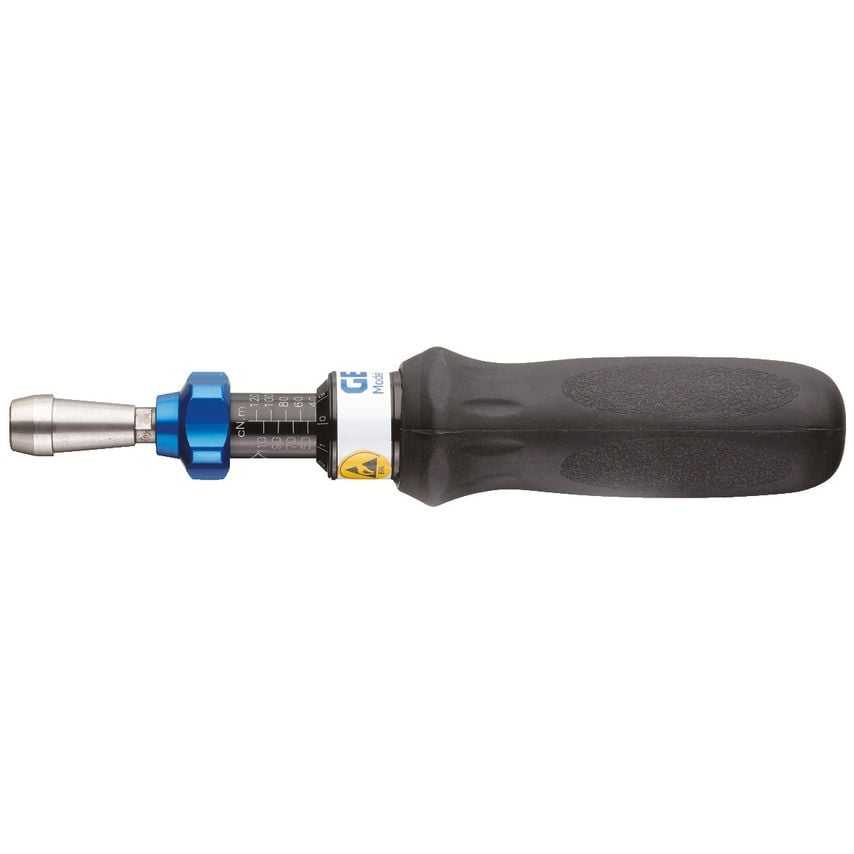

Torque screwdriver 1/4" 30-80 lbf.in 060520

Use: Controlled screw tightening in the range of 30 - 80 lbf in High-speed, controlled tightening enables serial production Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control Features: Adjustable torque screwdriver - with scale With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3 With adaptor also suitable for 1/4" square drive sockets as per DIN 3124 Working accuracy: +/- 6 % tolerance of set torque Acc. to DIN EN ISO 6789, traceable to national standards Precision radial ball clutch and cam design for controlled bi-directional tightening Precision mechanism slips very noticeably when the pre-set value is achieved Automatic resetting to the starting position "Positive-Lock" system automatically fixes the set value preventing it from wrong setting 4 models ranging from 0.8 lbf in to 80 lbf in Micrometer graduation: 1 lbf in or 0.1 lbf in EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery: Torque wrench type QSA 1/4" square/hexagon drive adaptor (no. 757-20) Model No. QSN 600 FH / QSN 900 FH with additional T-handle for easier work Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging

Graduation	1lbf/in
Trigger Mechanism	Friction clutch
Standards Met	DIN EN ISO 6789-2
VDE certified	No
Length	196mm
Product Type	Torque Screwdrivers
Height	38mm
Tightening Direction	Left and right
Drive Type	Bitholder
Precision	+/- 6 %
