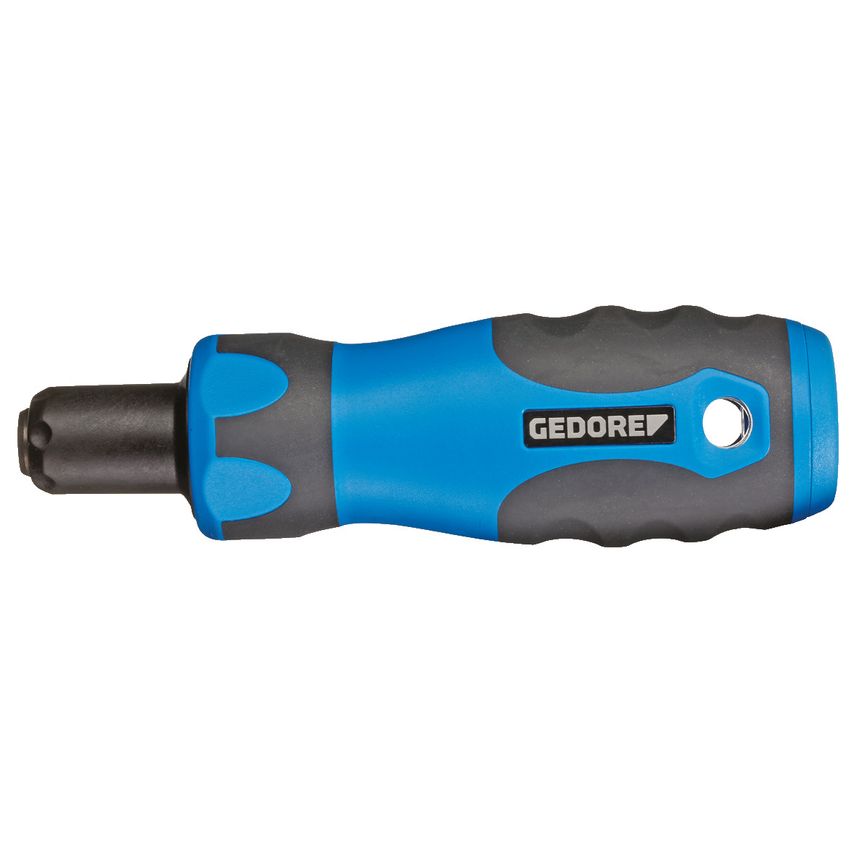

Torque screwdriver FS 1/4" 2.5-13.5 Nm

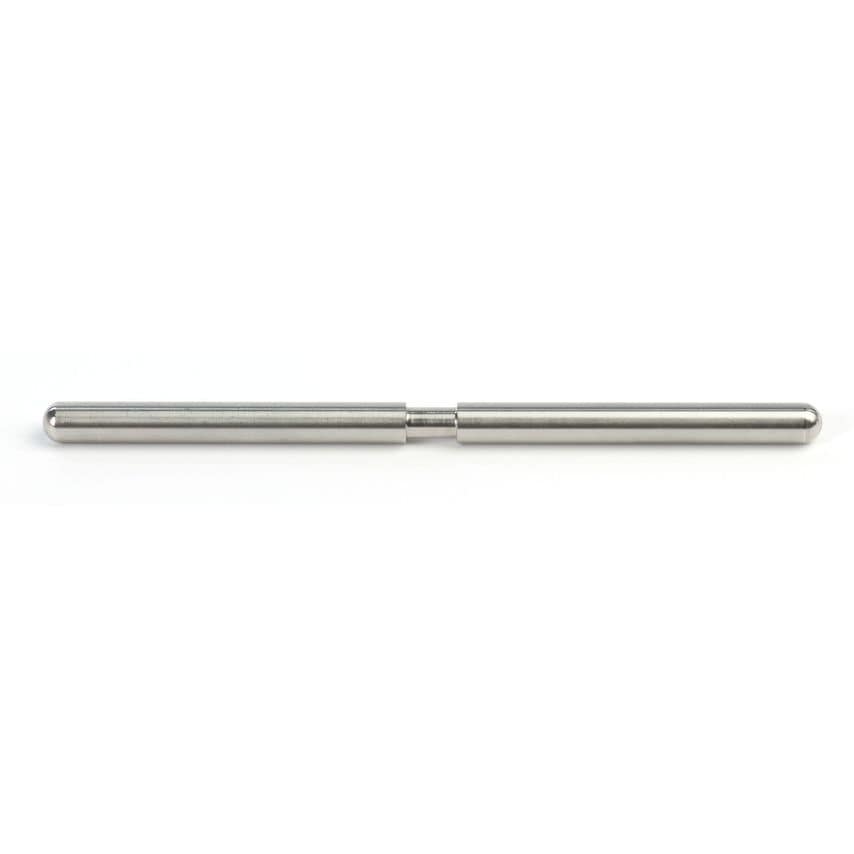

Use: Controlled screw tightening in the range of 2.5 - 13.5 Nm Serial manufacture with constant tightening value Electronic industry, precision mechanics and industrial manufacturing Features: Pre-set torque screwdriver - without scale With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3 Classified according to DIN EN ISO 6789:2003 Type II Class F, with a traceable factory certificate. Calibrated to a permitted +/- 6 % deviation of the set torque Precision radial ball clutch and cam design for controlled bi-directional tightening Precision mechanism slips very noticeably when the pre-set value is achieved Automatic resetting to the starting position Fatigue-free working due to an ergonomic hand grip and a smoth tool reset action Calibration stickers can be easily applied to the purpose designed nose The pre-setting can be made at the factory or by the user on suitable torque testers If ordering, please specify the Nm value - if a fixed factory pre-setting is desired (price on request) Scope of delivery: Torque screwdriver Type PGNP FS Models 4.5 and 13.5 with additional removable T-bar for ease of use Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging

Minimum Torque	2.5 N\u00b7mNm | 250cNm
Trigger Mechanism	Friction clutch
Maximum Torque	13.5 N\u00b7mNm | 1350cNm
Precision	+/- 6 %
Product Type	Torque Screwdrivers
Torque Range	2.5 - 13.5Nm | 250 -1350cNm
Standards Met	DIN EN ISO 6789-2
Tightening Direction	Left and right
Height	37
Drive Type	Bitholder
Length	140mm
VDE certified	No
