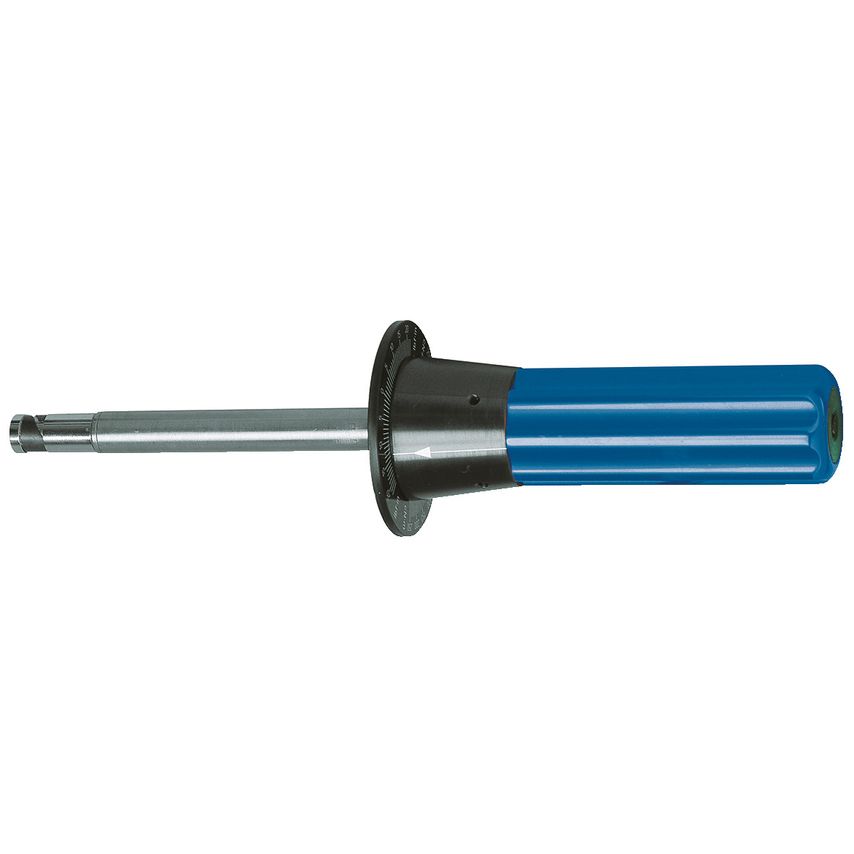

Use: In the torque range 0.1 - 5.0 Nm For test and installation work in the electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control Features: Dial-indicating torque and test screwdriver - with dual scale (cNm/ozfin/lbfin) With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3 With adaptor also suitable for 1/4" square drive sockets as per DIN 3124 Display accuracy: +/- 6 % tolerance of the indicated value Acc. to DIN EN ISO 6789, traceable to national standards For controlled bi-directional tightening With slave-pointer function For locking of maximum values / maximum-value display 4 models in the range 0,1 Nm to 5,0 Nm Lightweight construction by virtue of anodised aluminium handgrips EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery: Torque test screwdriver type TT 1/4" square/hexagon drive adaptor (no. 757-20) Model No. TT 250 FH; TT 500 FH with additional T-handle for easier work Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging
| Standards Met | DIN EN ISO 6789-2 |
| Maximum Torque | 2.5 N\u00b7mNm | 250cNm |
| VDE certified | No |
| Precision | +/- 6 % |
| Torque Range | 0.5 - 2.5Nm |
| Graduation | 0.5lbf/in | 10cNm |
| Minimum Torque | 0.5 N\u00b7mNm | 50cNm |
| Height | 64mm |
| Length | 250mm |
| Drive Type | Bitholder |
| Product Type | Torque Screwdrivers |
| Tightening Direction | Left and right |
