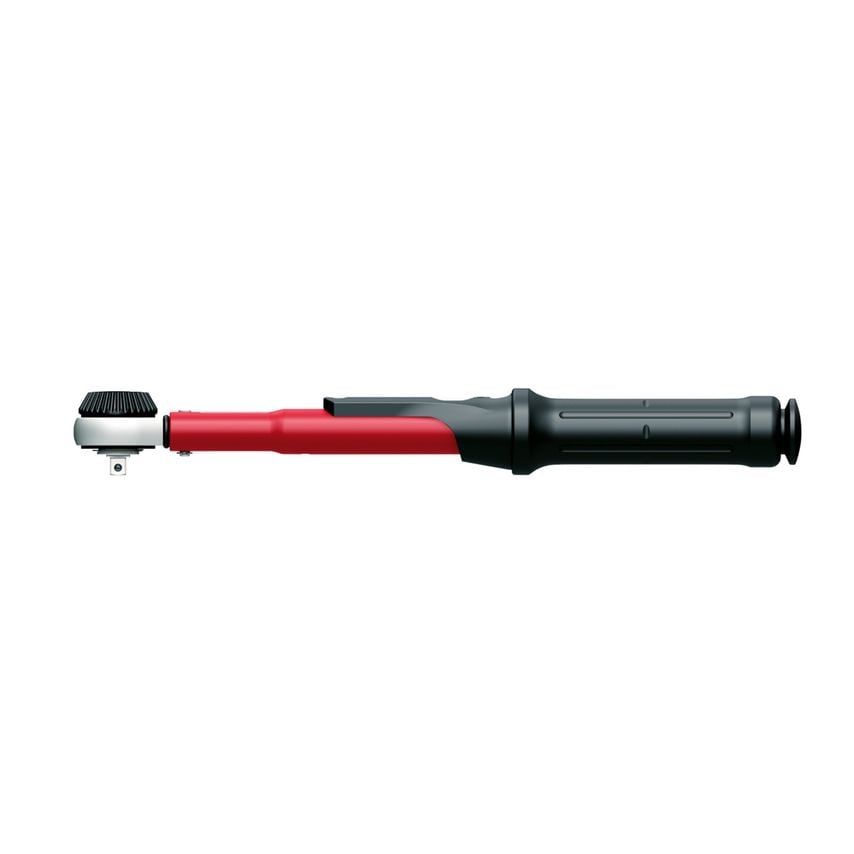

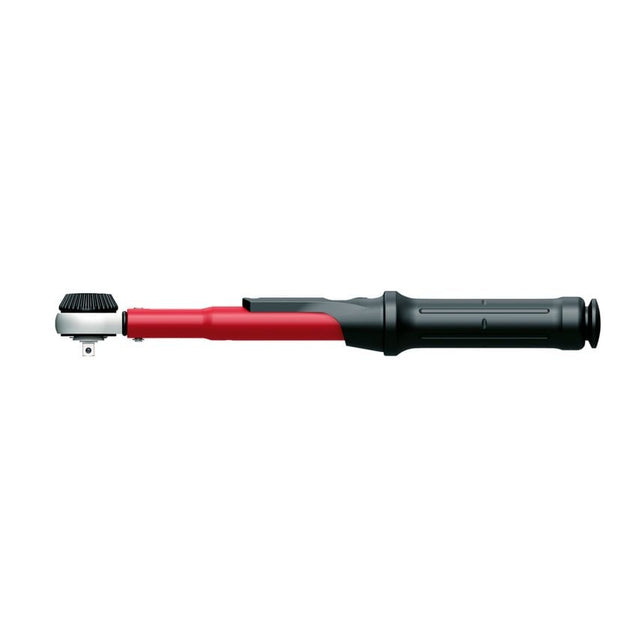

Use: Controlled screw tightening from 5 to 550 Nm For controlled bi-directional tightening Repetition-accurate and precision-like Torque triggering clearly to be heard and felt Features: Adjustable torque wrench with square drive and integrated ratchet-head function Square drive with ratchet mechanism Torque is set by turning the handle The set value is fixed through the lock at the end of the handle Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting Actuation accuracy: +/- 3 % tolerance of the scale set torque Scope of delivery: Torque wrench with test certificate acc. to DIN EN ISO 6789 Operating instructions
| Drive Connector Square (Male) | 6.3mm |
| Trigger Mechanism | Short path triggering |
| Length | 285mm |
| Torque Range | 5 - 25Nm |
| Overall Length | 285mm |
| Product Type | Torque Wrenches |
| Accuracy | +/- 3% |
| Drive Type | square socket with kNob |
| Standards Met | DIN EN ISO 6789-2 |
| Minimum Torque | 5 N\u00b7mNm |
| Precision | +/- 3 % |
| Height | 34mm |
| Number of Teeth | 36 |
| Graduation | Yes |
| Width | 34mm |
| Torque Wrench Type | Adjustable Torque Wrench |
| Calibration Length | 206.5mm |
| Tightening Direction | Left and right |
| Maximum Torque | 25 N\u00b7mNm |
| Return Angle | 10\u00b0 |
