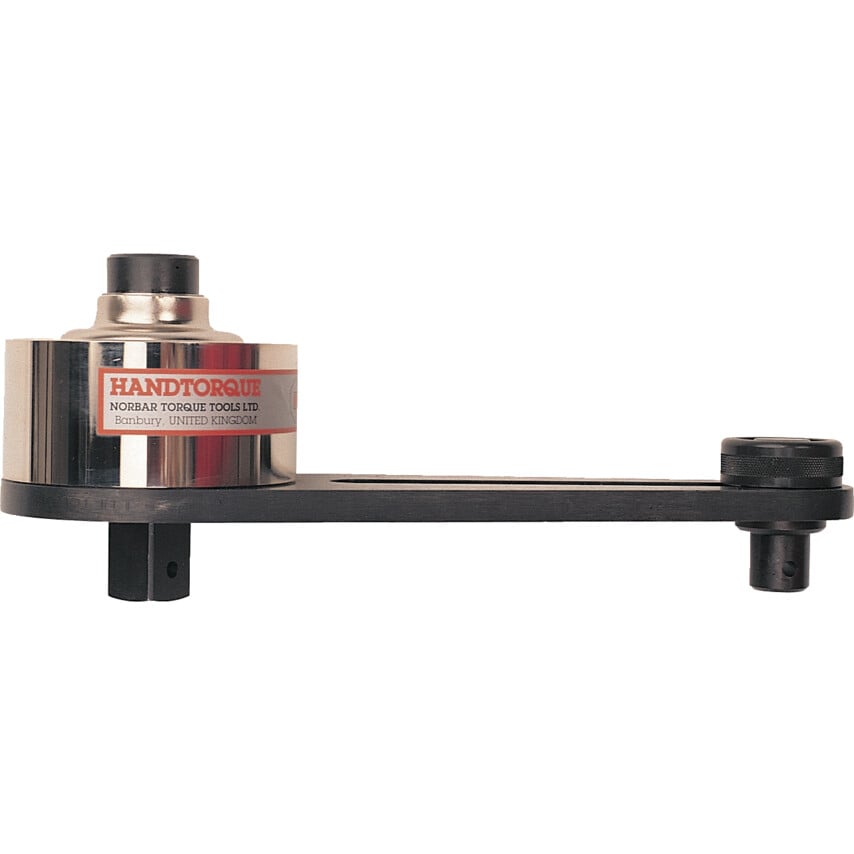

No.5/25 Hand Torque Multiplier 1" Square DR (16090)

Designed for the specialist user where it is necessary to provide higher torque than would otherwise be possible due to limitations on space or operator strength. The torque multiplication is accurate to more than 4% with a maximum output of 47,500Nm. *Models contain the AWUR anti wind-up ratchet mechanism. Each time the input device is released, the wind-up will rotate back against the direction of operation. The AWUR mechanism retains all of the wind up forces as they are created locking the multiplier onto the nut being tightened. This means that even when used upside down the multiplier will support its own weight.

Drive Size	1/2in
Square Drive Input	1/2in
Accuracy	\u00b14%
Torque Range	340 - 3400Nm
Overall Length	355mm
Square Drive Output	1in
MFR Part No.	16090
Multiplication Ratio	25
