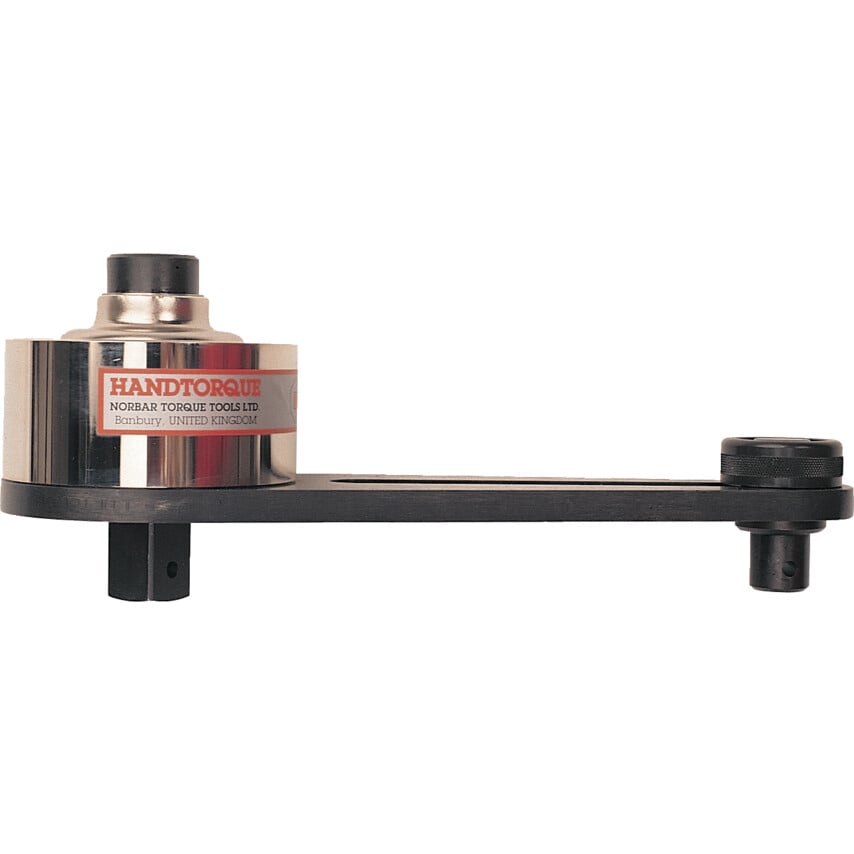

Designed for the specialist user where it is necessary to provide higher torque than would otherwise be possible due to limitations on space or operator strength. The torque multiplication is accurate to more than 4% with a maximum output of 47,500Nm. *Models contain the AWUR anti wind-up ratchet mechanism.
Each time the input device is released, the wind-up will rotate back against the direction of operation. The AWUR mechanism retains all of the wind up forces as they are created locking the multiplier onto the nut being tightened. This means that even when used upside down the multiplier will support its own weight.
| Drive Size | 3/4in |
| MFR Part No. | 16014 |
| Square Drive Output | 1in |
| Square Drive Input | 3/4in |
| Overall Length | 355mm |
| Multiplication Ratio | 5 |
| Accuracy | \u00b14% |
| Torque Range | 340 - 3400Nm |
