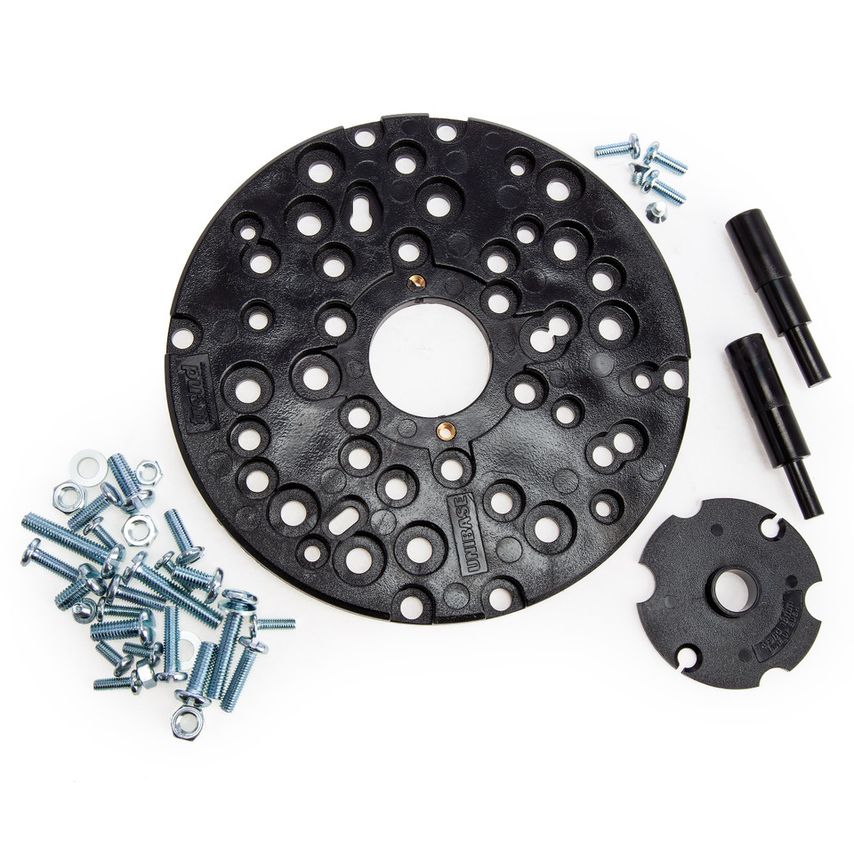

The Trend UNIBASE is a Router Base Adaptor that allows other makes and models of routers to use the Trend Guide Bushes for increased diversity.
The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.
Features:
Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base
Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch
Instructions for fitting:

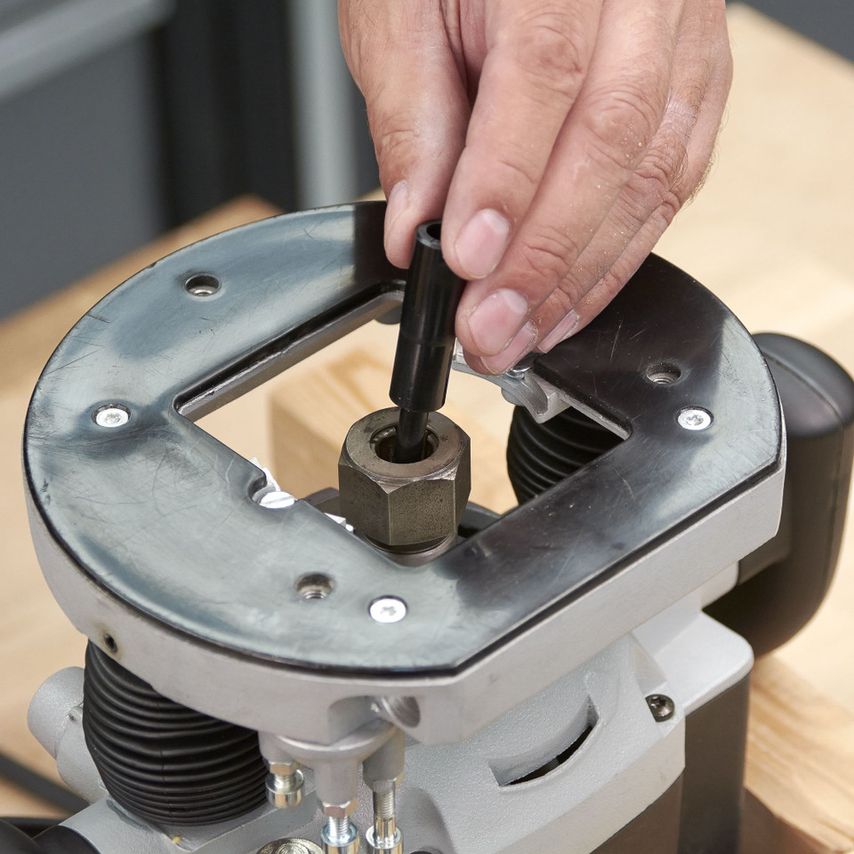

The line-up pin fits into the collet and is plunged through the router base
The line-up bush is fitted into the Unibase and secured

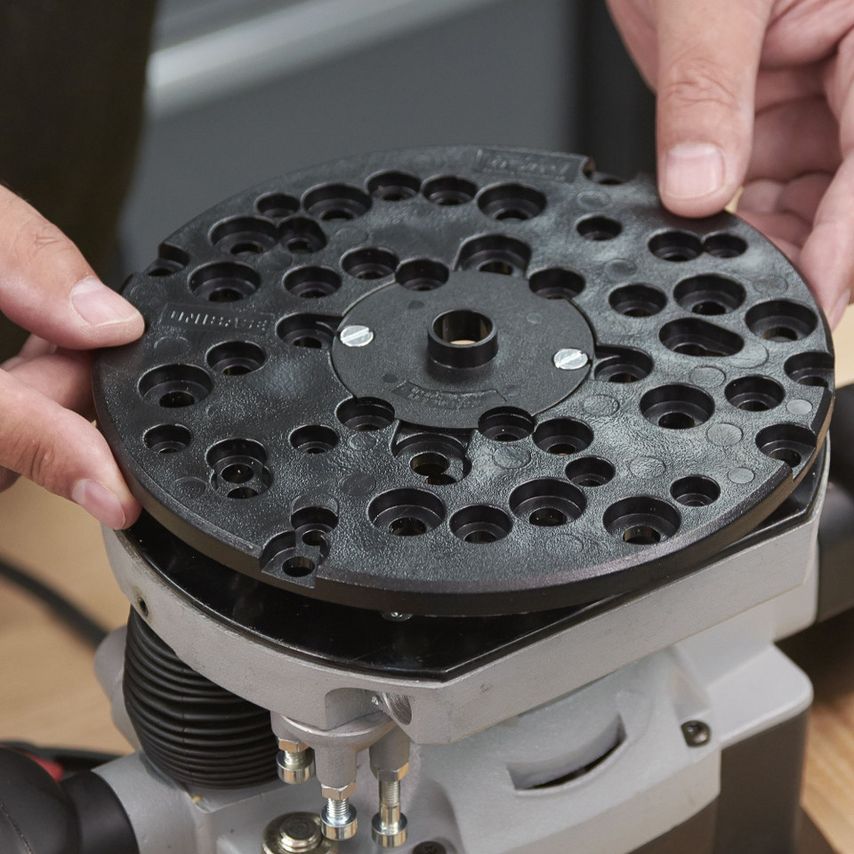

This is then placed over the line-up pin and rotated in order to line up the fixing holes
The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes
These range from 10mm up to 30mm (GB10 - GB32)
For larger diameter cutters a 40mm guide bush (GB40) is available
Ideal for hinge jig and lock jig
Specification:
Diameter: 170mm
Thickness: 8mm
Bore; 39mm
Recess: 60mm
Screw thread: 2BA
| Thickness | 8mm |
| Diameter | 170mm |
| Product Type | Router Base Adaptor |
