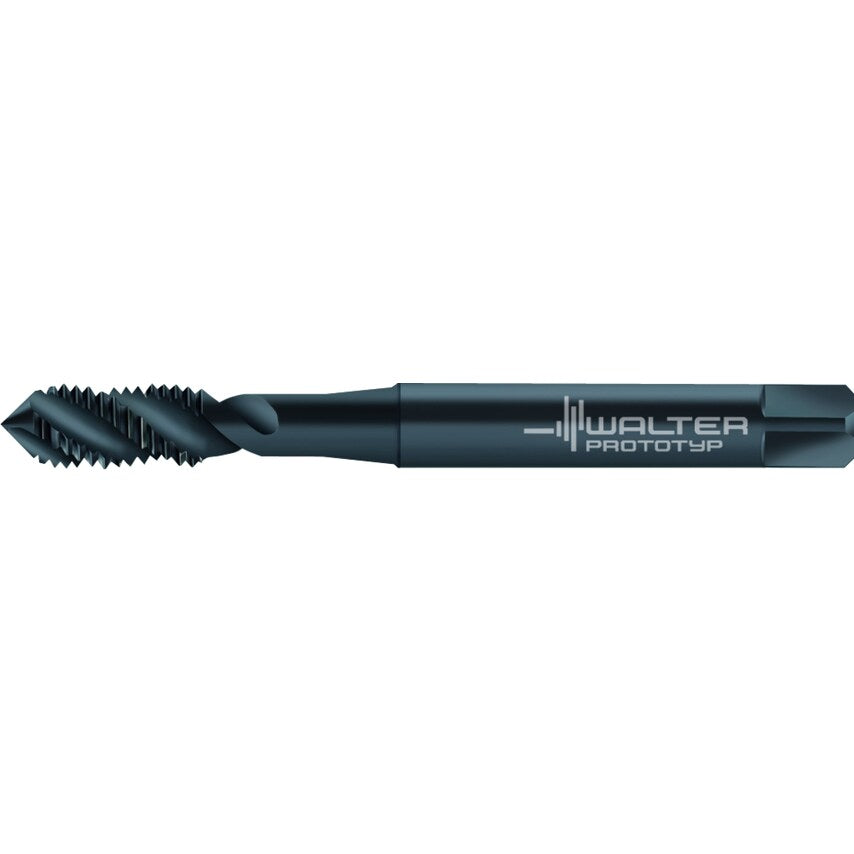

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD EGUNF/3B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP EGUNF #10-32 P=32
| Material | HSSE |
| Usable Length | 30mm |
| Connection Diameter | 6mm |
| Thread Size | EGUNF #10-32 |
| Tool Designation | M235049-EGUNF10 |
| Driving Square Length | 8mm |
| Clamping Width | 4.9mm |
| MFR Part No. | 6150004 |
| Cutting Edge Length | 10mm |
| Number of Grooves | 3 |
| Functional Length | 80mm |
| Tap Type | Machine Tap |
| Finish/Coating | VAP |
| Thread Standard | UN |
