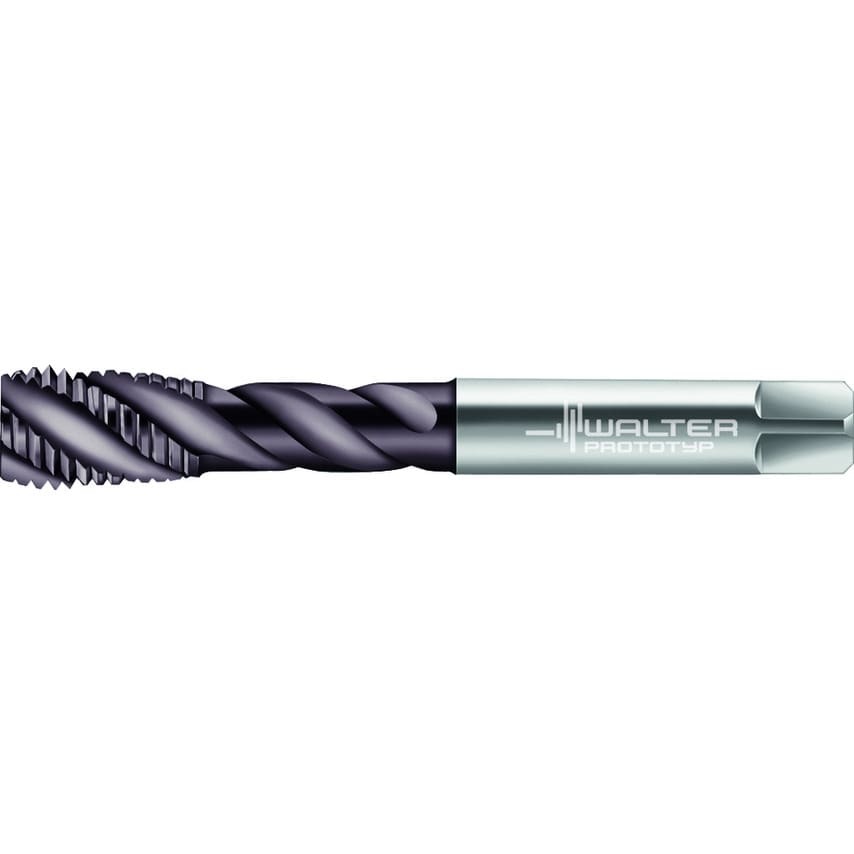

HSS-E PM machine taps Paradur Eco Plus C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 374 right hand flute 45 Suitable for blind hole THL MF 18x1.5 P=0.0591in
| MFR Part No. | 6245651 |
| Thread Size | MF 18x1.5 |
| Connection Diameter | 14mm |
| Clamping Width | 11mm |
| Cutting Edge Length | 17mm |
| Tool Designation | EP2156302-M18X1.5 |
| Functional Length | 110mm |
| Usable Length | 66mm |
| Thread Pitch | 1.5mm |
| Driving Square Length | 14mm |
| Number of Grooves | 4 |
