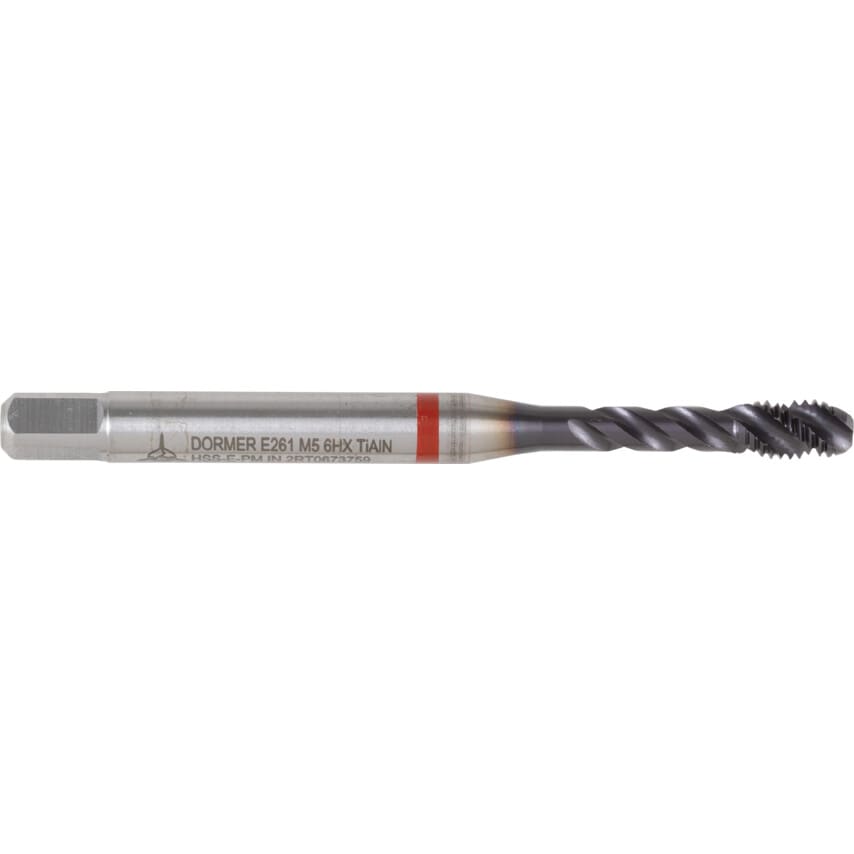

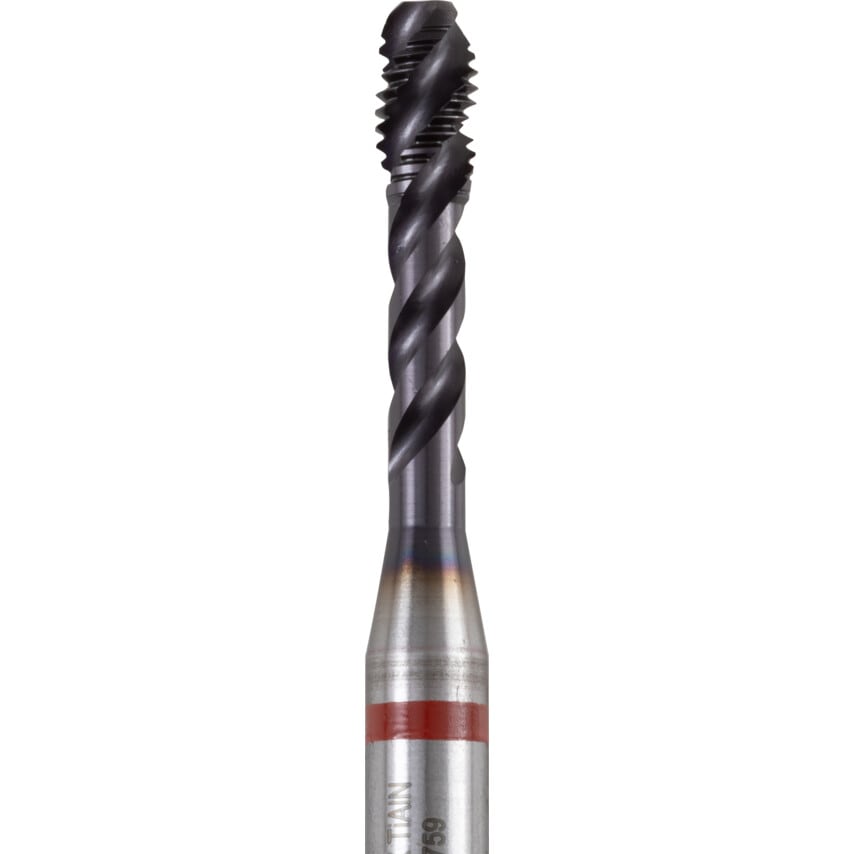

Dormer's application-based range of colour ring coded DIN taps, branded Shark Line, are renowned for their high performance and are an ideal solution when high quality threads are required in specific materials.Red Shark spiral flute taps feature special edge treatment to increase strength and minimise risk of micro-chipping on the cutting edges, considerably improving performance and tool life. E261 Spiral Flute Tap TiALN Top Red Shark / Ring for Alloy Steels Back Tapered 2.5xD Manufactured to DIN 371 <10mm, DIN 376 >12mm Spiral Flute for blind holes 45 Helix angle Sizes M3 to M20
| Pitch | 0.8 |
| Tap Type | Spiral Flute |
| Finish/Coating | TiAlN |
| Class of Fit | 6H |
| Shank Diameter | 6.0mm |
| Dimensions Standard | DIN 371 |
| Number of Flutes | 3 |
| Thread Size | M5 |
| Material Grade | M35 |
| Thread Direction | Right Hand |
| Thread Length | 13.0mm |
| Overall Length | 70.00mm |
| Helix Angle | 45\u00b0 |
| Lead | C 2-3 |
| MFR Part No. | E261M5 |
| Thread Standard | Metric Coarse |
| Series | E261 |
| Tapping Depth | 25.00mm |
| Material | Powdered Metal Cobalt High Speed Steel |
| Square Width | 4.90mm |
