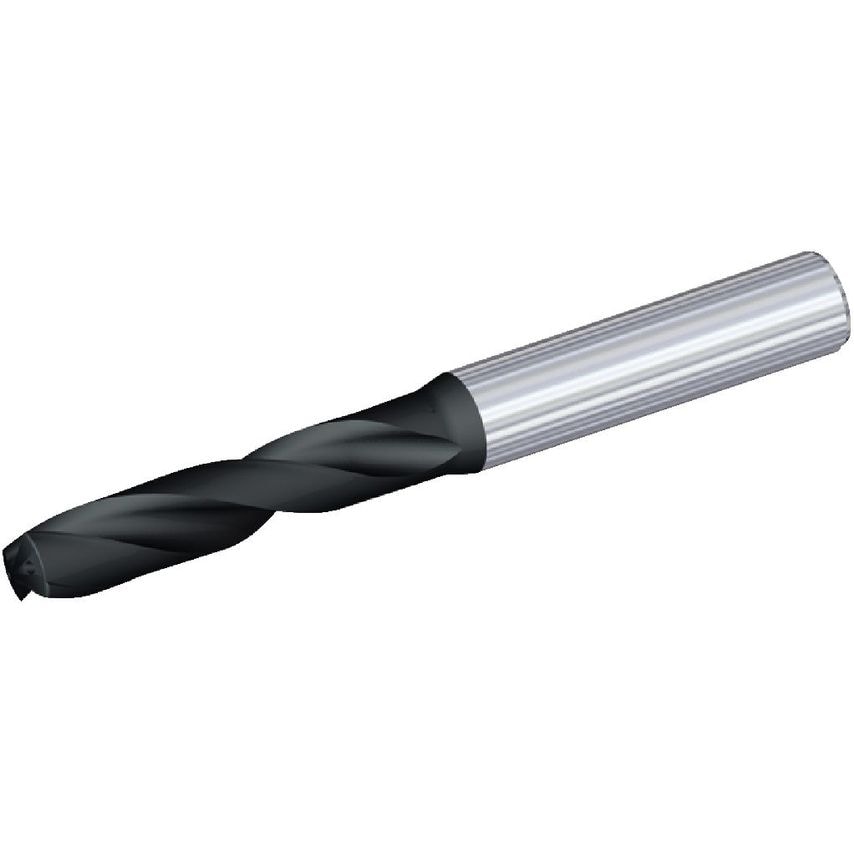

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills
| MFR Part No. | 3640767 |
| Functional Length | 89.4900mm |
| Hand Preference | Right |
| Unit Measured | Metric |
| Flute Length | 53mm | 53.0000mm |
| Primary Material | Stainless Steel |
| Number of Flutes | 2 |
| Coolant Supplied | Yes |
| Assembly Length | 62.49mm |
| Drill Point | 1.51mm |
| Drill Depth | 43mm | 43.0000mm |
| Clamping Length | 36mm |
| Helix Angle | 30.110 |
| Adapter Style | Straight-Cylindrical |
| Overall Length | 91mm | 91.0000mm |
| Coolant Diameter | 1.2000mm (0.0335in) |
| Shank Length | 36.0000mm |
| Material | Carbide |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Drill Diameter | 7.9375mm |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Flute Construction | Helical Flute |
| Coolant Delivery | Concentric Axial Coolant;Off-center Axial Coolant |
| Finish/Coating | AlTiN |
