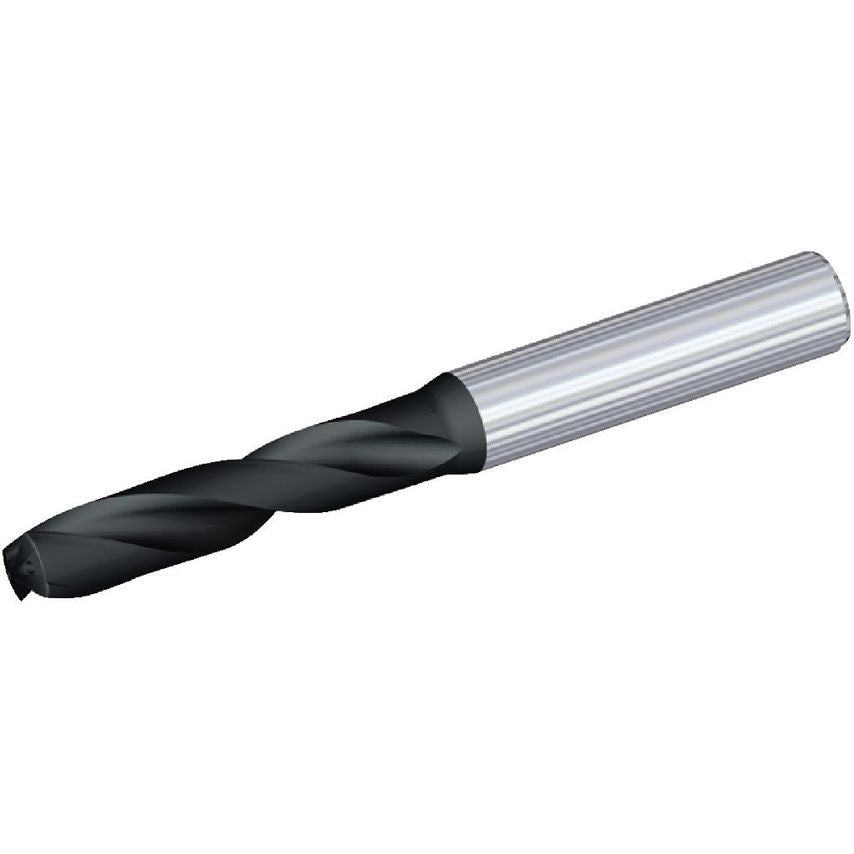

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills
| Adapter Style | Straight-Cylindrical |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Helix Angle | 27.990 |
| Number of Flutes | 2 |
| Material | Carbide |
| Drill Depth | 56mm | 56.0000mm |
| Hand Preference | Right |
| Drill Point | 1.95mm |
| Coolant Delivery | Concentric Axial Coolant;Off-center Axial Coolant |
| Coolant Diameter | 1.4400mm (0.0252in) |
| Assembly Length | 74.05mm |
| Finish/Coating | AlTiN |
| Overall Length | 118mm | 118.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter Type | Cylindrical |
| Clamping Length | 45mm |
| Shank Length | 45.0000mm |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Primary Material | Stainless Steel |
| Drill Diameter | 10.3200mm |
| MFR Part No. | 3640781 |
| Flute Construction | Helical Flute |
| Coolant Supplied | Yes |
| Flute Length | 71mm | 71.0000mm |
| Functional Length | 116.0500mm |
| Unit Measured | Metric |
