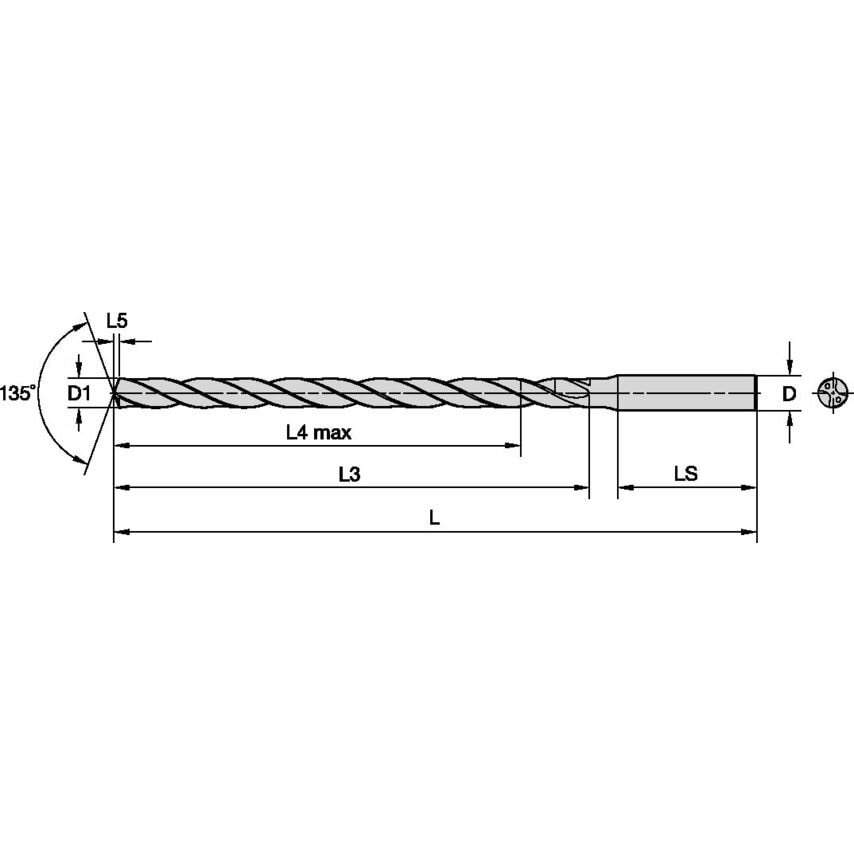

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Flute Construction | Helical Flute |
| Adapter Type | Cylindrical |
| Hand Preference | Right |
| Clamping Length | 43mm |
| Coolant Supplied | Yes |
| Number of Flutes | 2 |
| Shank Length | 48.0000mm |
| Assembly Length | 231.341mm |
| Drill Point | 2.659mm |
| MFR Part No. | 4169305 |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Unit Measured | Metric |
| Material | Carbide |
| Helix Angle | 26.712 |
| Helix Type | Right Hand Helix/Flute |
| Primary Material | Steel |
| Finish/Coating | TiAlN |
| Overall Length | 277mm | 277.0000mm |
| Adapter Style | Straight-Cylindrical |
| Functional Length | 274.3410mm |
| Drill Diameter | 14.2880mm |
| Drill Depth | 188mm | 188.0000mm |
| Flute Length | 220mm | 220.0000mm |
