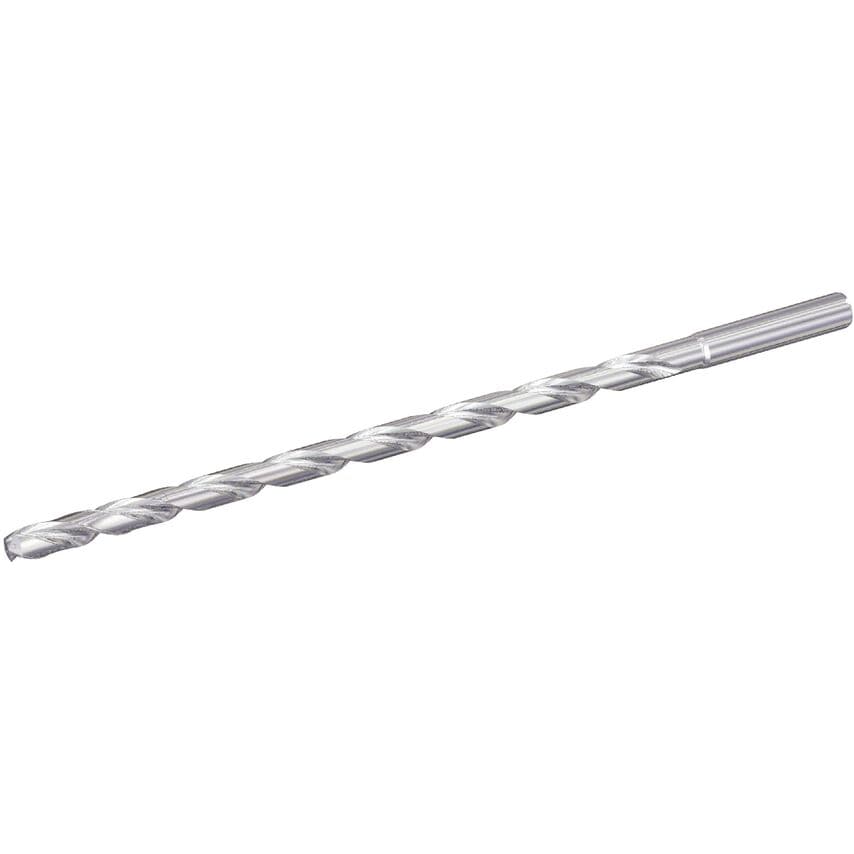

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Functional Length | 291.2500mm |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Helix Type | Right Hand Helix/Flute |
| Material | Carbide |
| Assembly Length | 254.725mm |
| Primary Material | Steel |
| Adapter Type | Cylindrical |
| MFR Part No. | 6351369 |
| Coolant Diameter | 1.6000mm (0.0315in) |
| Overall Length | 293mm | 293.0000mm |
| Shank Length | 46.0000mm |
| Flute Length | 238mm | 238.0000mm |
| Flute Construction | Helical Flute |
| Helix Angle | 29.205 |
| Finish/Coating | Uncoated |
| Drill Point | 1.75mm |
| Drill Diameter | 10.3200mm |
| Unit Measured | Metric |
| Hand Preference | Right |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Adapter / Shank / Bore Diameter | 11.0000mm |
| Coolant Supplied | Yes |
| Drill Depth | 215mm | 215.0000mm |
