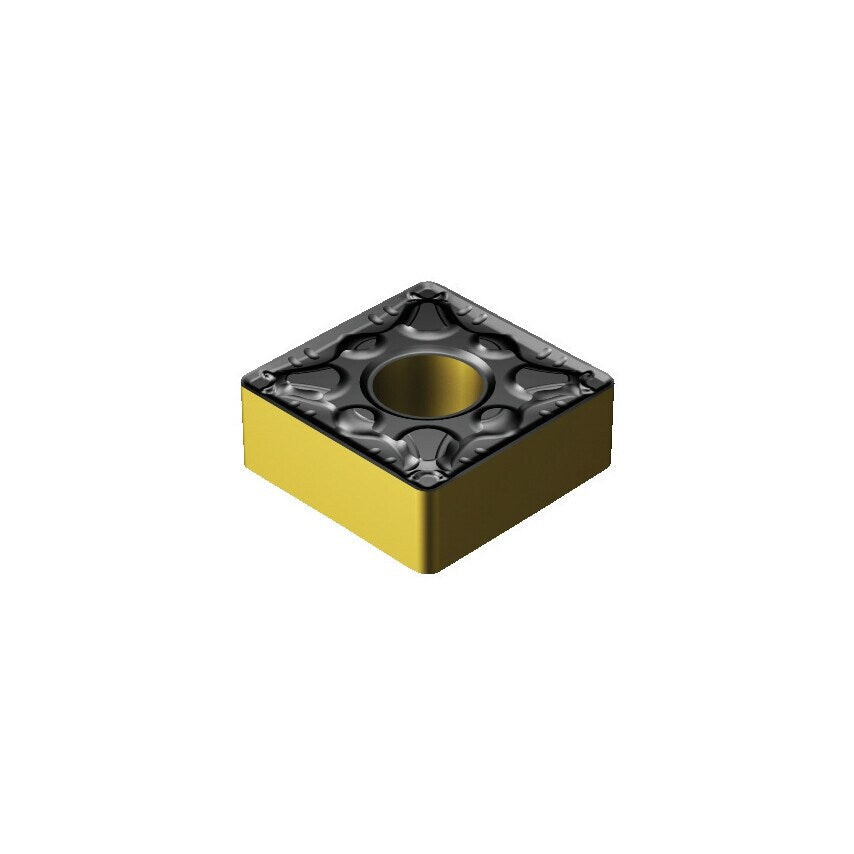

This range of T-Max P SNMG turning inserts are square in shape and manufactured from grade 4335 carbide. Finished with a Al2O3+TiCN+TiN coating, the turning inserts are available in a variety of sizes and specifications to suit your needs.
Features and Benefits
Al2O3+TiCN+TiN coating for bolstered longevity
Manufactured from grade 4335 carbide for resilience
Part of the T-Max P range that ensures high chip control and an excellent surface finish
Available in an array of sizes and specifications to suit your needs
Typical Applications
Suited primarily for use on steels

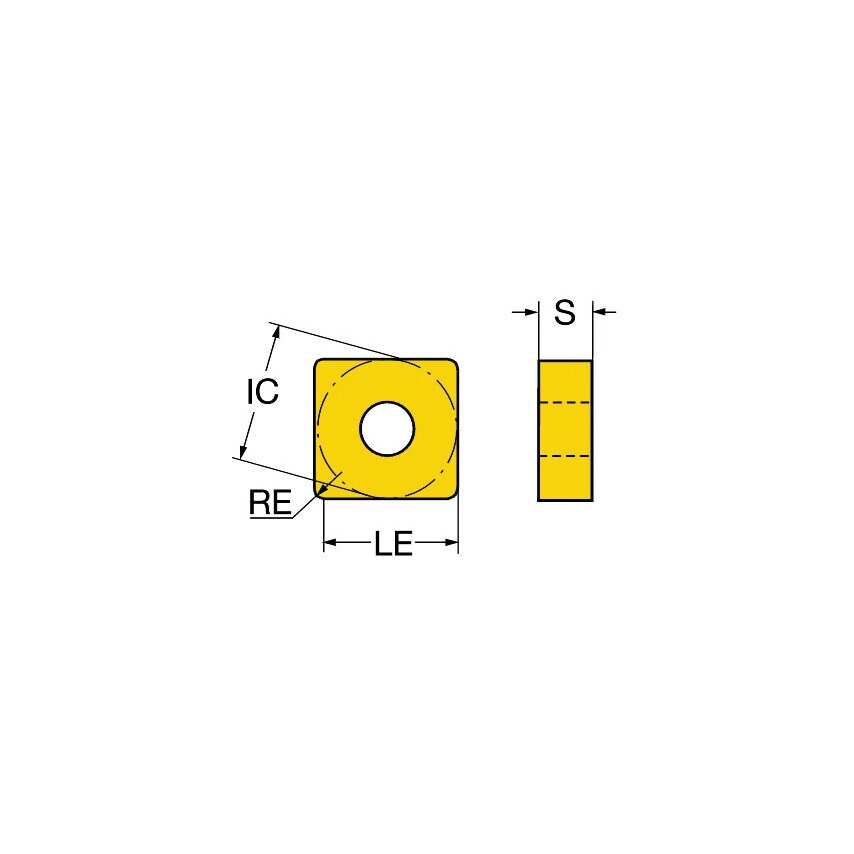

| Cutting Edge Length | 11.9mm |
| Material | Carbide |
| Chipbreaker | MR |
| Insert Size | SN1204 |
| Thickness | 4.76mm |
| ISO Category Grade | P |
| Insert Style | SNMG |
| Finish/Coating | Al2O3+TiCN+TiN |
| Corner Radius | 0.79mm |
| ISO Category | P |
| Shape | Square |
| Inscribed Circle | 12.7mm |
| MFR Part No. | 7080806 |
| Manufacturer Grade | 4335 |
| Cutting Direction | Neutral |
| ISO Designation | SNMG 12 04 08-MR 4335 |
