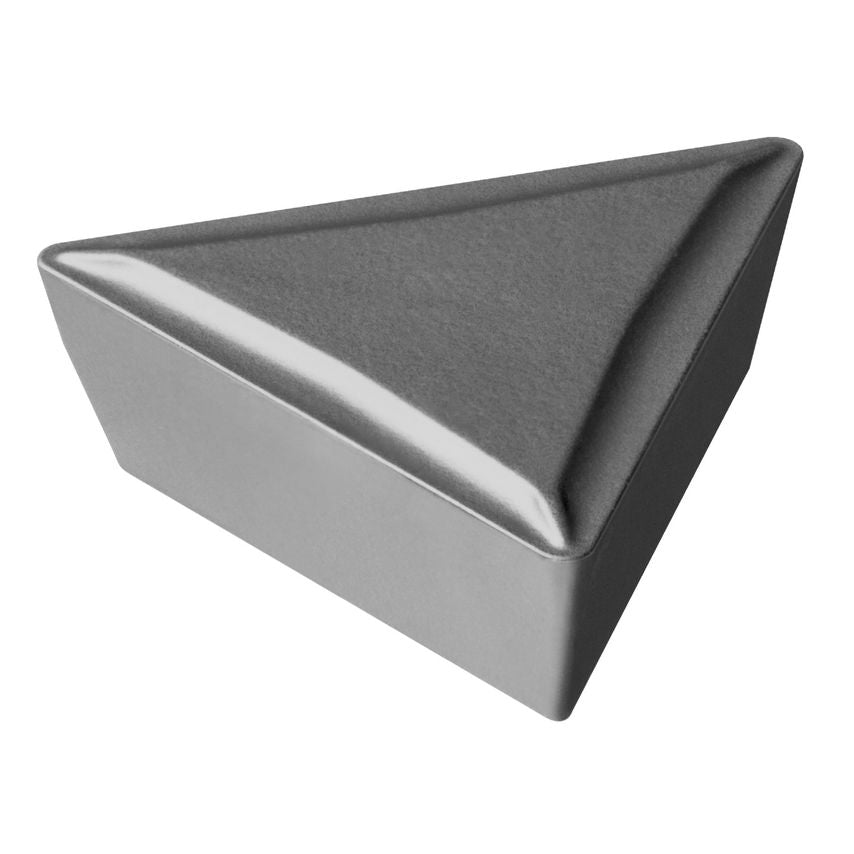

T-Max S insert for turning
| Through Hole Function Property | Yes |
| ISO Category Grade | N |
| Weight | 1.1g |
| Unit Measured | Metric |
| Inscribed Circle | 6.35mm |
| Clearance Angle Major | 11\u00b0 |
| ISO Designation | TPMR 110304 |
| Clearance Angle | 11\u00b0 |
| Insert Thickness | 3.175mm |
| CoroPak | 2.2 |
| Corner Radius | 0.3969mm |
| Insert Shape | Triangle |
| MFR Part No. | 5755201 |
| Hand Preference | Neutral |
| Inscribed Circle Diameter | 6.35mm |
| Wiper Edge Property | No |
| Insert Size/Shape | TP1103 |
| Insert Size | TP1103 |
| Grade | 5015 |
| Insert Mounting Style | Clamp |
| Cutting Edge Count | 3 |
| Coating Type | Uncoated |
| ISO Cutting Tool Material | Uncoated Cermets |
| Coating Process Type | UNCOAT |
