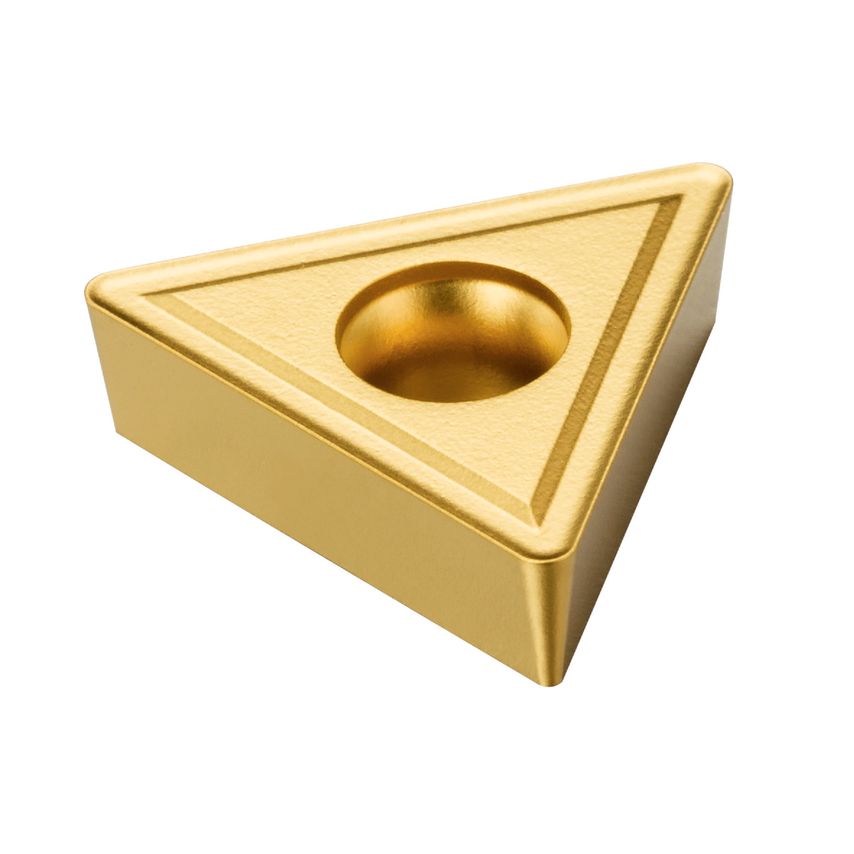

T-Max U insert for drilling
| Grade | 235 |
| Corner Radius | 25.4mm |
| Insert Size/Shape | CoroDrill U TC16T3xx |
| Inscribed Circle Diameter | 9.53mm |
| Insert Mounting Style | Screw/Clamp |
| Insert Thickness | 3.96875mm |
| Wiper Edge Property | No |
| Weight | 5.1g |
| Insert Usage Code | Peripheral |
| Through Hole Function Property | Yes |
| Coating Type | TiCN+TiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 40 |
| Insert Rake Angle | 15\u00b0 |
| Unit Measured | Metric |
| Coating Process Type | CVD |
| Inscribed Circle | 9.525mm |
| Insert Shape | Triangle |
| Cutting Edge Count | 3 |
| Fixing Hole Diameter | 3.7mm |
| MFR Part No. | 5752692 |
