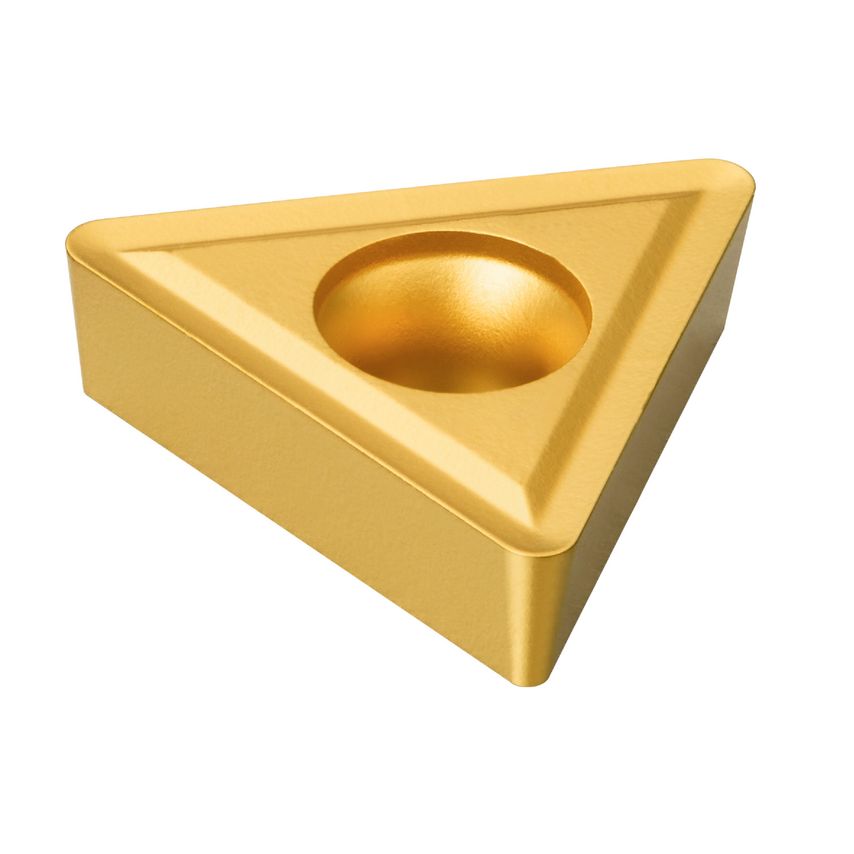

T-Max U insert for drilling
| Coating Process Type | CVD |
| Insert Rake Angle | 10\u00b0 |
| Insert Size/Shape | CoroDrill U TC1303xx |
| Grade | 235 |
| Coating Type | TiCN+TiN |
| Insert Usage Code | Peripheral |
| Through Hole Function Property | Yes |
| Corner Radius | 0.8mm |
| Inscribed Circle | 7.9375mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 5752818 |
| Fixing Hole Diameter | 3.2mm |
| Cutting Edge Count | 3 |
| Insert Shape | Triangle |
| Unit Measured | Metric |
| Insert Mounting Style | Screw/Clamp |
| Insert Thickness | 3.175mm |
| CoroPak | 88.1 |
| Wiper Edge Property | No |
| Inscribed Circle Diameter | 7.94mm |
