Product Range: CoroTurn TRTool Type: External turningStable external and internal profilingiLock DesignTools with iLock design have rails or serrations on the tool holder and corresponding slots on the insert for a tight locking. This prevents the cutting forces from affecting the tool position and ensures:- High stability and tolerances- Indexing repeatability- Insert location accuracy within 0.05 mm (0.002 inch)Chip control and process securityPre-directed precision nozzles create laminar jets of over and under coolant with high velocity, directed at the right place of the insert edge. It is the precision and character of these jets that make the difference in terms of chip control and process security.Handling efficiencyThe coolant is easily connected thanks to support from a large assortment of plug and play adaptors including Coromant Capto, VDI and machine specific adaptors for turning centres and QS stops (QS shanks) for sliding head machines.Features- Turning tools with single-sided inserts, iLock interface- Excellent stability for best component quality- Precision over and under coolantApplication- First choice for external profiling- Longitudinal turning- Medium and finishing applications- Turning centres, multi-task machining and large sliding head machines

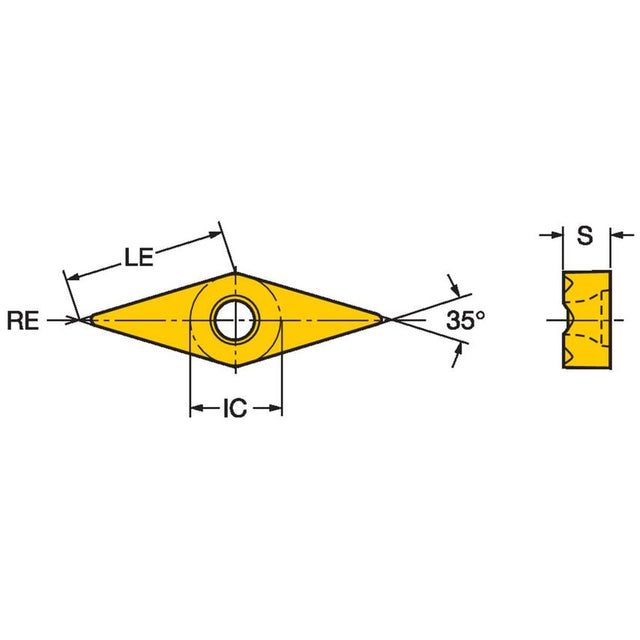

| Insert Size/Shape | CoroTurn TR VB13 |
| Insert Shape | Diamond 35\u00b0 |
| Clearance Angle | 5\u00b0 |
| Fixing Hole Diameter | 3.4mm |
| Inscribed Circle | 8mm |
| Insert Thickness | 4.525mm |
| Corner Radius | 0.3969mm |
| Through Hole Function Property | Yes |
| Wiper Edge Property | No |
| MFR Part No. | 7231479 |
| CoroPak | 17.1 |
| Hand Preference | Neutral |
| Coating Process Type | CVD |
| Insert Mounting Style | Screw/Clamp |
| Grade | 2220 |
| Coating Type | TiCN+Al2O3+TiN |
| Cutting Edge Count | 2 |
| Inscribed Circle Diameter | 8mm |
| Unit Measured | Metric |
| Clearance Angle Major | 5\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
