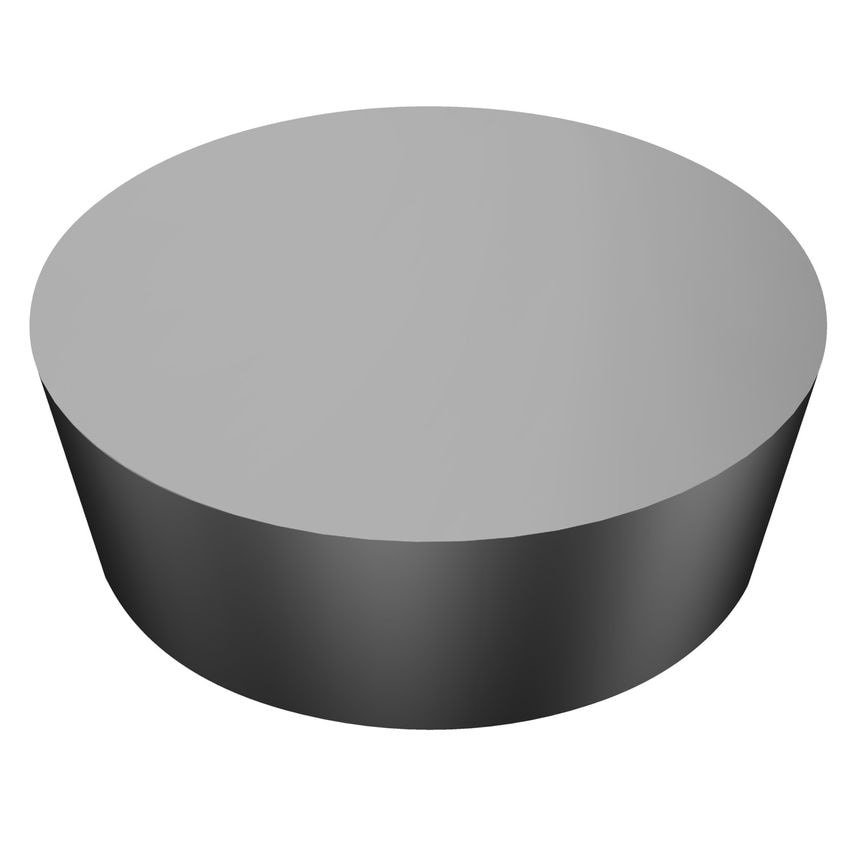

Tool type: External TurningFor productive turning of difficult to machine materialsStable insert clampingIt is very important to have a stable clamping while turning difficult-to-machine materials. T-Max offers stable clamping for both insert without hole and with dimple-hole.High performing gradesWith our latest Ceramic and solid CBN grades you can increase the cutting speeds to achieve higher metal removal rates and maximize production output.Reliable and secure machiningWide assortment of V-bottom and double-sided flat inserts and modern grades have strong edges that offer reliable and secure machining for all roughing to finishing operations.Features & Benefits- Turning tools with round ceramic inserts- For aerospace and other HRSA applications- Modular tools with Coromant Capto and SL70 couplingsExternal and internal turning- Longitudinal turning- Face turning- Profiling and pocketing- Roughing to finishing
| MFR Part No. | 7247384 |
| Insert Mounting Style | Clamp |
| Clearance Angle | 11\u00b0 |
| Unit Measured | Imperial |
| Coating Type | Uncoated |
| Insert Size/Shape | RP0603 |
| Hand Preference | Neutral |
| Inscribed Circle | 6.35mm |
| Insert Thickness | 3.175mm |
| Wiper Edge Property | No |
| Grade | 6160 |
| Insert Shape | Round |
| Through Hole Function Property | Yes |
| Thickness | 6.35mm |
| Clearance Angle Major | 11\u00b0 |
| Coating Process Type | UNCOAT |
| Cutting Edge Count | 4 |
| CoroPak | 17.1 |
| ISO Cutting Tool Material | Uncoated SiAlON Ceramic |
| Corner Radius | 3.175mm |
| Inscribed Circle Diameter | 6.35mm |
