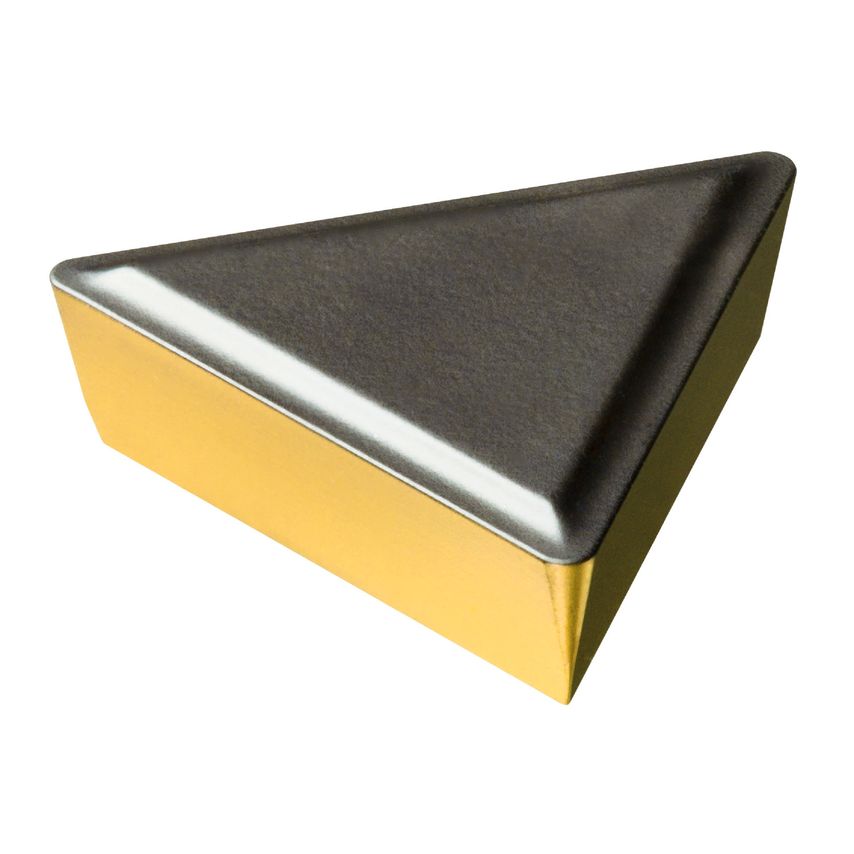

T-Max S insert for turning
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Size/Shape | TP1603 |
| Grade | 4325 |
| Insert Thickness | 3.175mm |
| Insert Shape | Triangle |
| Clearance Angle Major | 11\u00b0 |
| ISO Category Grade | N |
| CoroPak | 14.1 |
| Coating Type | TiCN+Al2O3+TiN |
| MFR Part No. | 6532285 |
| Hand Preference | Neutral |
| Inscribed Circle Diameter | 9.53mm |
| Unit Measured | Metric |
| Wiper Edge Property | No |
| Cutting Edge Count | 3 |
| ISO Designation | TPMR160304 |
| Coating Process Type | CVD |
| Insert Mounting Style | Clamp |
| Corner Radius | 0.3969mm |
| Clearance Angle | 11\u00b0 |
| Inscribed Circle | 9.525mm |
| Through Hole Function Property | Yes |
| Insert Size | TP1603 |
