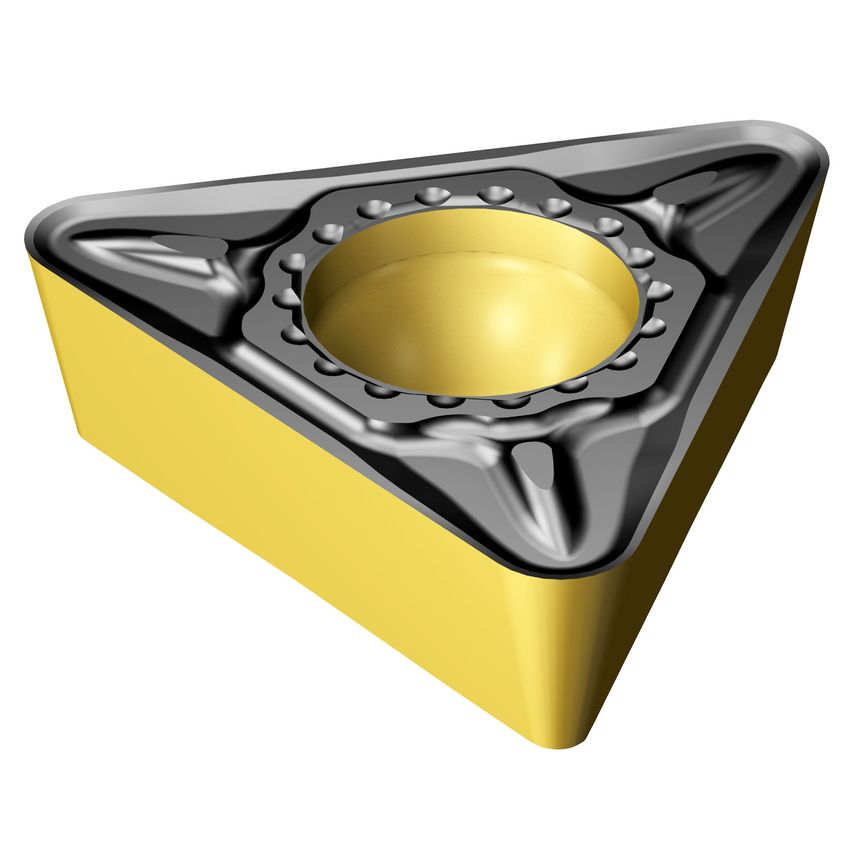

Product Range: CoroTurn 111CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.Benefits- Secure insert clamping- Excellent repeatability- Free chip flow- Low cutting forces- Excellent edge strengthFeatures- 11 degree clearance angle- Positive insert shape- Low cutting forces- Excellent edge strength- Screw clamping ensures stability and unobstructed chip flow- Tools with high pressure coolant- Insert geometries and grades for all materialsApplication- Machining of steel, stainless steel, cast iron, heat resistant super alloys, titanium, hardened materials, aluminium, non ferrous material- Finishing and medium roughing

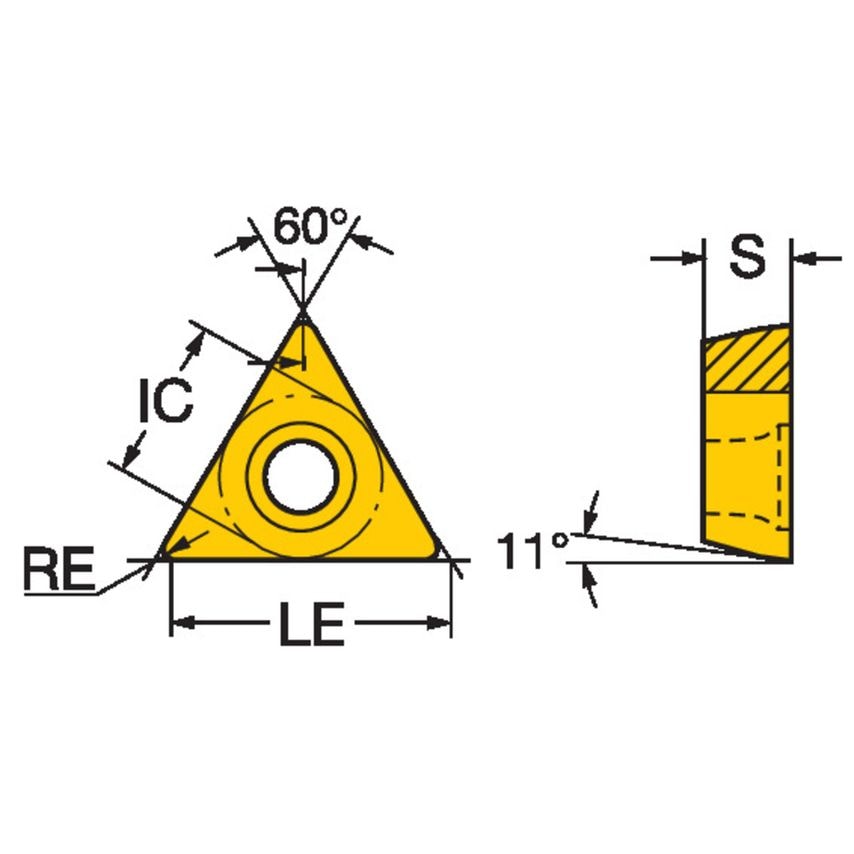

| Insert Thickness | 2.38125mm |
| Inscribed Circle Diameter | 5.56mm |
| Unit Measured | Metric |
| Insert Mounting Style | Screw/Clamp |
| Weight | 1g |
| Coating Type | TiCN+Al2O3+TiN |
| Fixing Hole Diameter | 2.5mm |
| Inscribed Circle | 5.55625mm |
| MFR Part No. | 8021001 |
| Wiper Edge Property | No |
| Through Hole Function Property | Yes |
| Corner Radius | 0.7938mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | CVD |
| Clearance Angle Major | 11\u00b0 |
| Clearance Angle | 11\u00b0 |
| Insert Size | TP0902 |
| Insert Size/Shape | TP0902 |
| Hand Preference | Neutral |
| Insert Shape | Triangle |
| CoroPak | 21.2 |
| Grade | 4415 |
| Cutting Edge Count | 3 |
