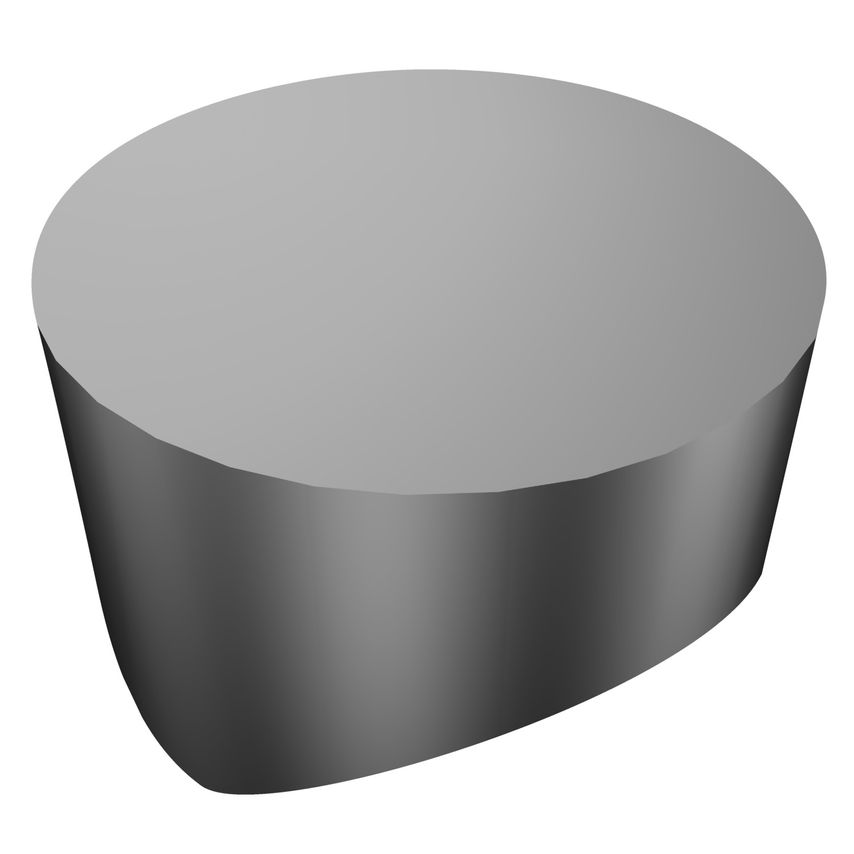

Tool type: External TurningFor productive turning of difficult to machine materialsStable insert clampingIt is very important to have a stable clamping while turning difficult-to-machine materials. T-Max offers stable clamping for both insert without hole and with dimple-hole.High performing gradesWith our latest Ceramic and solid CBN grades you can increase the cutting speeds to achieve higher metal removal rates and maximize production output.Reliable and secure machiningWide assortment of V-bottom and double-sided flat inserts and modern grades have strong edges that offer reliable and secure machining for all roughing to finishing operations.Features & Benefits- Turning tools with round ceramic inserts- For aerospace and other HRSA applications- Modular tools with Coromant Capto and SL70 couplingsExternal and internal turning- Longitudinal turning- Face turning- Profiling and pocketing- Roughing to finishing
| Hand Preference | Neutral |
| Unit Measured | Metric |
| CoroPak | 21.1 |
| Inscribed Circle | 9.525mm |
| Corner Radius | 4.7625mm |
| Clearance Angle Major | 7\u00b0 |
| Inscribed Circle Diameter | 9.53mm |
| Cutting Edge Count | 2 |
| Coating Type | Uncoated |
| MFR Part No. | 7993910 |
| Weight | 1.4g |
| Insert Shape | Round |
| ISO Cutting Tool Material | Uncoated SiAlON Ceramic |
| Through Hole Function Property | Yes |
| Wiper Edge Property | No |
| Insert Thickness | 7.9375mm |
| Clearance Angle | 7\u00b0 |
| Coating Process Type | UNCOAT |
| Insert Size/Shape | RC0907 |
| Insert Mounting Style | Clamp |
| Grade | 6165 |
