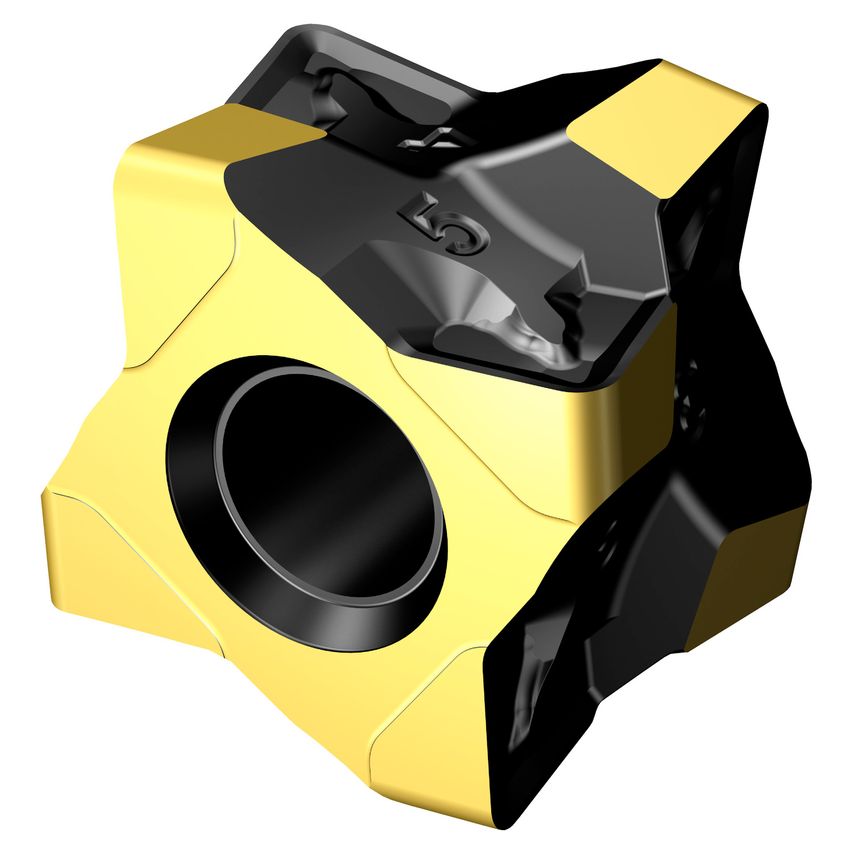

Product Range: CoroTurn 300Tool Type: External turningEffective and high-quality turning.High precision coolant from above controls the chip breaking for secure machining, while under coolant controls the temperature for long and predictable tool life. The coolant also have positive effects on surface quality.To achieve the highest quality of surfaces, the key is to prevent cutting forces from causing micro-movements of the insert. iLock, an interface between insert and holder, is developed to bridge this challenge.Coromant Capto interface or QS shanks enable quick tool change and easy coolant connection for maximized production time.Featurs & Benefits- Turning tools with 8-edge inserts, iLock interface- Excellent stability delivers high performance in steel turning- Precision over and under coolantExternal operations- Longitudinal and face turning- Finishing to medium- Machine types: turning centres and multi-task machines

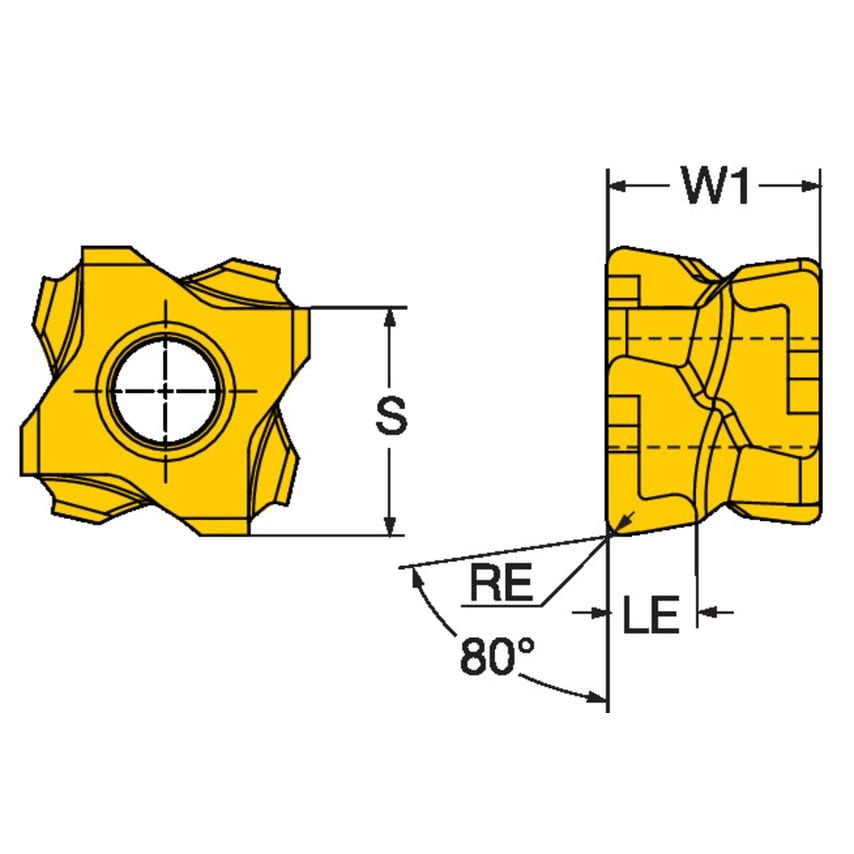

| Corner Radius | 1.1906mm |
| Unit Measured | Metric |
| Coating Type | TiCN+Al2O3+TiN |
| Insert Size/Shape | CoroTurn 300 -3-80-1011 |
| Wiper Edge Property | No |
| Grade | 4425 |
| Through Hole Function Property | Yes |
| Hand Preference | Neutral |
| Insert Mounting Style | Screw/Clamp |
| Coating Process Type | CVD |
| CoroPak | 21.2 |
| Insert Rake Angle | 17\u00b0 |
| MFR Part No. | 7860947 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Thickness | 11mm |
| Clearance Angle Major | 0\u00b0 |
| Insert Width | 10mm |
| Clearance Angle | 0\u00b0 |
| Weight | 12g |
| Cutting Edge Count | 8 |
