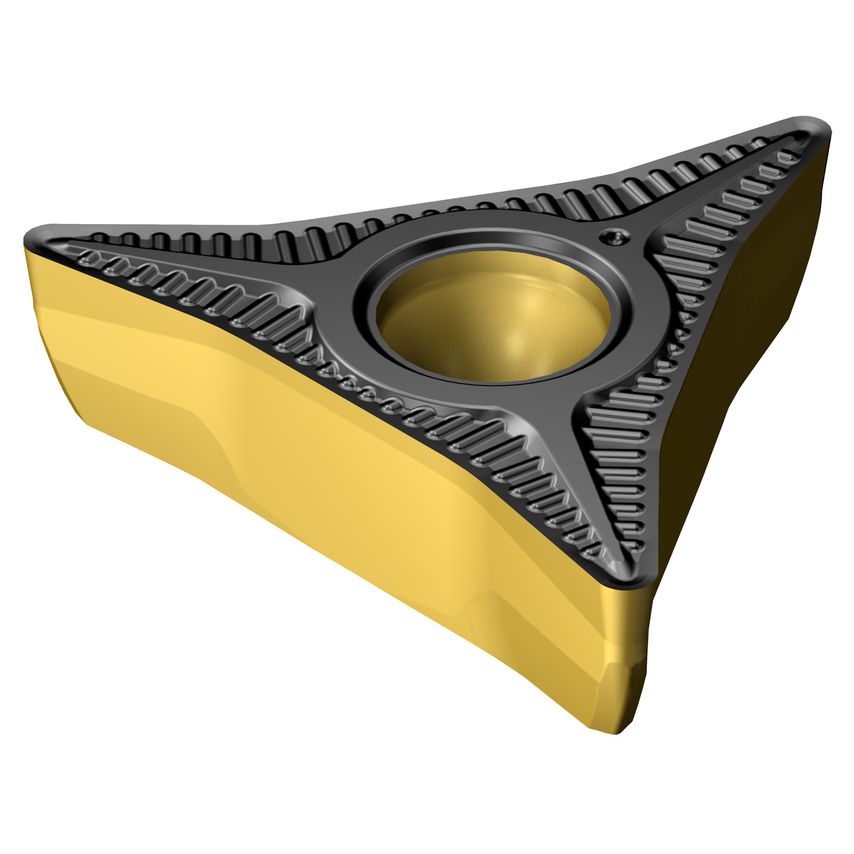

Product Range: CoroTurn PrimeTool Type: All-directional turningAll-directional turning collection. With the CoroTurn Prime SL head solution it is possible to use our PrimeTurning methodology for internal turning. The inside-out machining capability allows for excellent chip evacuation and chip control. CoroTurn Prime B-type now includes double-sided negative inserts with four cutting edges for cost-efficient machining. The tool also features a new robust tip seat design and updated geometries particularly suitable for challenging materials. With two inserts in the holder, the CoroTurn Prime Twin-tool saves significant time when changing tools to increase machine utilization and productivity.Features & Benefits- PrimeTurning all directional turning- Increased output of components and reduced cost per component- Precision over and under coolant- Flexibility to do turning in all directions- Wiper insert available for excellent surface finish- Double the speed and feed rates enable faster metal removal- Shim-protected tip seat for security- TR-style locking interface for stability- Over and under coolant with Coromant Capto holders and QS shanksTurning operations in all-directions- CoroTurn Prime A-type tool with three 35 corners designed for light roughing, finishing and profiling- CoroTurn Prime B-type tool with double-sided negative inserts with four cutting edges, designed for finishing and roughing- Machines: Turning centres, vertical lathes and multi-task machines- Good choice for mass production or components needing frequent set-ups and tool changes- External turning: Best suited for short and compact components and the slender ones using tail stock- Internal turning: For diameters above 40 mm (1.575 inch) and overhangs up to 810 D
| Coating Process Type | CVD |
| Fixing Hole Diameter | 3.7mm |
| Cutting Edge Count | 3 |
| Insert Thickness | 6mm |

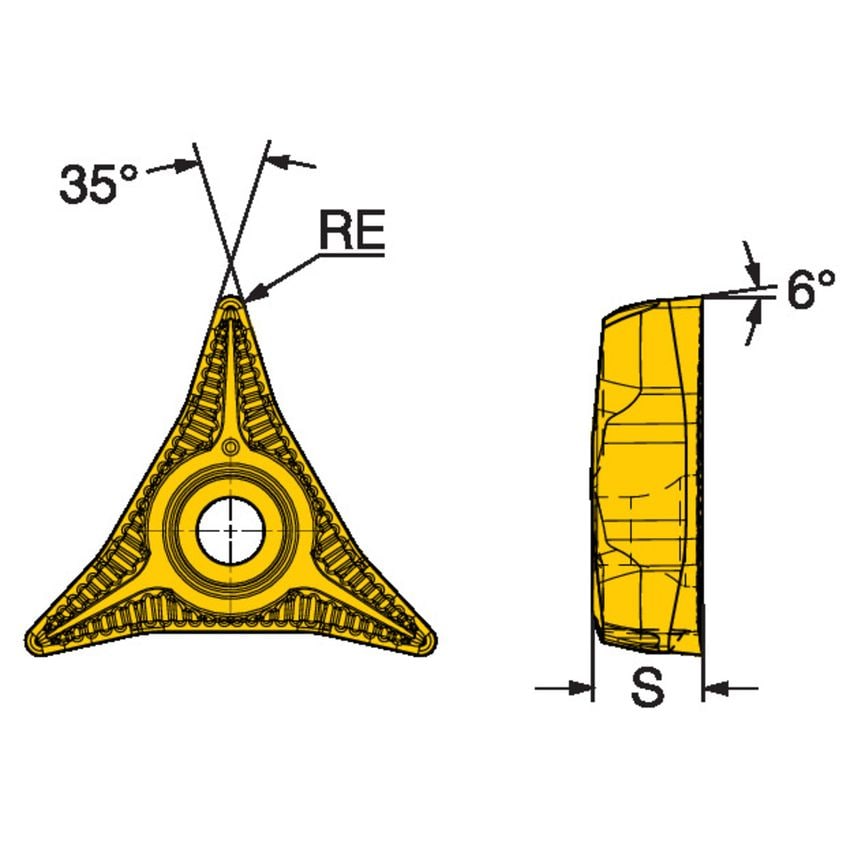

| Clearance Angle Major | 6\u00b0 |
| Insert Mounting Style | Screw/Clamp |
| Inscribed Circle | 11mm |
| Unit Measured | Metric |
| Wiper Edge Property | No |
| Insert Rake Angle | 0\u00b0 |
| Weight | 12g |
| Inscribed Circle Diameter | 11mm |
| Clearance Angle | 6\u00b0 |
| Corner Radius | 0.7938mm |
| CoroPak | 20.2 |
| Hand Preference | Neutral |
| Coating Type | TiCN+Al2O3+TiN |
| Grade | 4425 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7860966 |
| Through Hole Function Property | Yes |
| Insert Size/Shape | CoroTurn PRIME CP-A11 |
