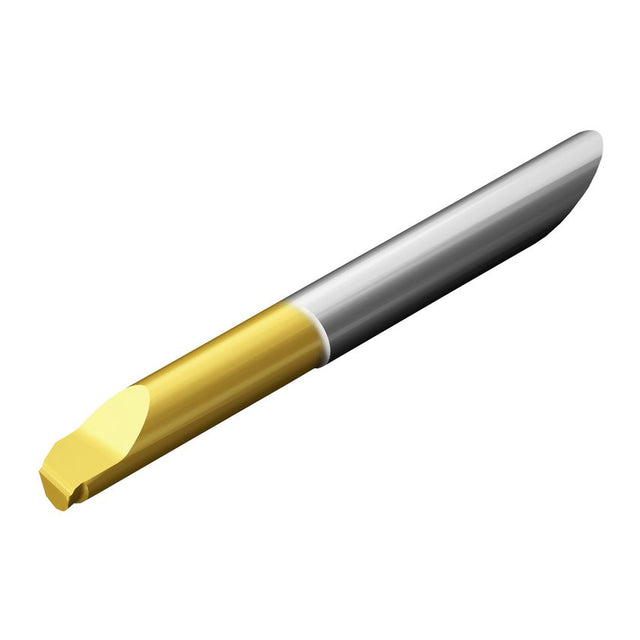

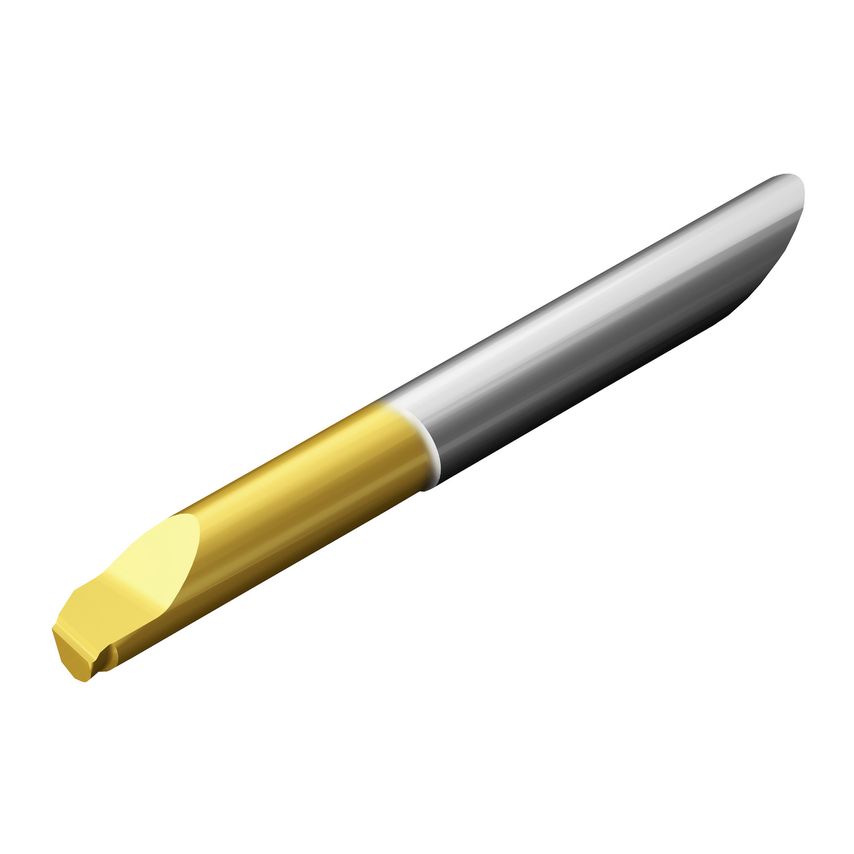

Product Range: CoroTurn XSInternal machining of small high quality featuresHigh precision and repeatabilityThese high-quality ground tools are designed for exact cutting-edge position, enabling high precision and repeatability in internal turning machining.Locking precisionThe solid carbide boring bar fits precisely into the adaptor with a locating pin. Collet-clamped adaptors ensure rigid clamping with increased stability.Internal coolantAll adaptors for CoroTurn XS are designed with internal coolant supply. Collet-clamped adaptors have selectable coolant direction for better chip evacuation and safe machining.Features & Benefits- Internal turning, diameters from 0.3 mm- Turning, threading, parting and grooving- Close tolerancesApplication area- For internal finishing applications- Hole diameter: 0.37.2 mm (0.0120.283 inch)- Internal turning, copying, back boring, profiling, grooving, pre-parting and threading- Face grooving
| Through Hole Function Property | Yes |
| Maximum Overhang | 13mm |
| Maximum Depth of Cut | 0.3mm |
| Coating Type | Uncoated |
| Unit Measured | Metric |
| Maximum Cutting Depth | 0.3mm |
| Hand Preference | Right |
| Grade | 7014 |
| ISO Cutting Tool Material | CBN low content |
| MFR Part No. | 7940757 |
| Coolant Entry Style | Without Coolant |
| Body Material | Carbide |
| Coating Process Type | UNCOAT |
| Tool Lead Angle | 8\u00b0 |
| Minimum Bore Diameter | 4.2mm |
| Usable Length | 10mm |
| Coolant Exit Style | 0 |
| Maximum Ramping Angle | 17\u00b0 |
| Corner Radius | 25.4mm |
| Connection Diameter | 4mm |
| Functional Length | 27.25mm |
| CoroPak | 352 |
| Tool Cutting Edge Angle | 98\u00b0 |
