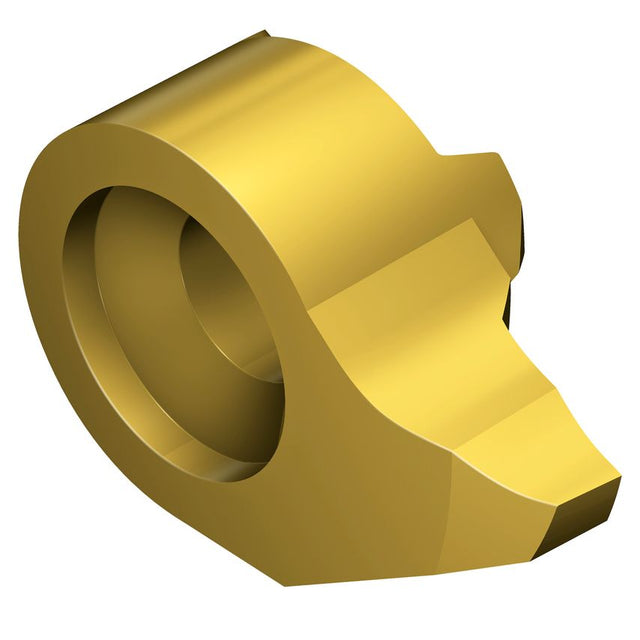

CoroCut MB is a high precision system for grooving, face grooving, profiling and pre-parting. The edge line of the cutting edge is sharp with a thin-layered coating, which in combination with the stability of the tools makes it ideal for internal machining.Features & Benefits- Internal turning, diameters from 10 mm- Turning, threading, parting and grooving- Close - Front-mounted exchangeable cutting tool- Sharp cutting edges- Geometries and grades for all materials- Carbide shanks for long overhangs- Through coolant- Easy fix clamping- Grooving tools in a large variety of widths and corner radii also for standardized grooves such as O-rings and circlip grooves.Application- Finish and precision machining at low feeds and speeds- For shallow grooves- Thread turning, turning, back boring, face grooving, profiling and pre-parting operations- Dedicated face grooving holder with nozzles for high precision coolant
| Body Material | Carbide |
| Tool Lead Angle | 3\u00b0 |
| Through Hole Function Property | Yes |
| MFR Part No. | 7940797 |
| Coolant Entry Style | Without Coolant |
| Grade | 7014 |
| Unit Measured | Metric |
| Maximum Depth of Cut | 1.8mm |
| Weight | 1.6g |
| Maximum Ramping Angle | 15\u00b0 |
| CoroPak | 368 |
| Connection Diameter | 7mm |
| Coolant Exit Style | 0 |
| Coating Type | Uncoated |
| Maximum Overhang | 3.9mm |
| Functional Length | 3.9mm |
| Maximum Cutting Depth | 1.8mm |
| Tool Cutting Edge Angle | 93\u00b0 |
| ISO Cutting Tool Material | CBN high content |
| Coating Process Type | UNCOAT |
| Corner Radius | 25.4mm |
| Hand Preference | Right |
| Minimum Bore Diameter | 10mm |
