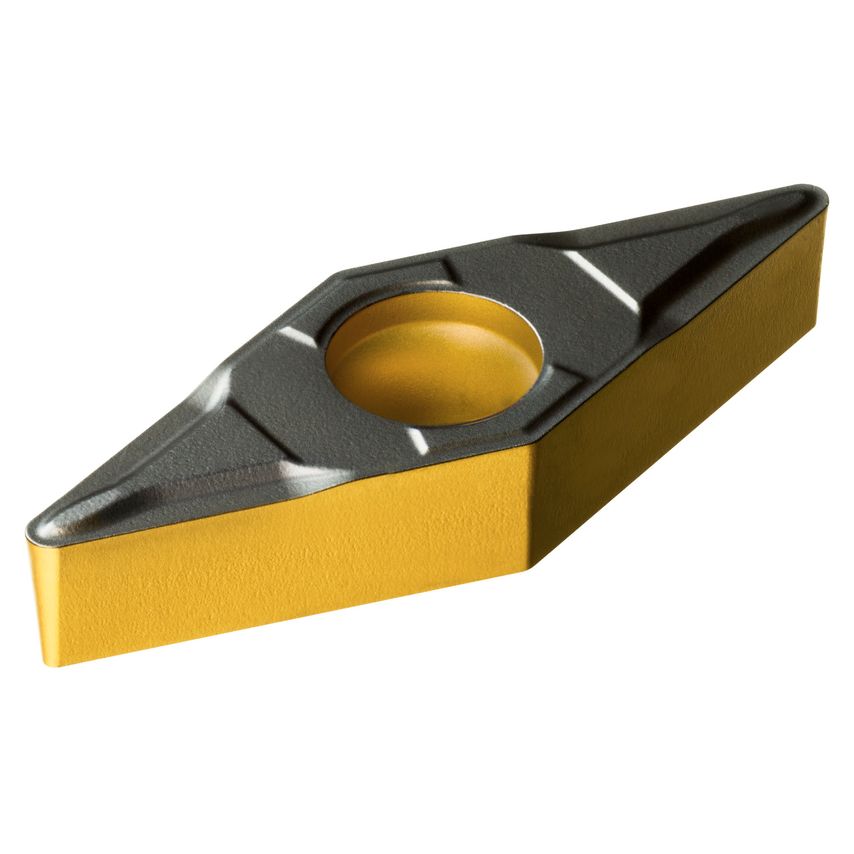

Product Range: CoroTurn 107Tool Type: Internal/External turningFor internal and external turning of slender componentsInserts and tool holders with rail interface ensure mounting security and offer secure machining for profiling and pocketing applications. When the insert is indexed the same way every time you can increase productivity and achieve higher quality.Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning. It is easy to handle, clean and maintain.Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control.Features & Benefits- Turning tools with single-sided ISO inserts- Wide assortment for all application areas- Precision over and under coolant- Wiper geometries available for high feeds and high quality surface finish- Low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish.- Ground, extremely sharp insert offer for exceptional surface finish- Holders with conventional and precision coolant designInternal operations:- Long overhangs, 46 D- Longitudinal turning and profiling- Boring holes, from diameter 6 mm (0.236 inch)External operations:- Small and slender or thin-walled components- Longitudinal turning, facing and profiling- Pocketing with non-linear methods, e.g. dynamic turning and waveform

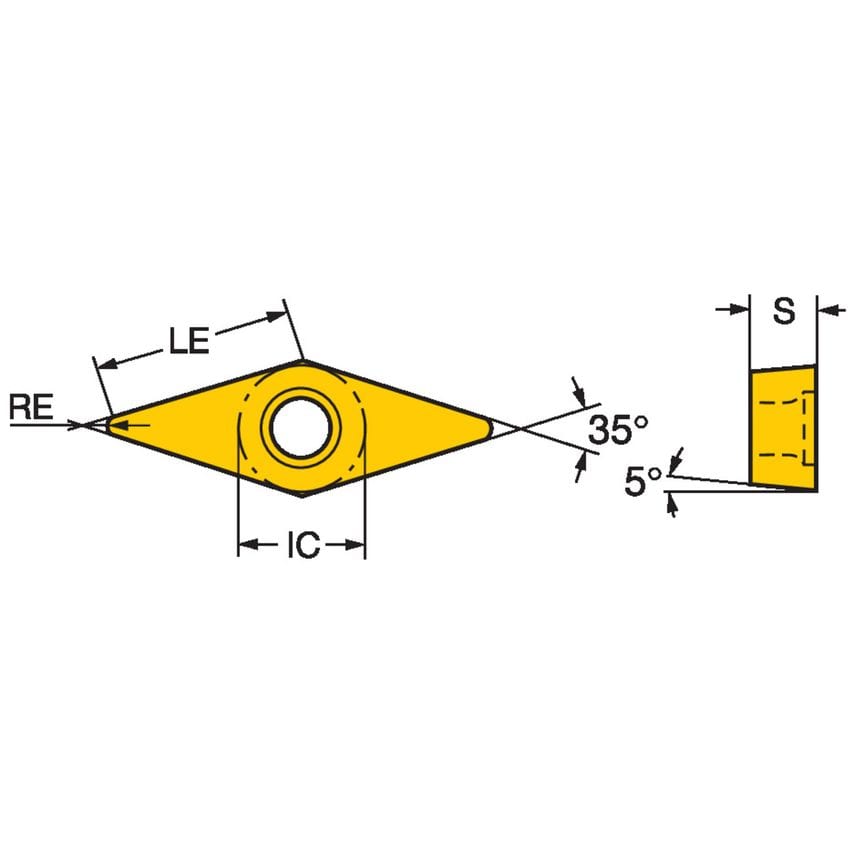

| Clearance Angle Major | 5\u00b0 |
| Cutting Direction | Neutral |
| Insert Shape | Diamond 35\u00b0 |
| Insert Style | VBMT |
| Thickness | 4.76mm |
| Fixing Hole Diameter | 4.4mm |
| Manufacturer Grade | 4415 |
| Hand Preference | Neutral |
| Inscribed Circle Diameter | 9.53mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Size/Shape | VB1604 |
| Pack Quantity | 1 |
| Coating Type | TiCN+Al2O3+TiN |
| Cutting Edge Count | 2 |
| Through Hole Function Property | Yes |
| Grade | 4415 |
| Weight | 9g |
| MFR Part No. | 7860429 |
| Clearance Angle | 5\u00b0 |
| Insert Thickness | 4.7625mm |
| Unit Measured | Metric |
| Insert Size | VB1604 |
| Insert Mounting Style | Screw/Clamp |
| Coating Process Type | CVD |
| CoroPak | 21.1 |
| Chipbreaker | PF |
| Corner Radius | 0.3969mm |
| ISO Category | K | P |
| Wiper Edge Property | No |
| Inscribed Circle | 9.525mm |
| Shape | 35\u00b0 Diamond |
