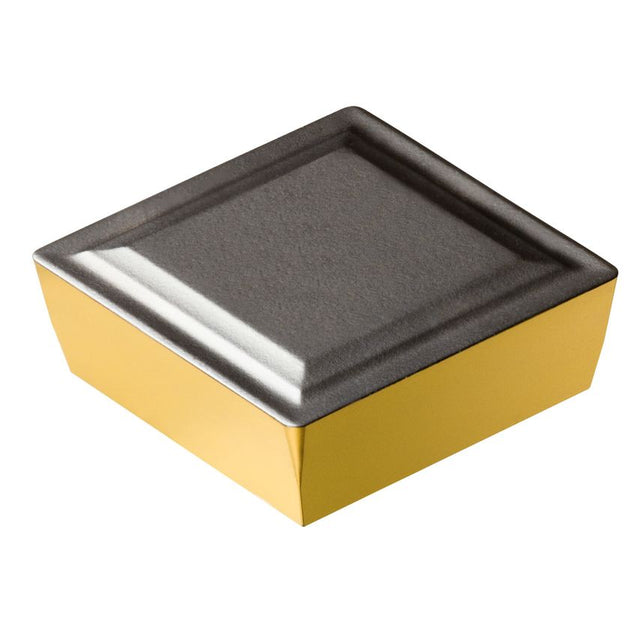

T-Max S insert for turning
| Product Type | Insert for Turning |
| Hand Preference | Neutral |
| Through Hole Function Property | Yes |
| Inscribed Circle | 9.525mm |
| Insert Thickness | 3.175mm |
| Insert Size | SP0903 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 8019548 |
| Cutting Edge Count | 4 |
| ISO Category | K | P |
| Unit Measured | Metric |
| Shape | Square |
| Inscribed Circle Diameter | 9.53mm |
| Insert Shape | Square |
| Grade | 4425 |
| Wiper Edge Property | No |
| CoroPak | 21.2 |
| Cutting Direction | Neutral |
| Coating Process Type | CVD |
| Manufacturer Grade | 4425 |
| Insert Mounting Style | Clamp |
| Weight | 4g |
| Insert Size/Shape | SP0903 |
| Coating Type | TiCN+Al2O3+TiN |
| Clearance Angle Major | 11\u00b0 |
| Insert Style | SPMR |
| Thickness | 3.17mm |
| Clearance Angle | 11\u00b0 |
| Corner Radius | 0.3969mm |
