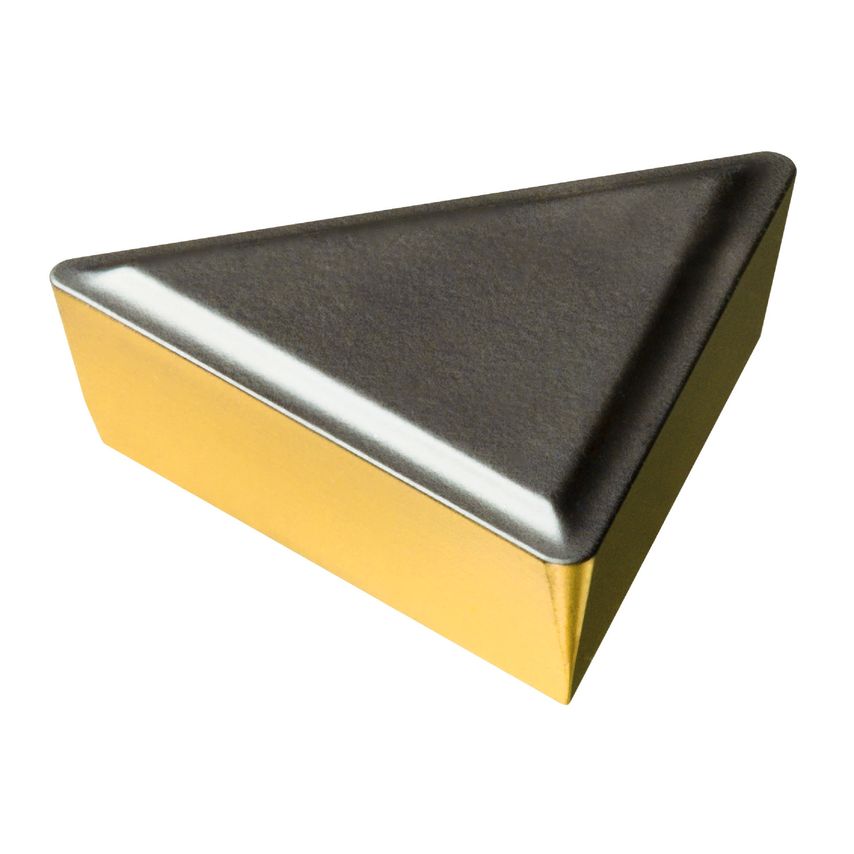

T-Max S insert for turning
| Thickness | 2.38mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Style | TPMR |
| Inscribed Circle Diameter | 5.56mm |
| Insert Shape | Triangle |
| Product Type | Insert for Turning |
| Insert Size/Shape | TP0902 |
| Cutting Edge Count | 3 |
| Insert Size | TP0902 |
| MFR Part No. | 8019555 |
| ISO Category | K | P |
| Clearance Angle | 11\u00b0 |
| Clearance Angle Major | 11\u00b0 |
| Insert Thickness | 2.38125mm |
| Coating Process Type | CVD |
| Manufacturer Grade | 4425 |
| Insert Mounting Style | Clamp |
| Coating Type | TiCN+Al2O3+TiN |
| Shape | Triangle |
| Through Hole Function Property | Yes |
| Wiper Edge Property | No |
| Weight | 1g |
| Corner Radius | 0.7938mm |
| Grade | 4425 |
| Hand Preference | Neutral |
| Unit Measured | Metric |
| Inscribed Circle | 5.55625mm |
| CoroPak | 21.2 |
