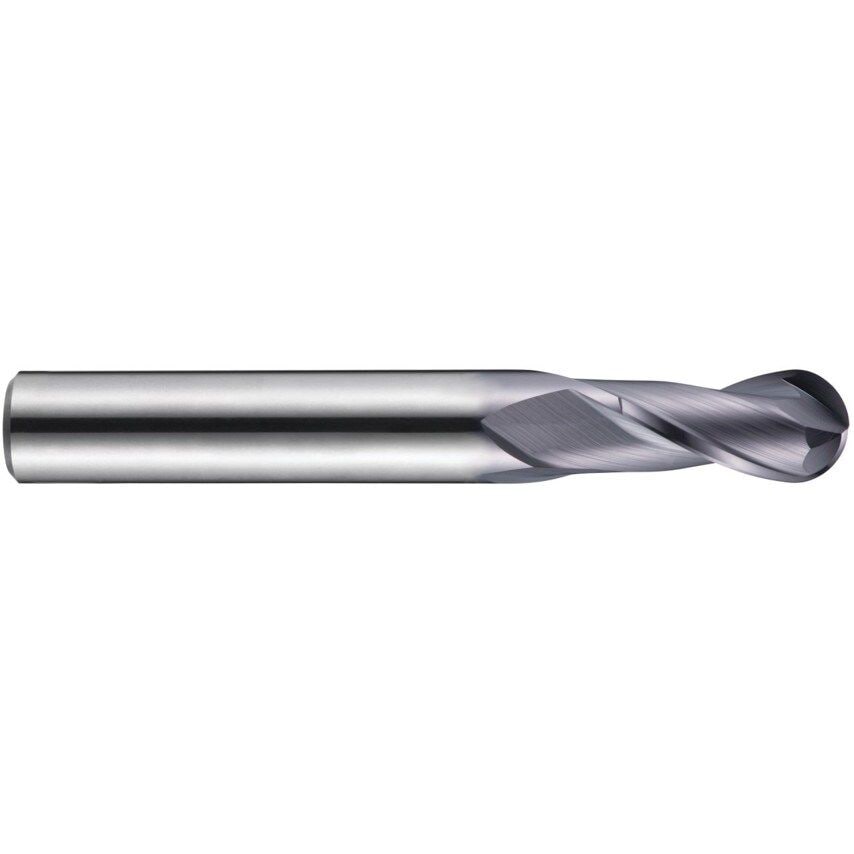

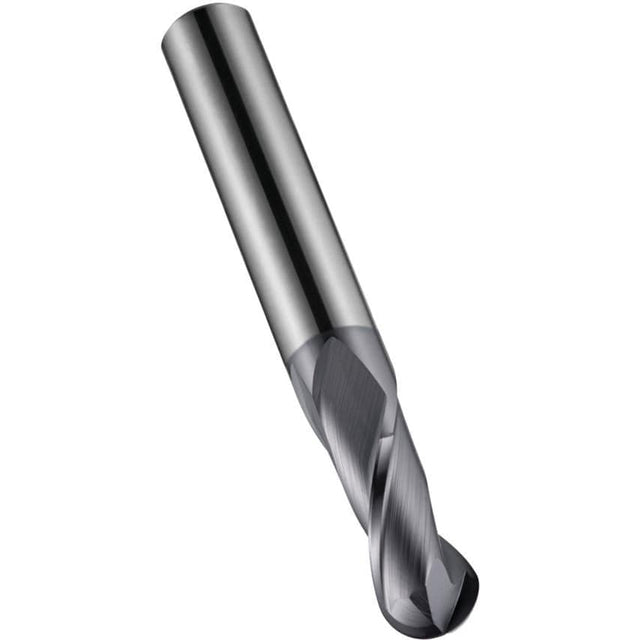

Short series ball-nose end mill with 2 flutes
| Milling Application | Ramping | Slotting |
| ISO Category | S |
| Standards | DORMER |
| Cutter Diameter | 6mm |
| Number of Flutes | 2 |
| Shank Diameter | 6mm |
| Series | S501 |
| Cutter Style | Ball Nose |
| Unit of Measurement | Metric |
| Finish/Coating | X-CEED |
| Finish | X-CEED |
| Length of Cut | Short |
| Shank Type | DIN 6535 HA |
| Material | HM |
| End Mill Type | Slot Drill |
| Length Type | Short |
| Helix Angle | 30\u00b0 |
| Shank | Cylindrical shank DIN 6535 HA |
| Coolant Delivery | External |
| MFR Part No. | S5016.0 |
| System of Measurement | Metric |
| Corner Radius | 3mm |
| Flute Length | 10mm |
| Standards Met | Dormer |
| Material Grade | HM |
| Overall Length | 57mm |
| Flute Type | Helical |
