TX Drills Close Tolerance Holes Through Coolant

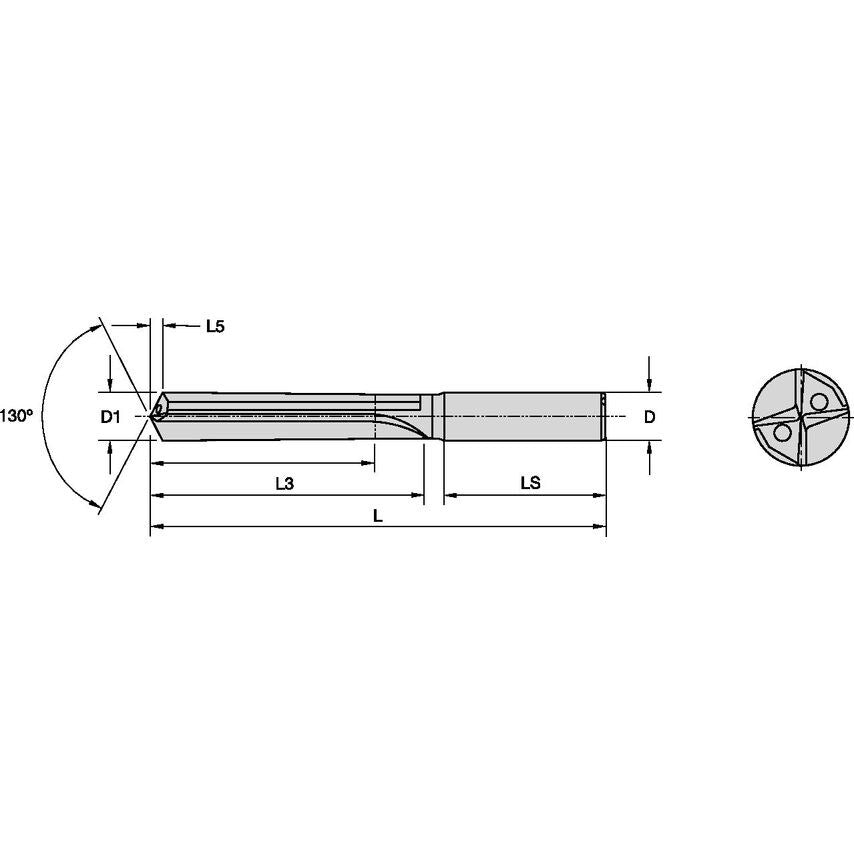

Solid Carbide Drills
| Overall Length | 118mm | 118.0000mm |
| Functional Length | 115.3190mm |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 1198656 |
| Drill Diameter | 11.5000mm |
| Gage Length | 73mm |
| Assembly Length | 70.319mm |
| Flute Length | 71mm | 71.0000mm |
| Primary Material | Cast Iron |
| Hand Preference | Right |
| Drill Depth | 56mm | 56.0000mm |
| Helix Angle | 0.000 |
| Material | Carbide |
| Clamping Length | 45mm |
| Coolant Supplied | Yes |
| Number of Flutes | 2 |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Unit Measured | Metric |
| Drill Point | 2.681mm |
| Coolant Delivery | Off-center Axial Coolant |
| Flute Construction | Straight Flute |
| Shank Length | 45.0000mm |
| Drill Diameter Tolerance | 0.001000 to 0.012000mm |
