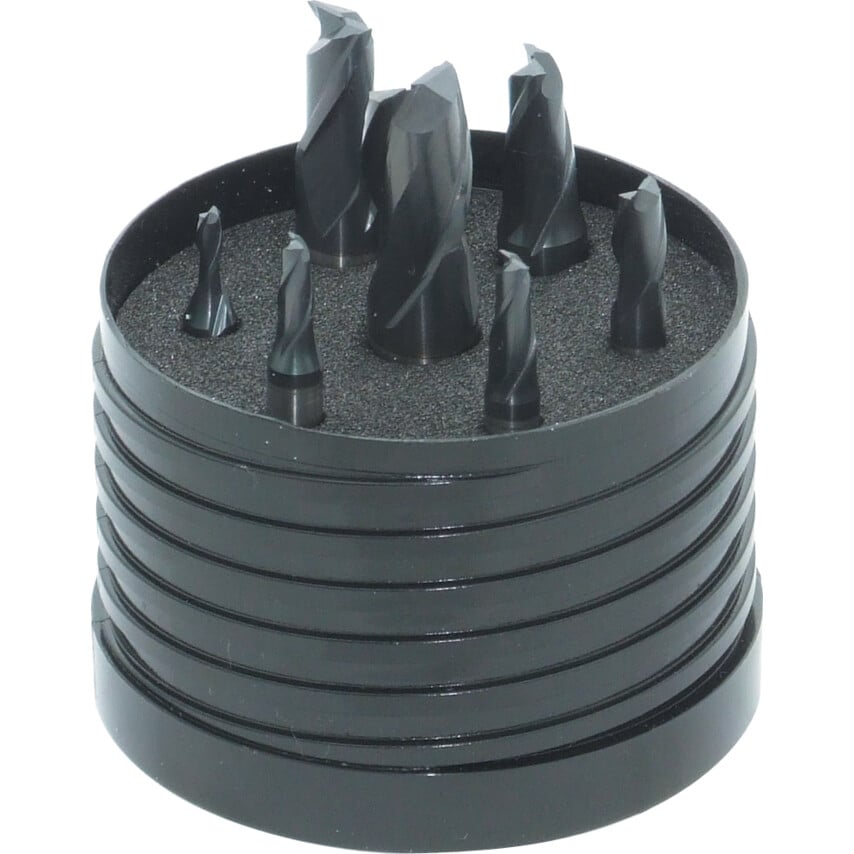

7 Piece Set
Centre cutting.
To Manufacturers Standards.

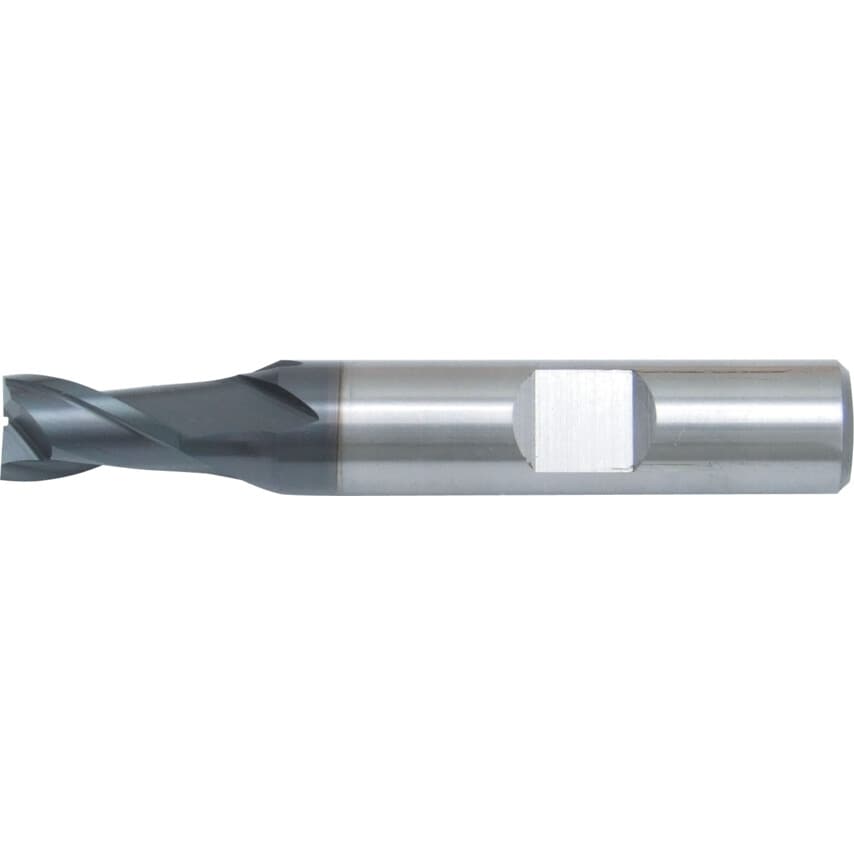

Weldon shank to DIN 1835B.
Shank diameter to h6.
Dimensions to DIN 844.
Contents: 3, 4, 5, 6, 8, 10 and 12mm.
| Coolant Delivery | External |
| Series | Series 91 |
| Shank Type | Weldon Flat |
| Overall Length | 49 | 51 | (2) 52 | 61 | 63 | 73 |
| End Mill Type | (7) Slot Drill |
| Material | Powdered Metal High Speed Steel |
| Milling Cutter Type | Slot Drill |
| Shank Diameter | (4) 6 | (2) 10 | 16 |
| Maximum Diameter | 12mm |
| System of Measurement | Metric |
| Finish/Coating | Peak Power |
| Flute Length | 5 | 7 | 11 | 13 | 16 |
| Cutter Diameter | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| Plunge Type | Centre Cutting |
| Flute Type | Straight |
| Material Grade | M35 |
| Number of Pieces | 7 |
| Number of Flutes | 2 |
