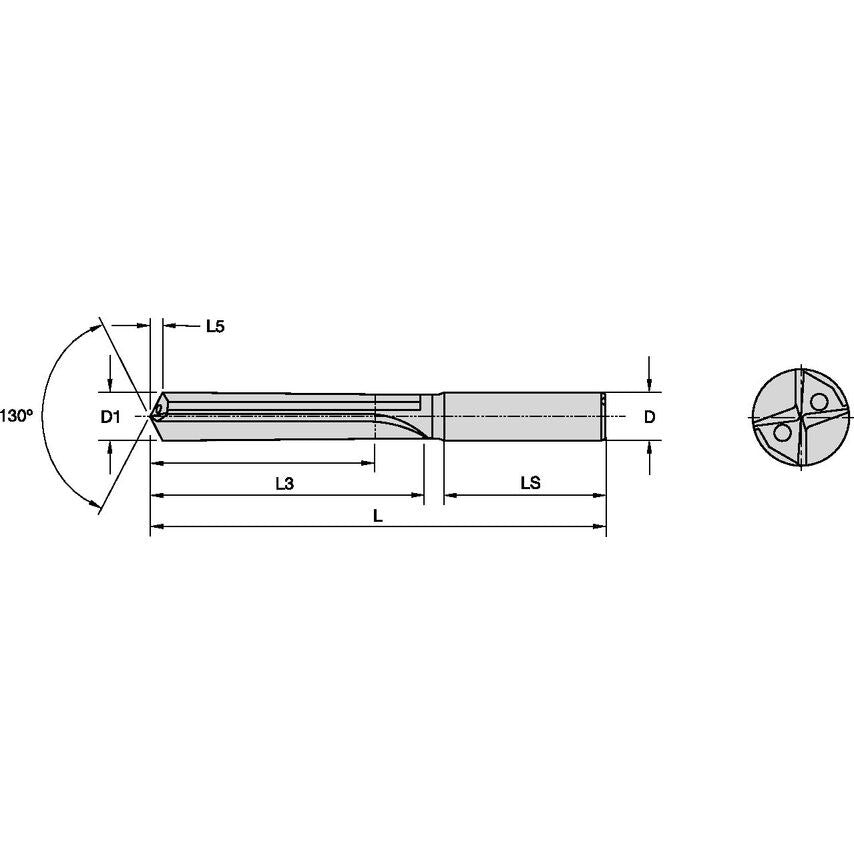

TX Drills Close Tolerance Holes Through Coolant
Solid Carbide Drills
| Drill Depth | 98mm | 98.0000mm |
| Flute Construction | Straight Flute |
| Shank Length | 56.0000mm |
| Unit Measured | Metric |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
| Flute Length | 126mm | 126.0000mm |
| Drill Diameter | 23.0000mm |
| Drill Point | 5.363mm |
| Coolant Delivery | Off-center Axial Coolant |
| Gage Length | 128mm |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | 0.002000 to 0.015000mm |
| Functional Length | 178.6370mm |
| Adapter Style | Straight-Cylindrical |
| Material | Carbide |
| Assembly Length | 122.637mm |
| Coolant Supplied | Yes |
| Hand Preference | Right |
| Primary Material | Cast Iron |
| Overall Length | 184mm | 184.0000mm |
| Helix Angle | 0.000 |
| Clamping Length | 56mm |
| Adapter / Shank / Bore Diameter | 25.0000mm |
| MFR Part No. | 1198716 |
