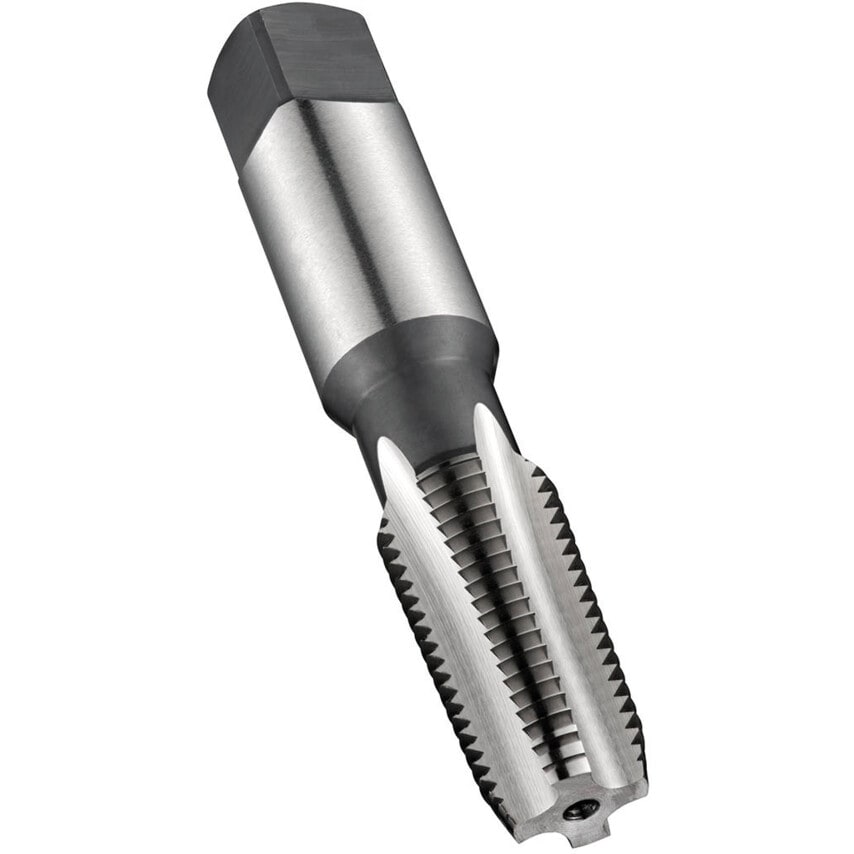

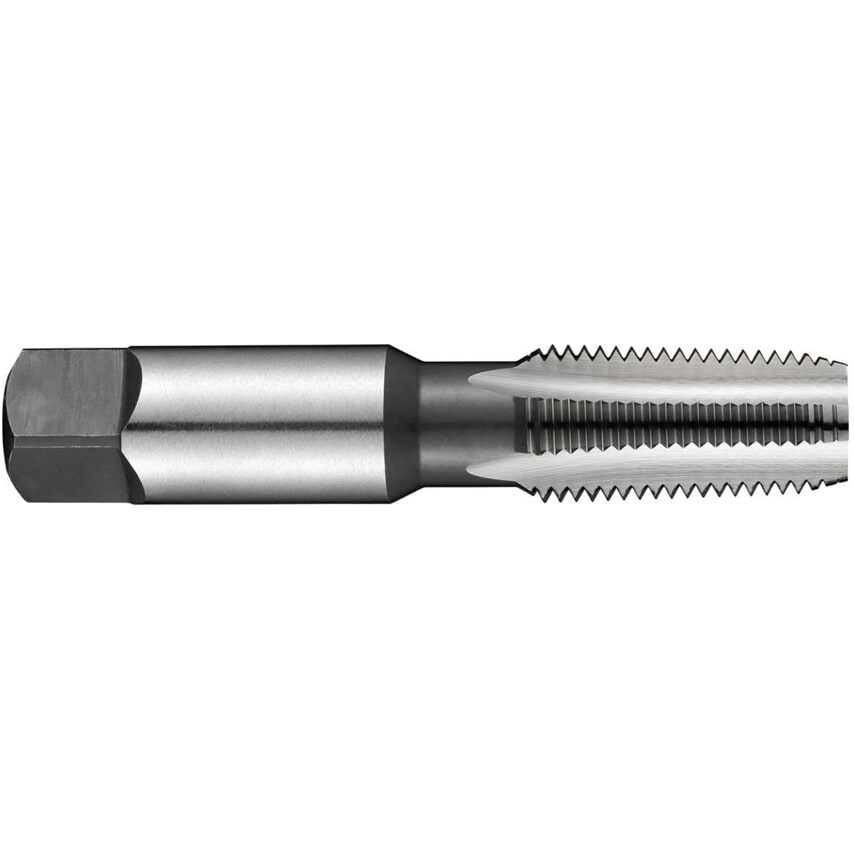

Series E710 HSS Straight Flute Taper Tap - NPT
Medium hook for multi-material tapping. Generally
used for pipe fittings and couplings in most
ferrous and non-ferrous materials. The nominal size of
a pipe tap is that of the pipe fitting to be tapped and
not the actual size of the tap. NPT threads require the use
of a 'sealant' such as teflon tape or pipe compound to
ensure a tight joint
Manufactured to ANSIB94.9
| Square Width | 8.3mm |
| Number of Flutes | 4 |
| Shank Diameter | 11.1mm |
| Tap Type | Straight Flute |
| Pitch | 27 |
| MFR Part No. | E7101/8 |
| Thread Size | 1/8in |
| Series | E710 |
| Chamfer | Plug |
| Thread Standard | NPT |
| Dimensions Standard | ANSI 94.9 |
| Class of Fit | Normal |
| ISO Category | K | N | P |
| Overall Length | 70.0mm |
| Material | HSS |
| Finish/Coating | Bright |
| Thread Length | 19.0mm |
| Teeth per Inch | 27 |
| Thread Direction | Right Hand |
