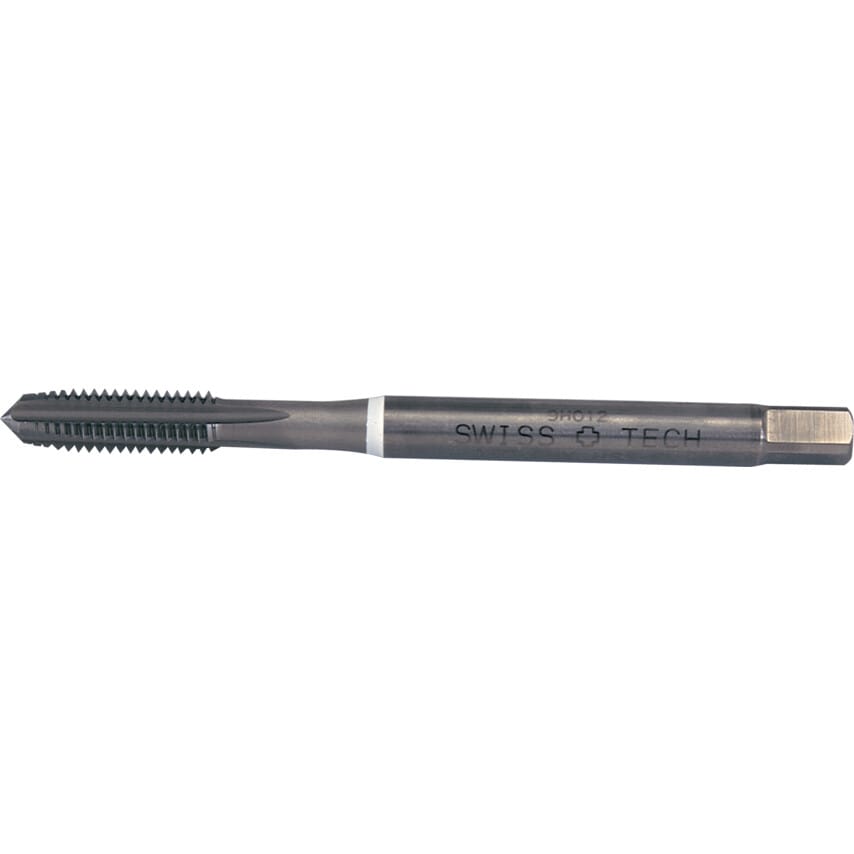

Straight Flute - ISO Metric Coarse
HSS-EV Nitride Finish. For through holes. Taper lead to DIN form D (taper) (3.5 x P to 5 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.
| Lead | Taper |
| Finish/Coating | Nitride |
| Class of Fit | 6HX |
| Tap Type | Straight Flute |
| Dimensions Standard | DIN 371 |
| Material Grade | M35 |
| Material | Vanadium High Speed Steel |
| Square Width | 4.9mm |
| Overall Length | 70mm |
| Pitch | 0.8 |
| Coolant Delivery | External |
| Material Application | Cast Iron |
| Shank Diameter | 6.0mm |
| Thread Size | M5 |
| Thread Length | 16.00mm |
| Ring Colour | White |
| Thread Direction | Right Hand |
| Thread Standard | Metric Coarse |
| Number of Flutes | 3 |
