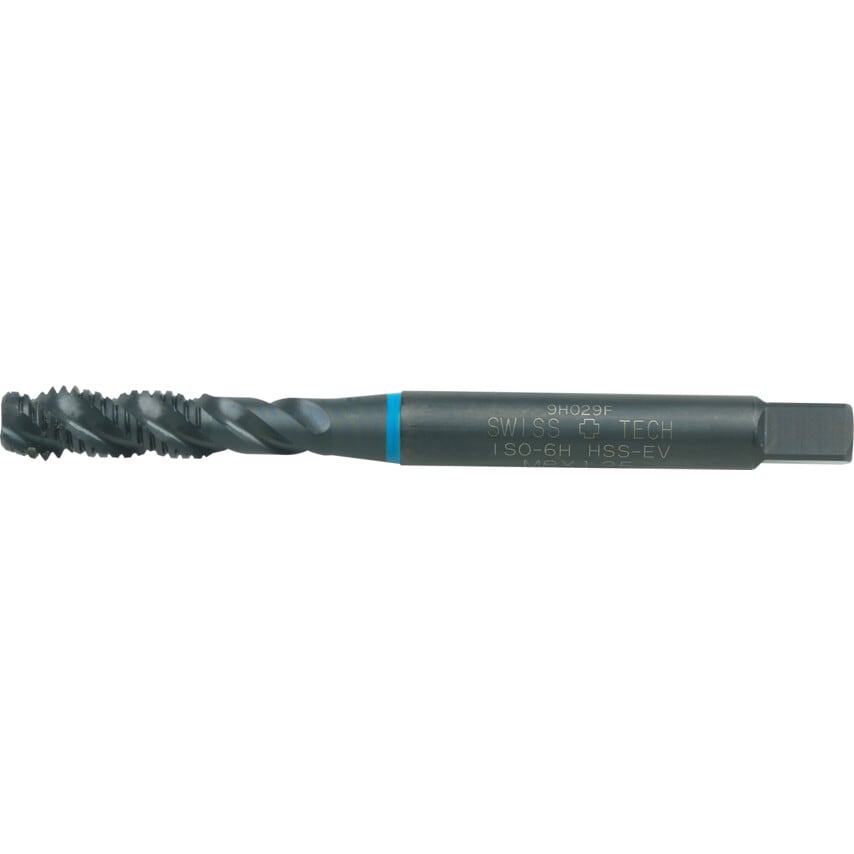

Spiral Flute (BLF) - 'Biteless Flat' ISO Metric Coarse
HSS-EV Oxidised Finish. For shorter blind holes. Taper lead to DIN form C (3 x P). Tapping tolerance to 6H. Manufactured to DIN 371/376.
'Biteless Flat' ISO Metric Coarse
Helix angle 45.
| Pitch | 1 |
| Overall Length | 80mm |
| Finish/Coating | Steam Tempered |
| Tapping Depth | 15mm |
| Material | Vanadium High Speed Steel |
| Coolant Delivery | External |
| Class of Fit | 6H |
| Thread Standard | Metric Coarse |
| Threading Tap Type | Machine Tap |
| Helix Angle | 45 |
| Thread Direction | Right Hand |
| Thread Length | 11mm |
| Ring Colour | Blue |
| Tap Type | Spiral Flute |
| Shank Diameter | 6mm |
| Number of Flutes | 3 |
| Thread Size | M6 |
| Dimensions Standard | DIN 371 |
| Material Grade | M35 |
| Square Width | 4.9mm |
| Material Application | Stainless Steels |
