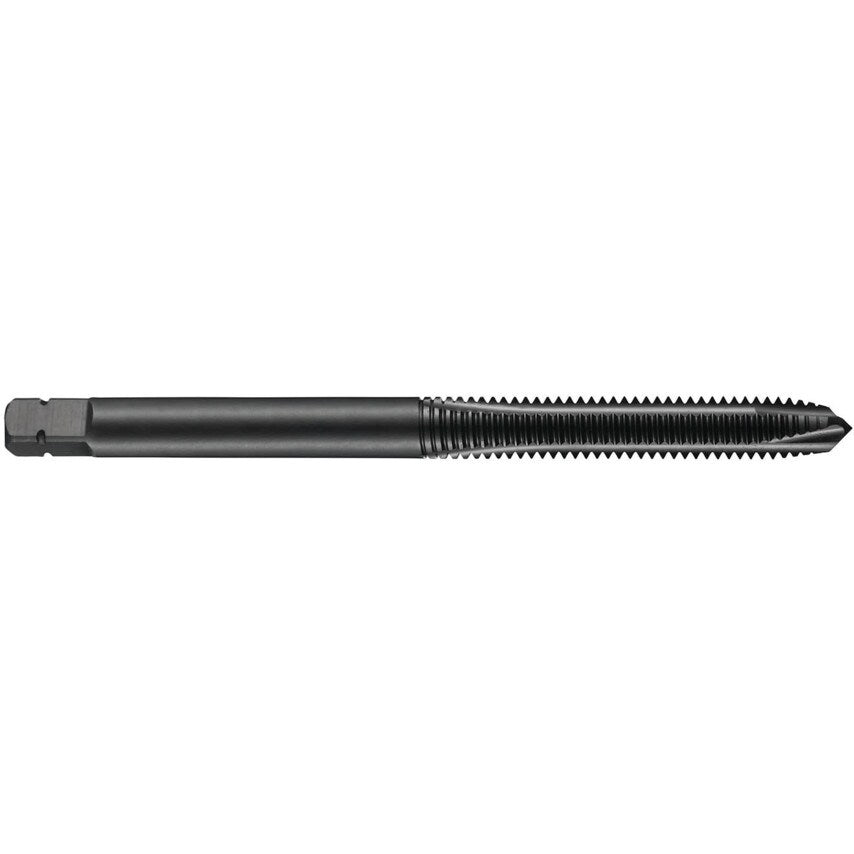

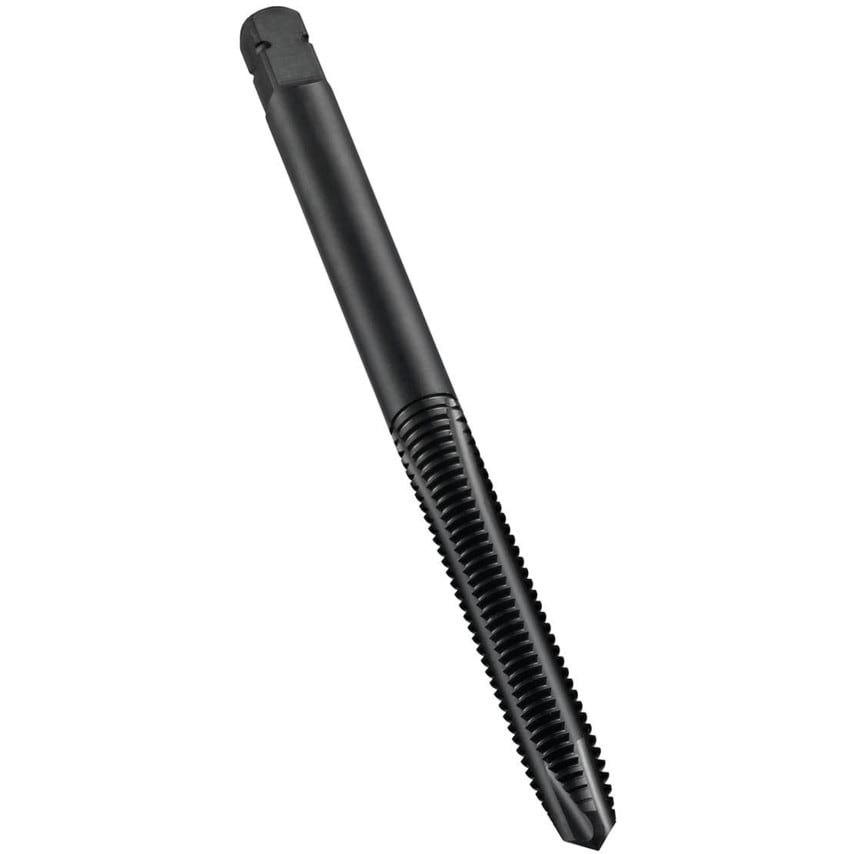

Series E001 HSS-E Spiral Point Taps - Metric
Steam Tempered Metric
Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF and (G)BSP.
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.
Steam tempered suitable for steel, stainless steel and cast iron.
| Finish/Coating | Steam Tempered |
| MFR Part No. | E001M20 |
| Product Type | Machine Taps |
| Number of Flutes | 4 |
| Pitch | 2.50 |
| Square Width | 11.2mm |
| Shank Diameter | 14.0mm |
| Material Grade | M35 |
| Thread Standard | Metric Coarse |
| Tap Type | Spiral Point |
| Thread Length | 29.0mm |
| Material | Cobalt High Speed Steel |
| Thread Direction | Right Hand |
| Overall Length | 112.0mm |
| Series | E001 |
| Thread Size | M20 |
| Class of Fit | 6H |
| Dimensions Standard | ISO 529 |
