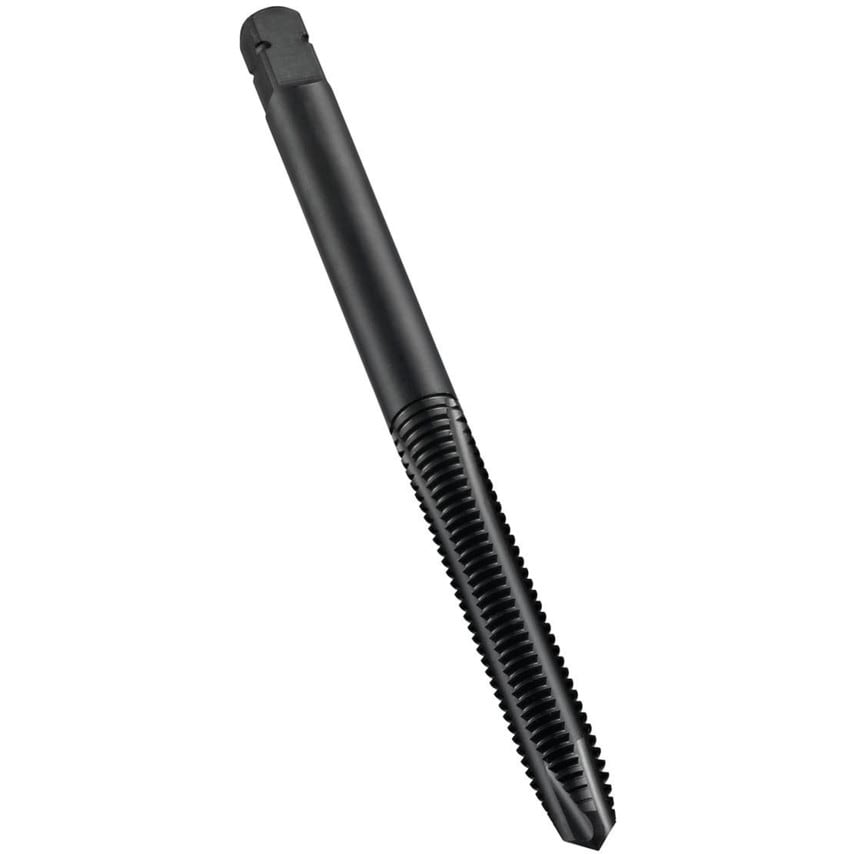

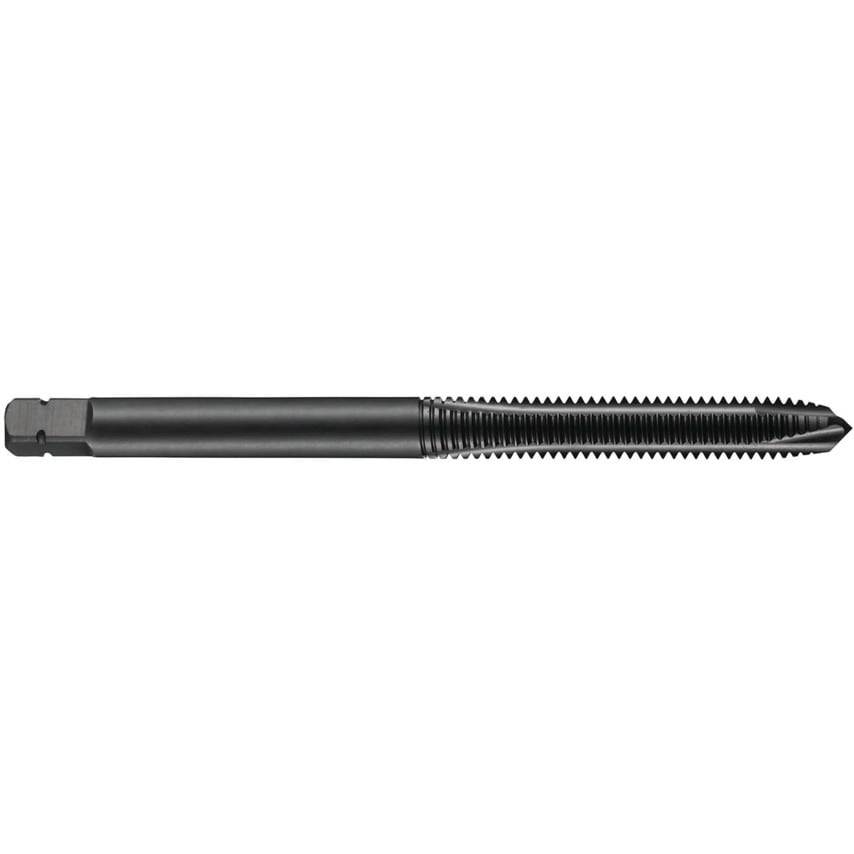

Series E001 HSS-E Spiral Point Taps - Metric
Steam Tempered Metric
Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF and (G)BSP.
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.
Steam tempered suitable for steel, stainless steel and cast iron.
| Thread Length | 15.0mm |
| Shank Diameter | 3.15mm |
| Overall Length | 48.0mm |
| Thread Size | M3 |
| Number of Flutes | 3 |
| Tap Type | Spiral Point |
| Class of Fit | 6H |
| Material Grade | M35 |
| Thread Direction | Right Hand |
| Thread Standard | Metric Coarse |
| Pitch | 0.50 |
| Square Width | 2.5mm |
| Tapping Depth | 15.0mm |
| Product Type | Taps |
| Material | Cobalt High Speed Steel |
| Finish/Coating | Steam Tempered |
| Dimensions Standard | ISO 529 |
| MFR Part No. | E001M3 |
| Series | E001 |
