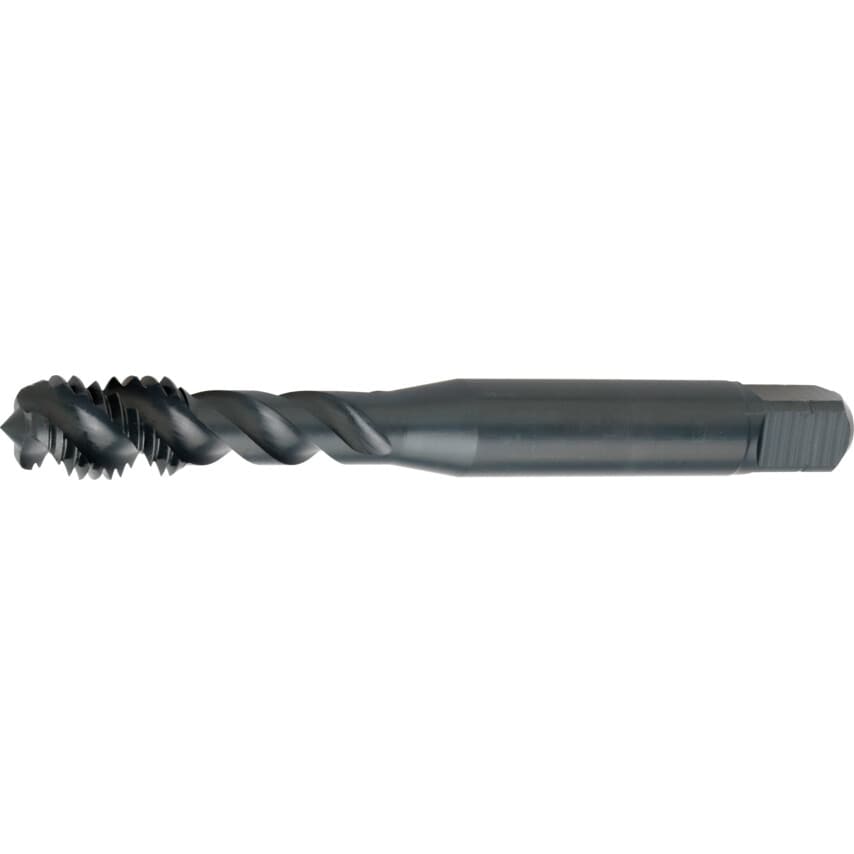

Series E003 HSS-E Spiral Flute Taps offer excellent performance in a wide range of materials thanks to their high speed steel and cobalt construction with steam tempered coating.
Feratures and Benefits
Multi-application machine taps offering superb performance in a wide range of materials.
Steam tempered for excellent heat and wear resistance
Spiral flute (for blind holes) geometries
Typical Applications
Steel
Stainless Steel
Cast Iron
Notes
Metric: M2 - M24
Standards
ISO 529
| MFR Part No. | E003M4 |
| Finish/Coating | Steam Tempered |
| Thread Direction | Right Hand |
| Class of Fit | 6H |
| Square Width | 3.2mm |
| Overall Length | 53.0mm |
| Thread Size | M4 |
| Thread Standard | Metric Coarse |
| Material Grade | M35 |
| Number of Flutes | 3 |
| Product Type | Machine Taps |
| Tap Type | Spiral Flute |
| Series | E003 |
| Shank Diameter | 4.0mm |
| Tapping Depth | 19.0mm |
| Pitch | 0.70 |
| Material | Cobalt High Speed Steel |
| Thread Length | 7.0mm |
| Dimensions Standard | ISO 529 |
