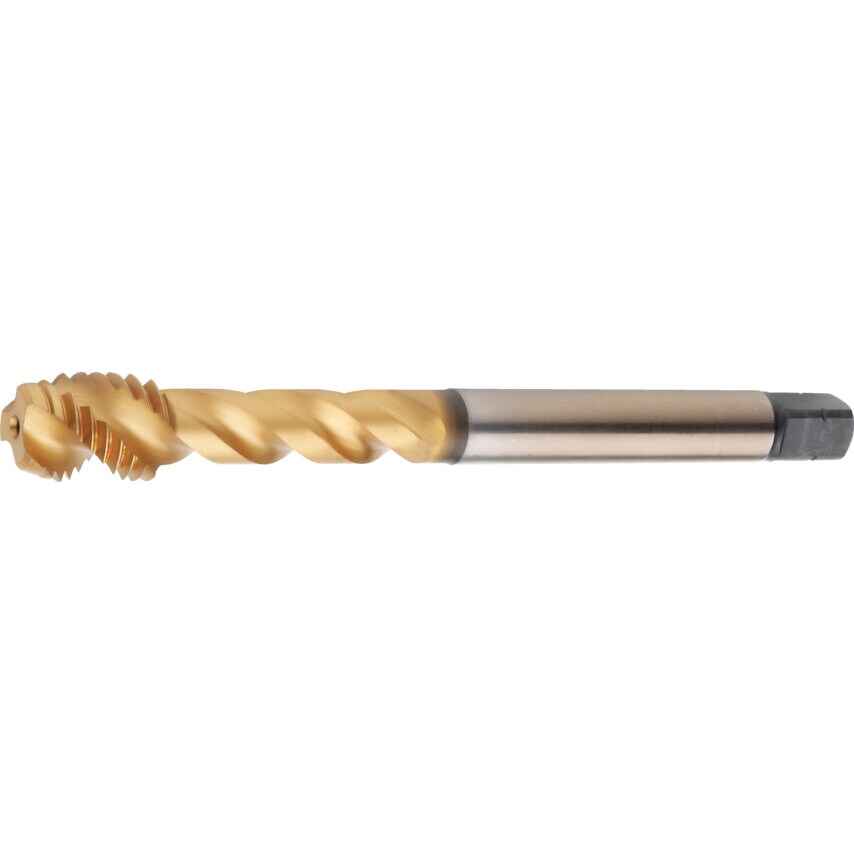

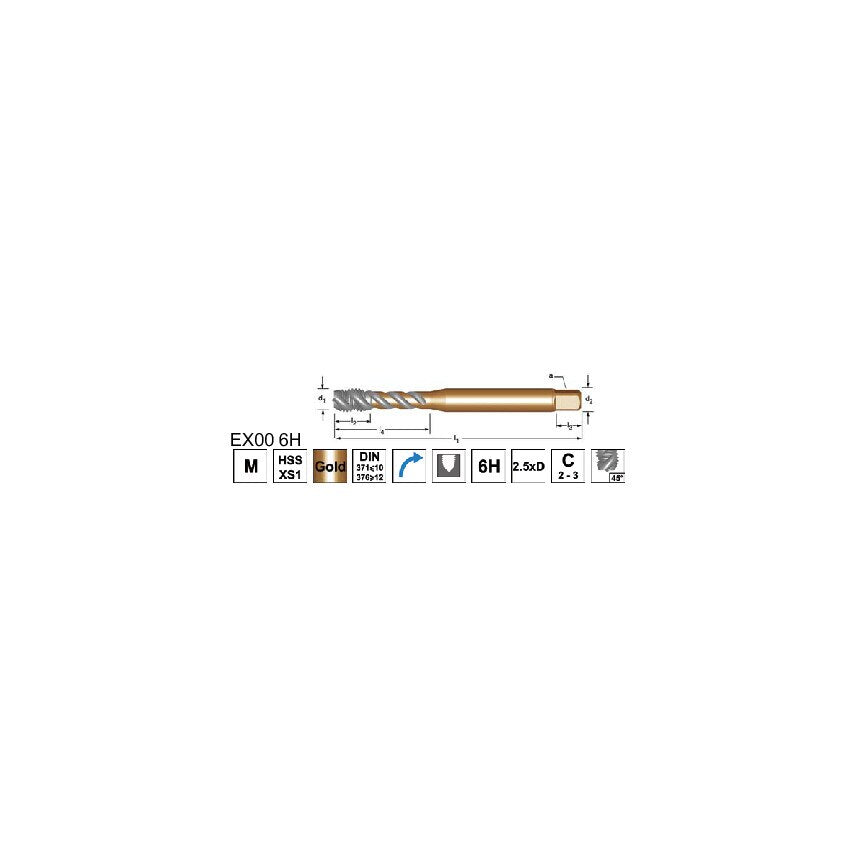

Series EX00 HSS-Co Spiral Flute Taps - TiN Coated - Metric
Multi-application machine taps offering superb erformance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF and (G)BSP
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.
EX00 TiN Metric: M3 - M24.
Titanium Nitride Suitable for: Steel, Stainless,
Cast Iron, Titanium, Nickel, Copper and Aluminium
| Material | Cobalt High Speed Steel |
| Square Width | 12.0mm |
| Class of Fit | 6H |
| Pitch | 2.50 |
| Shank Diameter | 16.0mm |
| Finish/Coating | TiN |
| Dimensions Standard | DIN 376 |
| Tap Type | Spiral Flute |
| Overall Length | 140.0mm |
| Material Grade | M35 |
| Thread Standard | Metric Coarse |
| MFR Part No. | EX00TINM20 |
| Number of Flutes | 4 |
| Series | EX00TIN |
| Thread Size | M20 |
| Thread Direction | Right Hand |
| Product Type | Machine Taps |
| Thread Length | 25.0mm |
