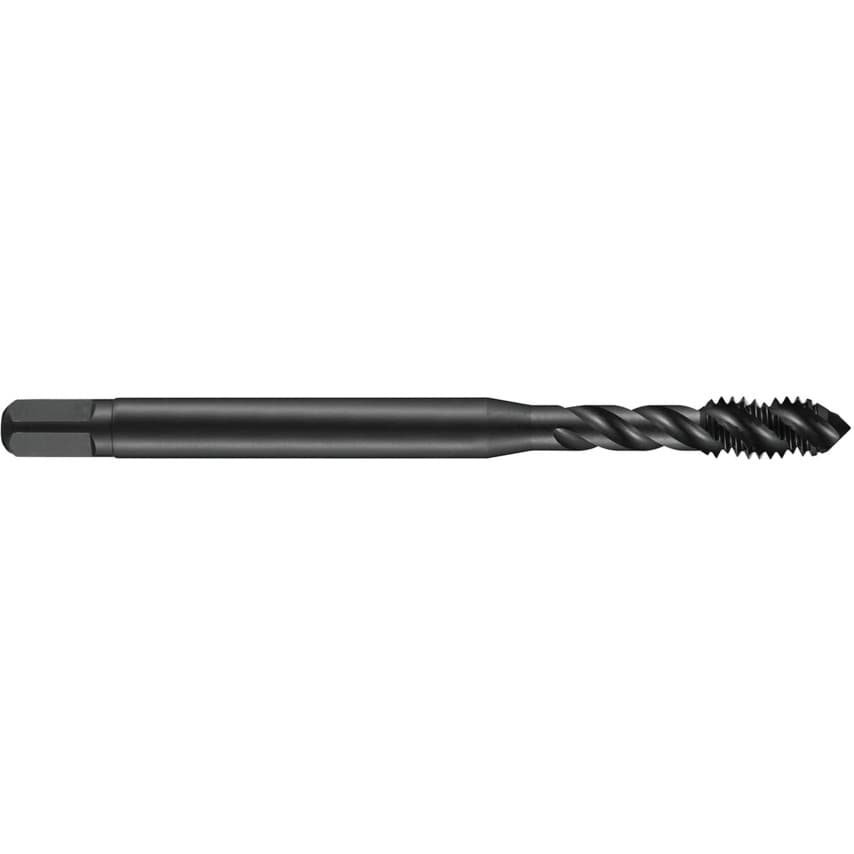

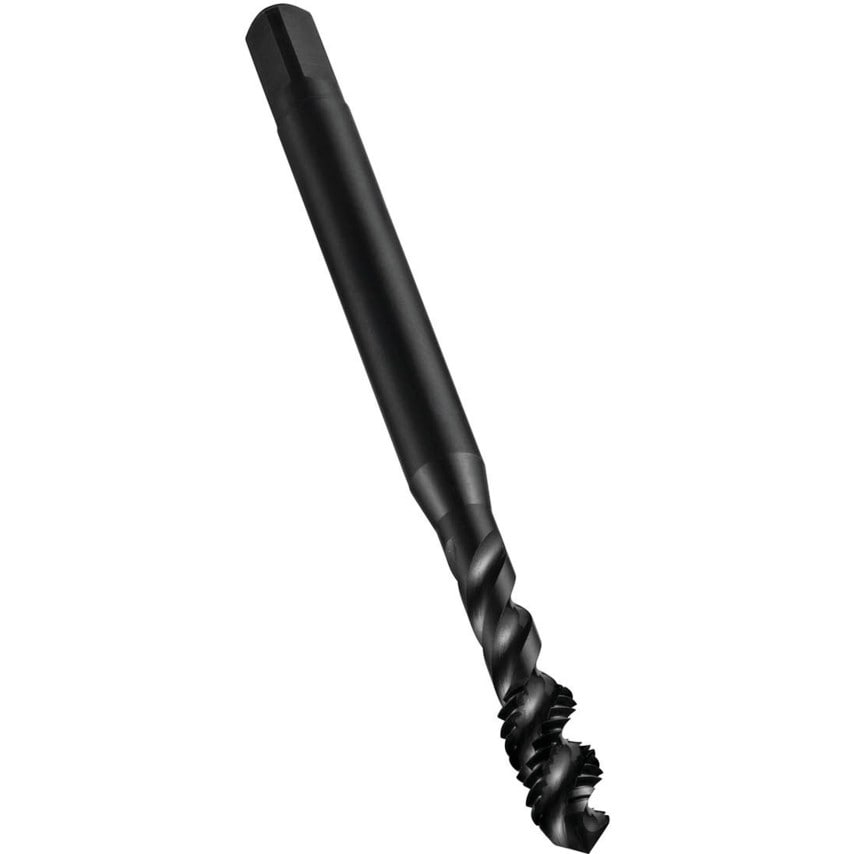

Series E023 HSS-E Spiral Flute Taps - UNC
Dormer MTT-X Series taps are manufactured from HSS-X1 Steel with a bright finish, they are right hand cutting.
Premium substrate with Steam Oxide surface treatment
reduces wear and prevents chip welding in abrasive or harder
ferrous materials
EO23 Steam Tempered UNC:
No.2 - 12, 1/4 - 1 inch
| Thread Direction | Right Hand |
| Finish/Coating | Steam Tempered |
| Pitch | 40.00 |
| Square Width | 2.5mm |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| MFR Part No. | E0234-40 |
| Shank Diameter | 3.15mm |
| Material | Cobalt High Speed Steel |
| Tapping Depth | 14.0mm |
| Dimensions Standard | ISO 529 |
| Tap Type | Straight Flute |
| Thread Standard | UNC |
| Series | E023 |
| Material Grade | M35 |
| Thread Length | 6.0mm |
| Thread Size | No.4 |
| Product Type | Machine Taps |
| Overall Length | 48.0mm |
| Teeth per Inch | 40 |
