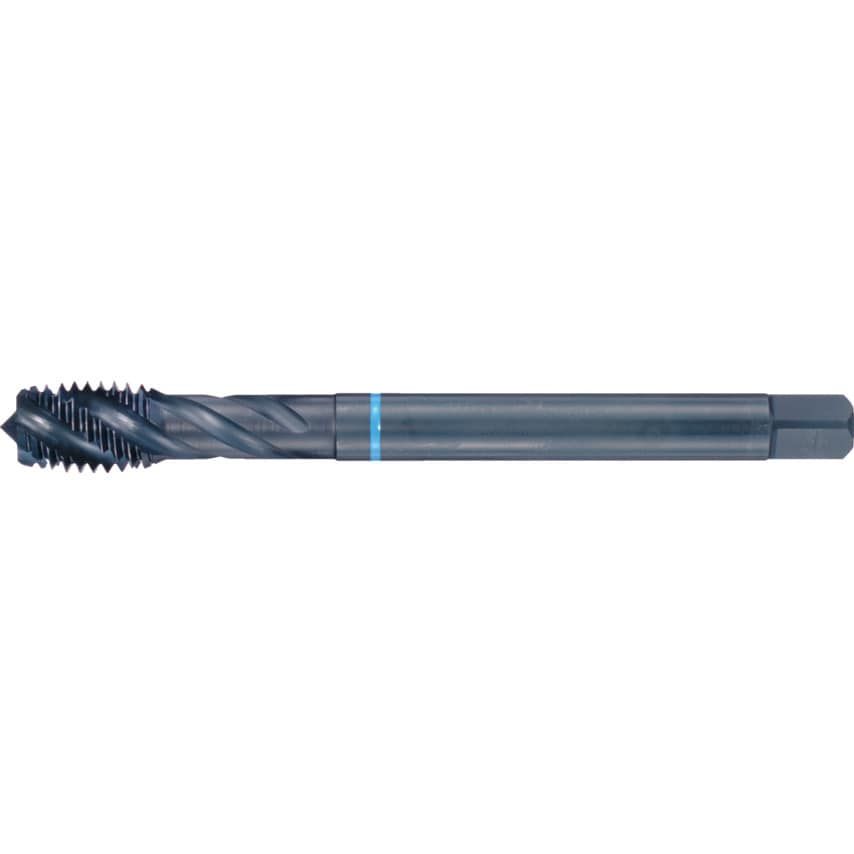

Size range: M3 - M30. Tapping tolerance: 6H.
| Thread Length | 25mm |
| Tap Type | Spiral Flute |
| Thread Form | M - Metric coarse |
| Cutting Direction | Right |
| Flute Geometry (FDC) | Spiral Flute Geometry |
| Lead | C 2-3 |
| Overall Length | 125mm |
| Standards | DIN 376 |
| Thread Size | M18 |
| Thread Standard | Metric Coarse |
| Tap Application | Blind Hole |
| MFR Part No. | E238M18 |
| Applications | M - Stainless steel |
| Class of Fit | 6H |
| Number of Flutes | 4 |
| Finish/Coating | Steam Tempered |
| Tap Chamfer Style | C 2 - 3 |
| Material | HSS-E-PM |
| Application | Stainless Steels |
| Shank | Cylindrical Shank with Square |
| Square Width | 11.2mm |
| Shank Diameter | 14mm |
| Pitch | 2.5mm |
| Finish | Steam Tempered |
| Product Type | Spiral Flute Taps |
| Material Grade | M35 |
| Product Series | E238 |
| Dimensions Standard | DIN 376 |
| Unit of Measurement | Metric |
| Thread Direction | Right Hnd |
| Series | E238 |
