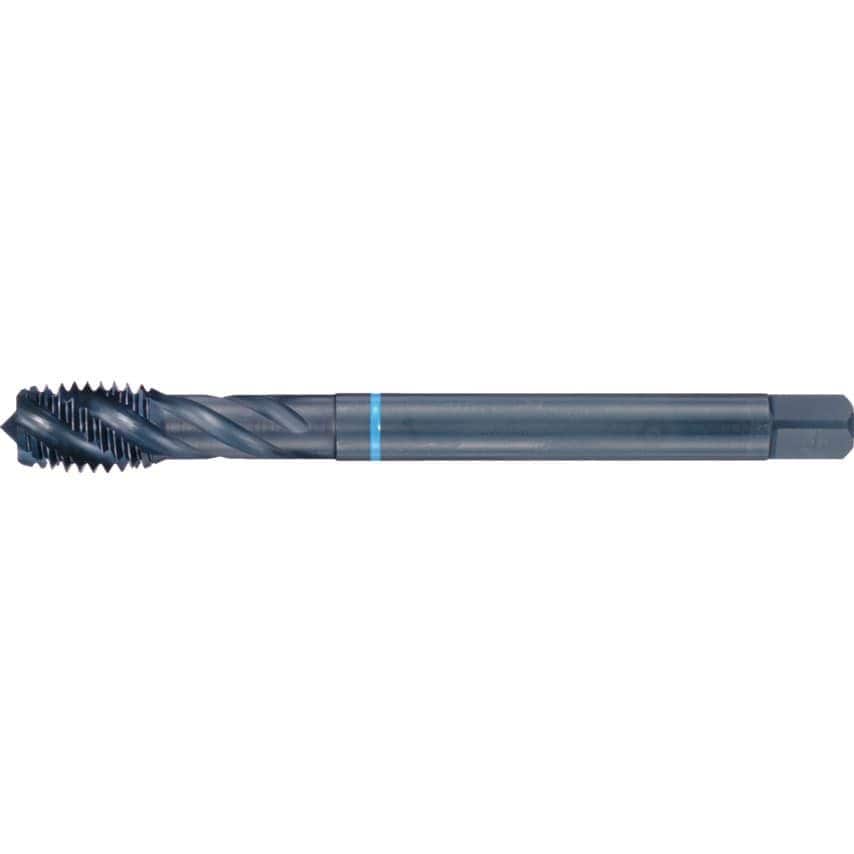

Size range: M3 - M30. Tapping tolerance: 6H.
| Thread Standard | Metric Coarse |
| Thread Direction | Right Hnd |
| Standards | DIN 371 |
| Lead | C 2-3 |
| Dimensions Standard | DIN 371 |
| Thread Size | M4 |
| Flute Geometry (FDC) | Spiral Flute Geometry |
| Thread Length | 7mm |
| Series | E238 |
| Application | Stainless Steels |
| Tap Chamfer Style | C 2 - 3 |
| Number of Flutes | 3 |
| Product Type | Spiral Flute Taps |
| Overall Length | 63mm |
| Shank | Cylindrical Shank with Square |
| Unit of Measurement | Metric |
| Product Series | E238 |
| Pitch | 0.7mm |
| Class of Fit | 6H |
| Finish/Coating | Steam Tempered |
| Material | HSS-E-PM |
| Applications | M - Stainless steel |
| Cutting Direction | Right |
| Tapping Depth | 21mm |
| Finish | Steam Tempered |
| Thread Form | M - Metric coarse |
| MFR Part No. | E238M4 |
| Material Grade | M35 |
| Tap Type | Spiral Flute |
| Tap Application | Blind Hole |
| Square Width | 3.55mm |
| Shank Diameter | 4.5mm |
